LNP-C501G-SFP-bt | 5-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | 4*10/100/1000TX (90W/Port) and 1*100/1000 SFP Slot | Antaira

5-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | 4*10/100/1000TX (90W/Port) and 1*100/1000 SFP Slot

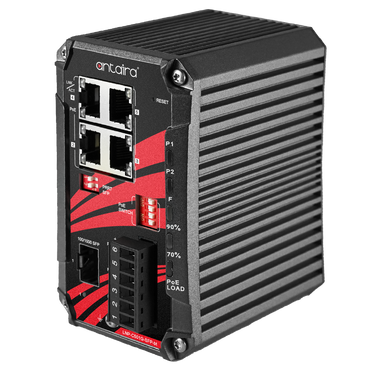

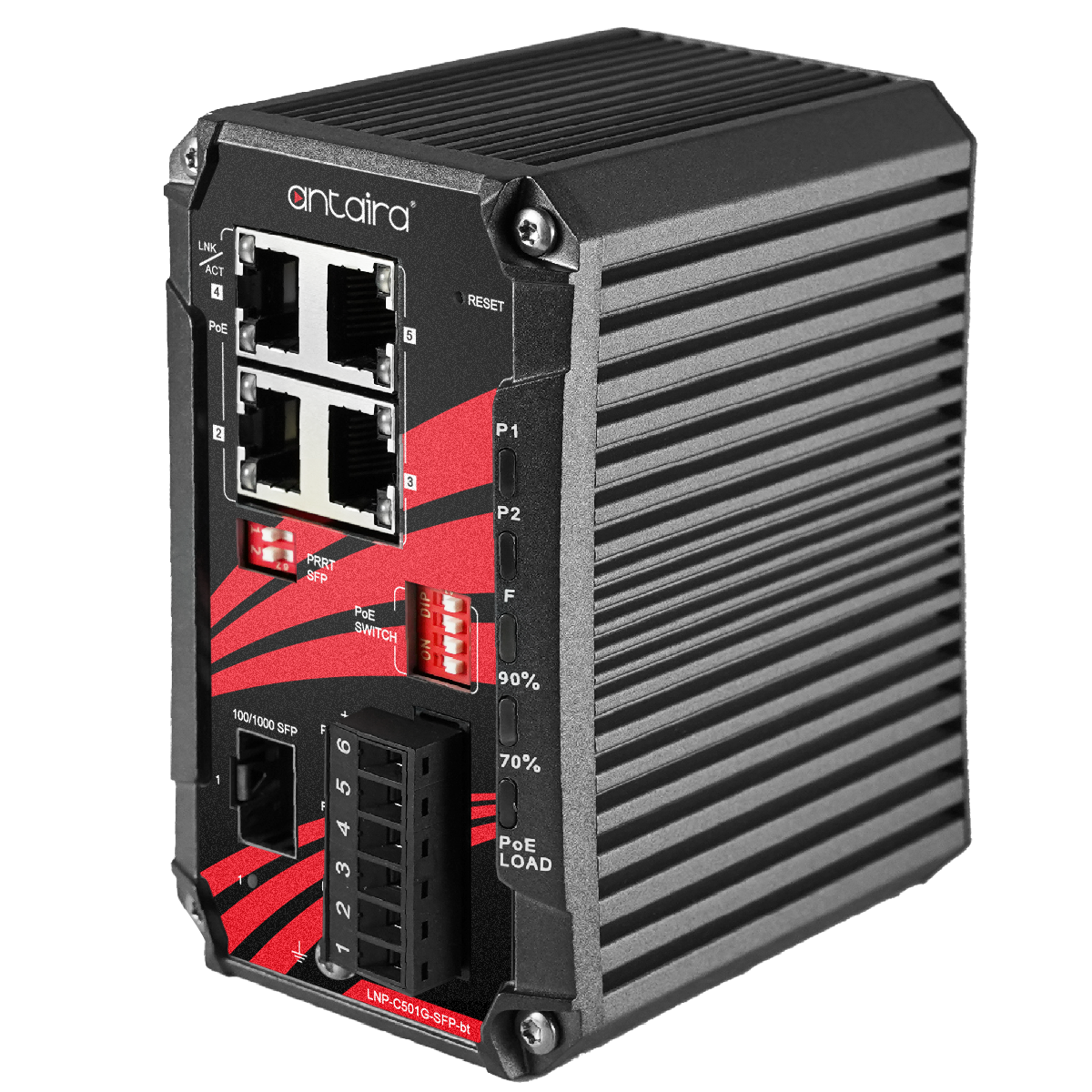

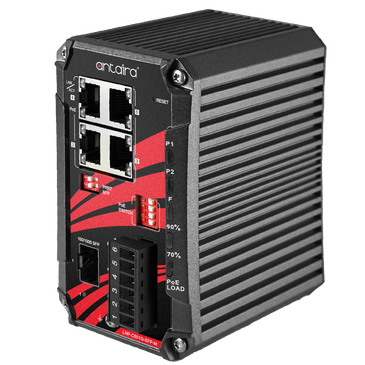

Antaira Technologies’ LNP-C501G-SFP-bt is a 5-port industrial compact Gigabit PoE++ unmanaged Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3bt for a maximum of 90W/port, and 1*100/1000 dual rate SFP slot for fiber connection.The LNP-C501G-SFP-bt is IP40 rated and DIN-rail mountable. There are a standard temperature range (STD: -10°C to 65°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and any other outdoor or harsh environment.

Features

• Support 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*100/1000 SFP Slot
• Support PD Remote Rest Technology (PRRT)
• Adjustable SFP Speed with DIP-Switch Setting
• Store-and-Forward Switching Architecture
• Dual Power Input 48~55VDC in 6-Pin Terminal Block
• Support Power Inputs Reverse Polarity Protection
• IP40 Protection
• DIN-Rail or Wall Mountable
• Operating Temperature - STD: -10°C to 65°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• Dust cover set
• LNP-C501G-SFP-bt
• Quick Installation Guide
• Wall mounting bracket set with screws
