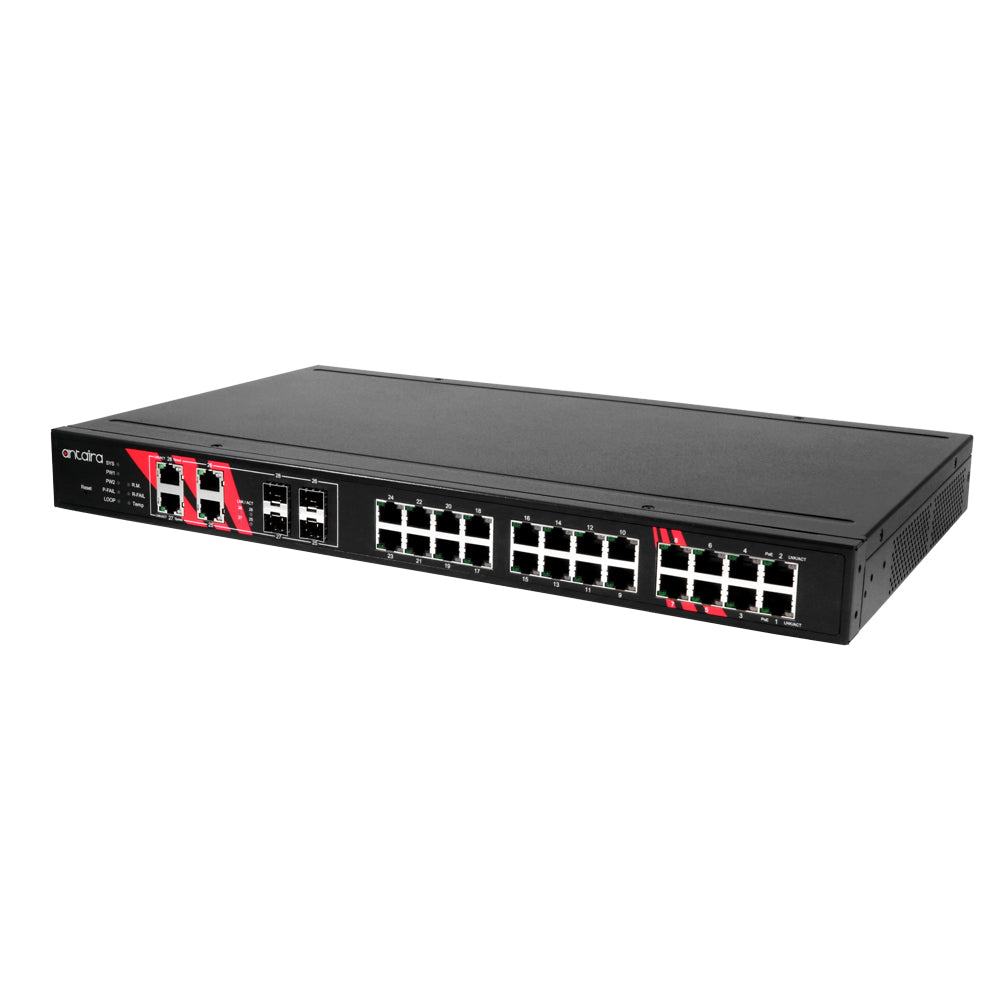

LNP-2804GN-SFP-T | 28-Port 1U 19" Rackmount Industrial Gigabit PoE+ Managed Ethernet Switch | w/24*10/100/1000Tx (PSE: 30W/port) + 4*GigE Combo Ports; EOT: -40~75C | Antaira
28-Port 1U 19" Rackmount Industrial Gigabit PoE+ Managed Ethernet Switch, w/24*10/100/1000Tx (PSE: 30W/port) + 4*GigE Combo Ports; EOT: -40~75C
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-2804GN-SFP-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-2804GN-SFP-T Documents
Overview
Details for LNP-2804GN-SFP-T
28-Port 1U 19" Rackmount Industrial Gigabit PoE+ Managed Ethernet Switch | w/24*10/100/1000Tx (PSE: 30W/port) + 4*GigE Combo Ports; EOT: -40~75C
Antaira Technologies’ LNP-2804GN-SFP-T is a 28-port industrial Gigabit PoE+ managed Ethernet switch embedded with 24*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a maximum of 30W/port and 4*100/1000 SFP slots for combo RJ45/Fiber connections. The LNP-2804GN-SFP-T is a fully manageable Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports Source NATs, Destination NATs, and Static Routing. It also has network redundancy function using ERPS, X-Ring (ultra-high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D), MSTP. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.Features
- Supports 24*10/100/1000Tx IEEE 802.3 af/at PoE+ Gigabit Ports (PSE: 30W/Port) + 4*Gigabit Copper/SFP Combo Ports (4*10/100/1000Tx RJ45 + 4*100/1000 SFP Slots)
- SFP Socket for Easy and Flexible Fiber Expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), HTTPS, SSH and SNMPv3
- Redundancy: Proprietary Ring (Ultra-High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP Does not support ERPS
- 48VDC Power Input (46-57 VDC for PoE af, 53-57 VDC is Recommended for PoE at) & 2 Relay Outputs
- Extended Operating Temperature: -40°~75°C
- Power Polarity Reverse Protection
- Overload Current Protection
- 1U Rackmount Design
- IP30 Protection
- 5-Year Warranty
Included
- 1 - LNP-2804GN-SFP-T
- 1 - Quick Installation Guide
- 1 - RJ45 to DB9 Serial Console cable
- 1 - Set of rack mounting brackets and screws
Specifications
- Ambient Relative Humidity
- 10% to 95%, (Non-condensing)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201
- Combo Ports
- 4*100/1000 SFP Slots
- Dimensions
- 438 x 43.6 x 259.2mm (W x H x D)
- EMI
- CE FCC EN55022 Class A
- EMS
- IEC61000-4-2 (ESD);IEC61000-4-3 (RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge);IEC61000-4-6 (CS);IEC61000-4-8 (Magnetic Field)
- Ethernet Port
- 24*RJ45 Port w/10/100/1000TX with PoE+, Auto Negotiation Speed, Full/Half Duplex Mode, and Auto MDI/MDI-X Connection
- Flow Control
- IGMP Snooping/Query for Multicast Group Management, Port Trunking, Static/802.3ad, LACP Rate Limit and Storm Control, IEEE 802.1p QoS CoS/TOS/DSCP Priority Queuing, IEEE 802.3x Flow Control
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Housing / Mounting
- Metal, IP30 Protection / 1U 19" Rackmount
- Input Voltage
- 46 to 57VDC, Redundant Inputs
- Jumbo Frame
- 9216bytes
- LED Indicators
- 10/100T (X): Link/Activity, Duplex/Collision Gigabit Copper: Link/Activity, Speed (1000Mbps) SFP: Link/Activity
- MAC Table Size
- 8k
- Memory Buffer
- 4.1Mbits
- Operating Temperature
- EOT: -40° to 75°C
- Power Connection
- 4-Pin Terminal Block
- Power Consumption
- 20 Watts for System
- Processing Type
- Store and Forward
- Protocols
- Web browser, Telnet, Serial Console, TFTP, SNMPv1/v2c/v3, Port Speed/Duplex Configuration, IPv6, IEEE 802.1Q, GVRP, Port-based VLAN, Proprietary Ring, 802.1w/D RSTP/STP, IP Access Security, Port Security, DHCP Client, Port and IP Binding, 802.1X Port Access Control
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000Base-T Gigabit Ethernet;IEEE 802.3u 100Base-FX Fast Fiber;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3af/at Power over Ethernet
- Storage Temperature
- -40° to 85°C
- Warranty
- 5 Years
- Wavelength
- Depends on SFP Modules
- Weight
- Unit: 8.37lbs.
