LNP-2004G-SFP-T | 20-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots; EOT: -40° ~ 75°C | Antaira
20-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/16*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots; EOT: -40° ~ 75°C

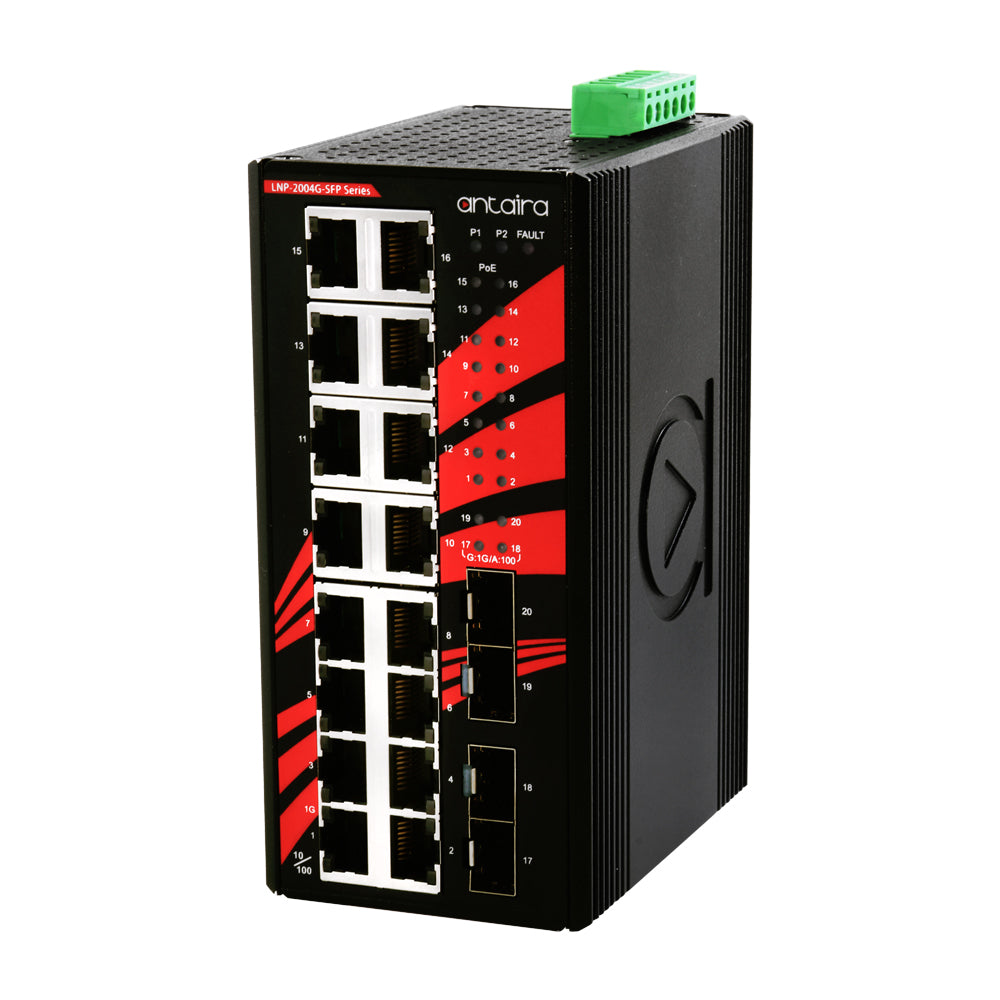

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-2004G-SFP-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-2004G-SFP-T Documents
Overview
Details for LNP-2004G-SFP-T
20-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots; EOT: -40° ~ 75°C
Antaira’s LNP-2004G-SFP-T industrial PoE+ gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with 16 gigabit Ethernet ports that support IEEE 802.3at (PoE+) with a maximum of 30W/Port; and has four dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNP-2004G-SFP-T has an operating temperature range of -40° to 75°C and is perfectly designed to fulfill any special needs for industrial automation, outdoor applications or harsh weather environments.Features
- Supports 16*10/100/1000Tx (30W/Port) + 4*100/1000 SFP ports
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range: -40° to 75°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG with DC jack 5.5x2.1mm
- LNP-2004G-SFP-T
- Quick Installation Guide
- RJ45 dust cover set
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Certifications
- FCC, CE
- Dimensions
- 67 x 142 x 99 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A,;CE EN 55032 Class A,;EN 61000-6-4 Class A
- EMS
- CE EN 55024 Class A,;EN 61000-6-2 Class A,;IEC61000-4-2 (ESD),;IEC61000-4-3 (RS),;IEC61000-4-4 (EFT),;IEC61000-4-5 (Surge),;IEC61000-4-6 (CS),;IEC61000-4-8 (Magnetic Field)
- Ethernet Port
- 16*10/100/1000T(X), auto negotiation speed,;Full/Half duplex mode, and auto MDI/MDI-X;connection
- Fiber Port
- 4*100/1000 SFP Slot
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Aluminum and Metal, IP30 protection
- Input Voltage
- 12 to 48VDC, Redundant Inputs
- Jumbo Frame
- 9,216bytes
- LED Indicators
- Power 1, Power 2, Fault;Ethernet Ports: On- Link / Flashing- Data transmitting;SFP: Link / Act
- MAC Table Size
- 8K
- Memory Buffer
- 512Kbytes
- Mounting
- DIN-Rail, Wall Mounting (optional)
- Network Cable
- 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable;EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable;EIA/TIA-568 100-ohm (100m);1000BaseTX: UTP/STP Cat.5/5E cable;;EIA/TIA-568 100-ohm (100m)
- Operating Temperature
- STD: -10°C to 65°C;EOT: -40°C to 75°C
- Optical Cable
- Multi-mode cable – 50/125um or 62.5/125um;Single-mode cable – 9/125um or 10/125um
- Overload Current Protection
- Present
- Power Connection
- 1 removable 6-contact terminal block
- Power Consumption
- 16.5Watts for System (TBD)
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3z 1000Base-X Gigabit Fiber
- Storage Temperature
- -40°C to 85°C
- Switching Architecture
- Back-Plane: Non-Blocking Switching Fabric
- Transmission Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Wavelength
- Depends on SFP modules
- Weight
- Unit: 2.65 Ibs. (TBD);Shipping: 3.09 Ibs. (TBD)
