LNP-1604G-SFP-T | 16-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/12*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots; EOT: -40 to 75C | Antaira
16-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/12*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots; EOT: -40 to 75C

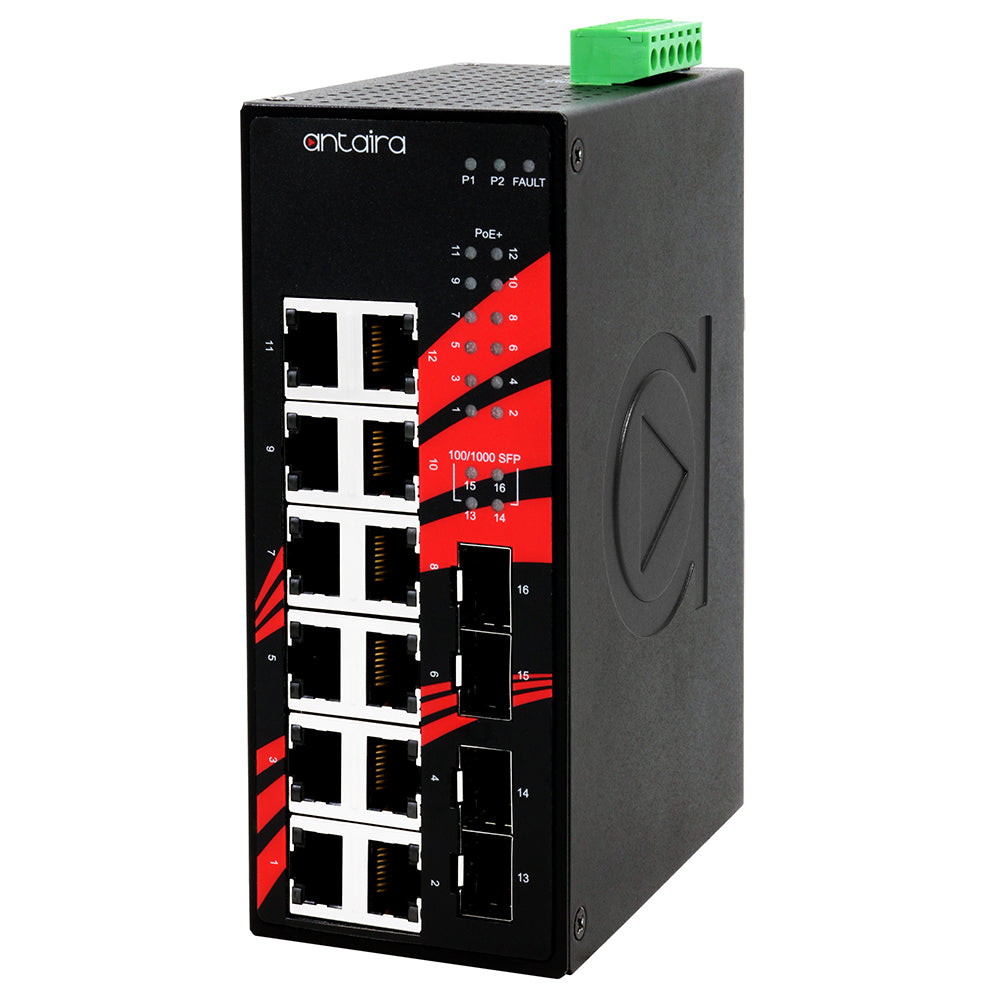

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-1604G-SFP-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-1604G-SFP-T Documents
Overview
Details for LNP-1604G-SFP-T
16-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/12*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots; EOT: -40 to 75C
Antaira Technologies’ LNP-1604G-SFP industrial gigabit PoE+ unmanaged Ethernet switch series has twelve 10/100/1000TX RJ45 ports that support IEEE 802.3af/at PoE/PoE+ standards supplying up to 30 watts per port. The device also has four dual rate (100/1000) SFP slots for fiber connection. It is IP30 rated design with both DIN-Rail and wall mounting options. It is ideal for applications that require high density port connections with full high PoE power outputs, wide network bandwidth, and multiple gigabit fiber connections. The LNP-1604G-SFP series works well in industrial applications such as, security video surveillance, GigE machine vision, process control automation and intelligent transportation. This product series provides high EFT and ESD protection with a redundant power input support of 48~55VDC. There are two wide operating temperature models to support -40 to 75 ̊C environment.Features
- Supports 12*10/100/1000Tx IEEE 802.3at PoE+ Compliant (PSE: 30W/Port), + 4*100/1000 SFP Slots
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- Jumbo Frame Support: 12.2Kbytes
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - EOT: -40° to 75°C
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - LNP-1604G-SFP-T
- 1 - Quick Installation Guide
- 2 - Wall mounting brackets and screws
Specifications
- Certifications
- FCC, CE
- Connection
- 1 removable 6-contact terminal block
- Dimensions
- 59 x 99 x 142 mm (W*D*H)
- EMS
- EN61000-4-2,3,4,5,6,8;EN61000-6-2,4
- Ethernet Port
- 12*RJ45 Ports w/10/100/1000Tx (w/PSE: 30W/port), auto negotiation speed, Full/Half duplex, and auto MDI/MDIX connection
- Fiber Port
- 4*100/1000 SFP Slots
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall / Shock / Vibration
- Green
- RoHS Compliant
- Housing / Mounting
- Metal, IP30 protection / DIN-Rail and wall mounting Provided
- Input Voltage
- 48~55VDC, Redundant Input
- Jumbo Frame
- 12.2Kbytes
- MAC Table Size
- 8K
- Memory Buffer
- 4 Mbit
- Operating Temperature
- EOT: -40° to 75°C
- Overload Current Protection
- Present (Slow-Blown Fuse)
- Power Consumption
- 16W; (376W w/full PSE load)
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Reverse Polarity Protection
- Yes
- Standards
- IEEE 802.3 10BaseTx Ethernet;IEEE 802.3u 100BaseTx Fast Ethernet;IEEE 802.3ab 1000BaseTx;IEEE 802.3z Gigabit Fiber;IEEE 802.3af/at Power over Ethernet
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Back-Plane (Non-Block Switching Fabric)
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Warranty
- 5 Years
