LNP-1604G-SFP | 16-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/12*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots | Antaira

16-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/12*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots

Antaira | LNP-1604G-SFP

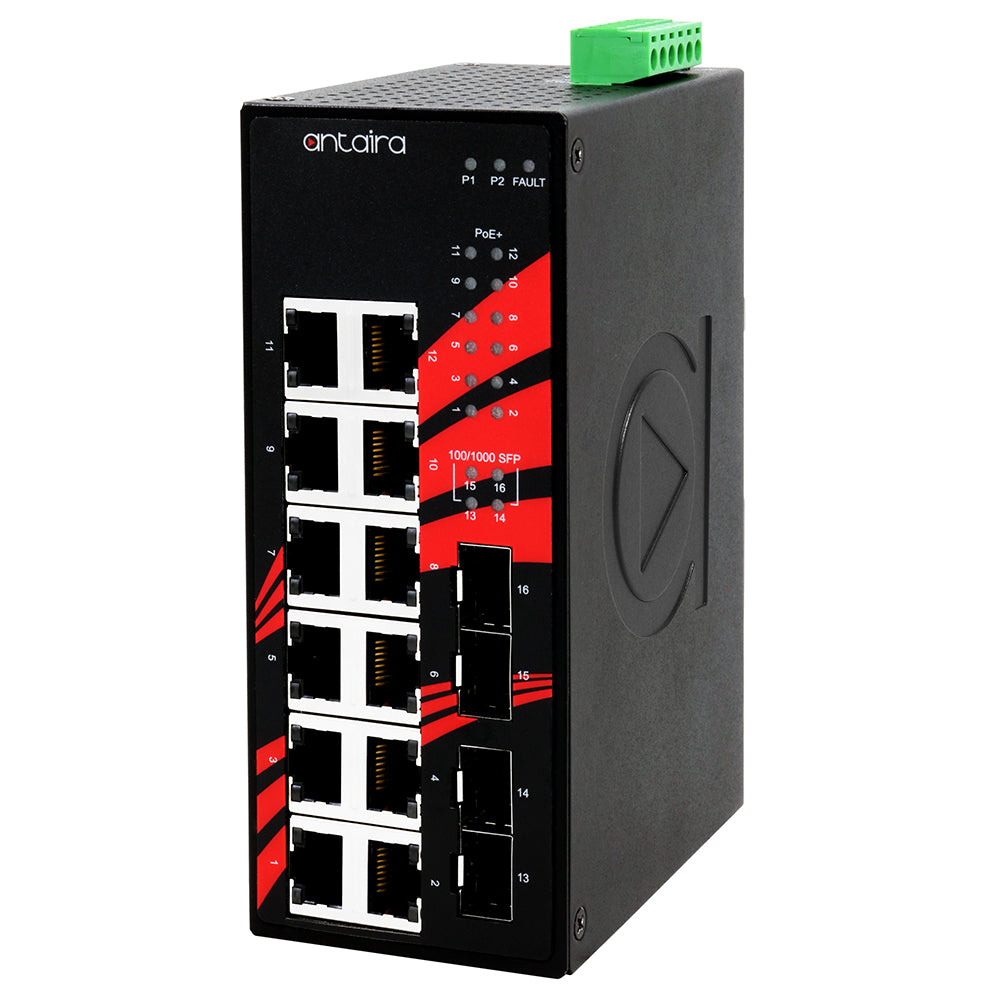

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-1604G-SFP

Documents and manuals

Antaira LNP-1604G-SFP Documents

Overview

Details for LNP-1604G-SFP

16-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/12*10/100/1000Tx (30W/Port) + 4*100/1000 SFP Slots

Antaira Technologies’ LNP-1604G-SFP industrial gigabit PoE+ unmanaged Ethernet switch series has twelve 10/100/1000TX RJ45 ports that support IEEE 802.3af/at PoE/PoE+ standards supplying up to 30 watts per port. The device also has four dual rate (100/1000) SFP slots for fiber connection. It is IP30 rated design with both DIN-Rail and wall mounting options. It is ideal for applications that require high density port connections with full high PoE power outputs, wide network bandwidth, and multiple gigabit fiber connections. The LNP-1604G-SFP series works well in industrial applications such as, security video surveillance, GigE machine vision, process control automation and intelligent transportation. This product series provides high EFT and ESD protection with a redundant power input support of 48~55VDC. There are two wide operating temperature models to support -10 to 70 ̊C environment.

Features

  • Supports 12*10/100/1000Tx IEEE 802.3at PoE+ Compliant (PSE: 30W/Port), + 4*100/1000 SFP Slots
  • Store-and-Forward Switching Architecture
  • 8K MAC Address Table
  • Jumbo Frame Support: 12.2Kbytes
  • Surge Protection: 2,000 VDC Support
  • ESD Protection: 6,000 VDC Support
  • Redundant Power Input Design: 48~55VDC
  • Built-in 1 Relay Output for Power Failure Warning
  • IP30 Rugged Metal Case Design
  • DIN-Rail and Wall Mount Support
  • Operating Temperature Range - STD: -10° to 70°C
  • 5-Year Warranty

Included

  • 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
  • 1 - LNP-1604G-SFP
  • 1 - Quick Installation Guide
  • 2 - Wall mounting brackets and screws

Specifications

Certifications
FCC, CE
Connection
1 removable 6-contact terminal block
Dimensions
59 x 99 x 142 mm (W*D*H)
EMS
EN61000-4-2,3,4,5,6,8;EN61000-6-2,4
Ethernet Port
12*RJ45 Ports w/10/100/1000Tx (w/PSE: 30W/port), auto negotiation speed, Full/Half duplex, and auto MDI/MDIX connection
Fiber Port
4*100/1000 SFP Slots
Flow Control
IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green
RoHS Compliant
Housing / Mounting
Metal, IP30 protection / DIN-Rail and wall mounting Provided
Input Voltage
48~55VDC, Redundant Input
Jumbo Frame
12.2Kbytes
MAC Table Size
8K
Memory Buffer
4 Mbit
Operating Temperature
STD: -10° to 70°C
Overload Current Protection
Present (Slow-Blown Fuse)
Power Consumption
16W; (376W w/full PSE load)
Processing Type
Store and Forward
Protocols
CSMA/CD
Reverse Polarity Protection
Yes
Standards
IEEE 802.3 10BaseTx Ethernet;IEEE 802.3u 100BaseTx Fast Ethernet;IEEE 802.3ab 1000BaseTx;IEEE 802.3z Gigabit Fiber;IEEE 802.3af/at Power over Ethernet
Storage Temperature
-40°C ~ 85°C
Switching Architecture
Back-Plane (Non-Block Switching Fabric)
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Warranty
5 Years
