LNP-1202G-SFP | 12-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch | w/8*10/100/1000Tx (30W/Port) | 2*10/100/1000Tx + 2*100/1000 SFP Slots | Antaira
12-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/8*10/100/1000Tx (30W/Port), 2*10/100/1000Tx + 2*100/1000 SFP Slots

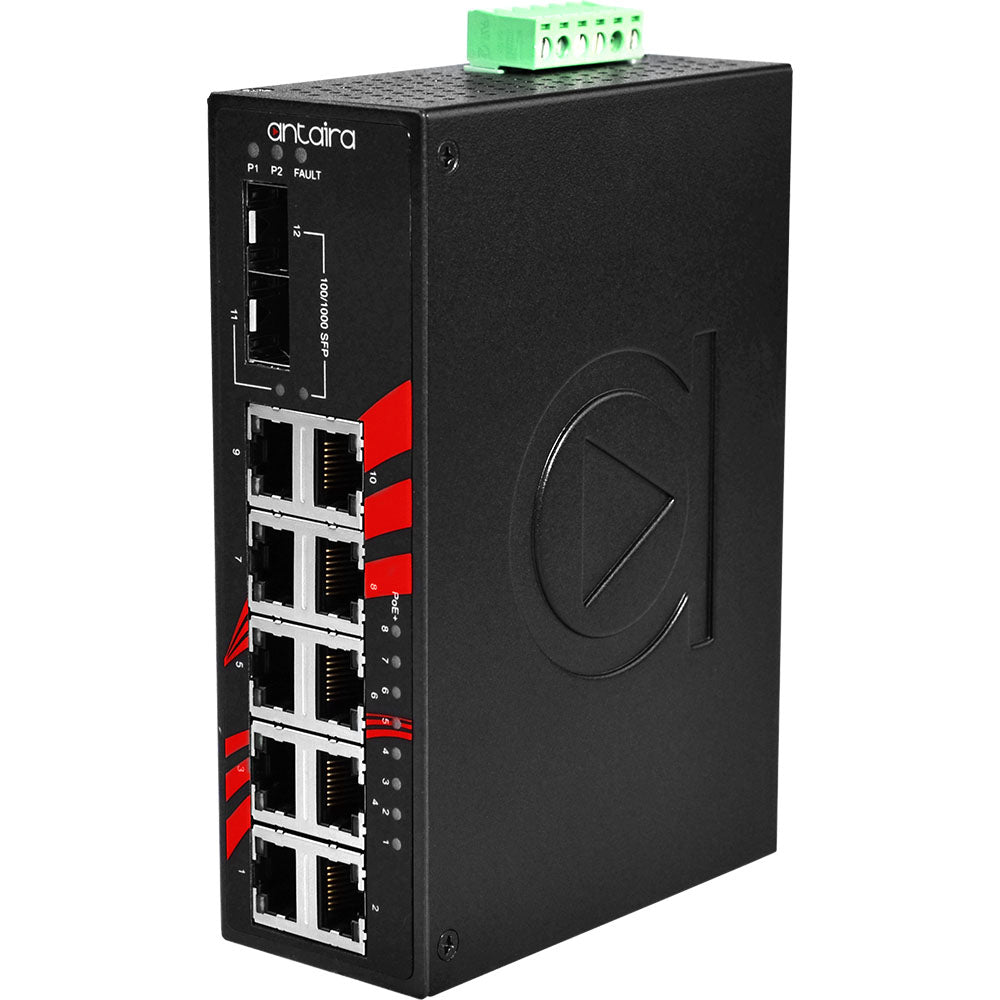

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-1202G-SFP
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-1202G-SFP Documents
Overview
Details for LNP-1202G-SFP
12-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch | w/8*10/100/1000Tx (30W/Port) | 2*10/100/1000Tx + 2*100/1000 SFP Slots
Antaira’s LNP-1202G-SFP industrial PoE+ gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with 10 gigabit Ethernet ports of which 8 ports support IEEE 802.3at (PoE+) with a maximum of 30W/Port; and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports a power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNP-1202G-SFP has an operating temperature range of -10 to 70°C and is perfectly designed to fulfill any special needs for industrial automation, outdoor applications or harsh weather environments.Features
- Supports 8*10/100/1000Tx (30W/Port), 2*10/100/1000Tx + 2*100/1000 SFP ports
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 24Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range: -10° to 70° C
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
- 1 - LNP-1202G-SFP
- 2 - Wall Mounting Brackets and Screws
Specifications
- Certifications
- FCC, RoHS, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
- Connection
- 1 Removable 6-Contact Terminal Block
- Dimensions
- 46 x 99 x 142 mm
- EMS
- EN61000-4-2,3,4,5,6,8;EN61000-6-2,4
- Ethernet Port
- 2*RJ45 Ports w/ 10/100/1000Tx;8*RJ45 Ports w/ 10/100/1000tx (PSE 30Watts per Port)
- Fiber Port
- 2*100/1000 SFP Slot
- Flow Control
- IEEE 802.3x Back Pressure Flow Control
- Housing / Mounting
- Metal, IP30 Protection with DIN-Rail & Wall mounting kits included
- Input Voltage
- 48~55VDC Redundant Input
- Jumbo Frame
- 9.6Kbytes
- MAC Table Size
- 8K
- Memory Buffer
- 7,926pps (Default)
- Operating Temperature
- STD: -10C to 70C;EOT: -40C to 75C
- Overload Current Protection
- Present
- Poe Pin Assignment
- V+, V+, V-, V- for Pins 1, 2, 3, 6
- Power Consumption
- Unit 10 Watts;215 Watts @ 48VDC / 255 Watts @ 55VDC
- Processing Type
- Store and Forward
- Shock/Vibration/Free Fall
- IEC60068-2-27/6/32
- Standards
- IEEE 802.3 10BaseTx Ethernet;IEEE 802.3u 100BaseTx Fast Ethernet;IEEE 802.3ab 1000BaseTx;IEEE 802.3z Gigabit Fiber;IEEE 802.3at PoE+
- Storage Temperature
- -40C to 85C
- Switching Architecture
- Back-Plane (Switching Fabric): 24Gbps
- Technology Protocol
- CSMA/CD
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Ports
- Warranty
- 5 Years
