LNP-1002G-SFP-T-CC | 10-Port Industrial PoE+ Unmanaged Ethernet Switch | w/ 8*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slot; EOT: - 40° ~ 75°C | 48~55VDC with Conformal Coating | Antaira
10-Port Industrial PoE+ Unmanaged Ethernet Switch, w/ 8*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slot; EOT: - 40° ~ 75°C, 48~55VDC with Conformal Coating

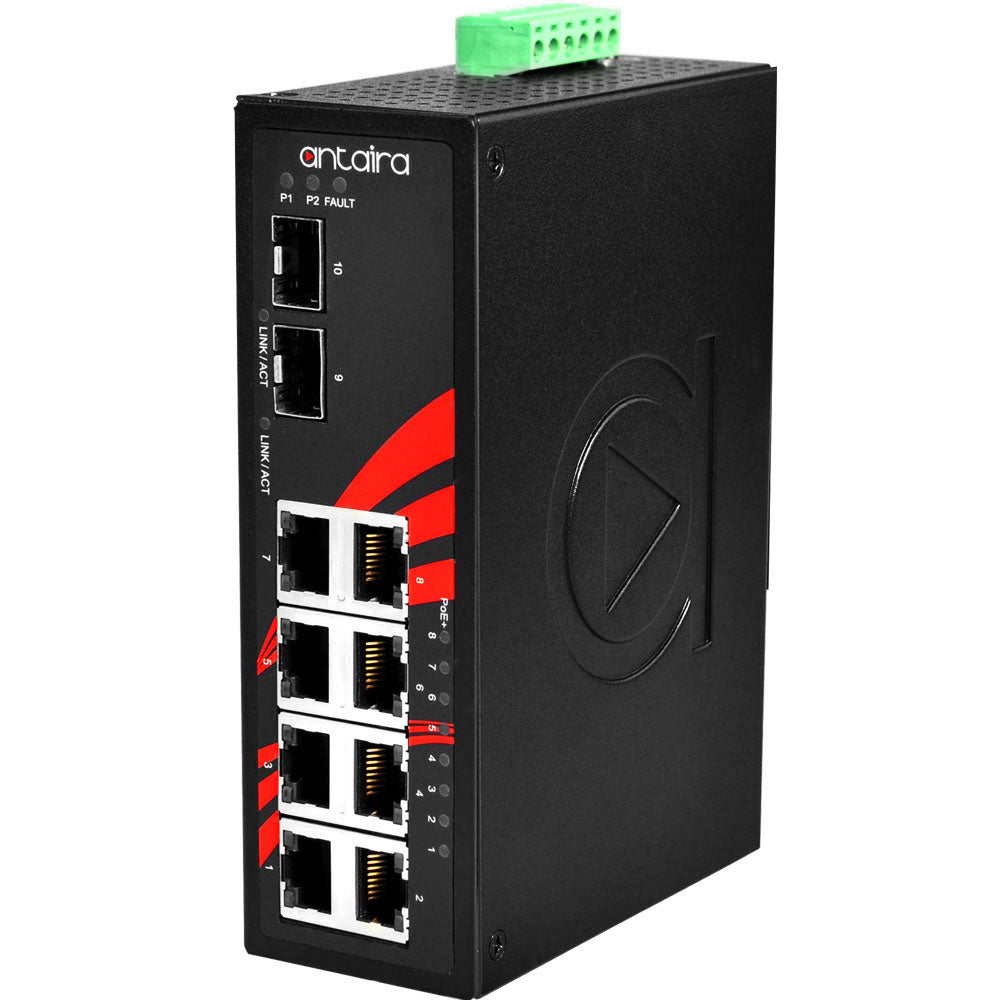

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-1002G-SFP-T-CC
Documents and manuals
Antaira LNP-1002G-SFP-T-CC Documents
Overview
Details for LNP-1002G-SFP-T-CC
10-Port Industrial PoE+ Unmanaged Ethernet Switch | w/ 8*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slot; EOT: - 40° ~ 75°C | 48~55VDC with Conformal Coating
Antaira’s LNP-1002G-SFP-T-CC industrial gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable. Each unit is designed with 8 Gigabit Ethernet ports that are IEEE 8023.at compliant (power-over-Ethernet plus) and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long-distance communication.Conformal coating is a specialty film which conforms to the contours of the printed circuit board to protect the board from adverse environmental conditions. Antaira’s conformal coating process meets or exceed the standards for protection against gases, dust, and water.This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.The LNP-1002G-SFP-T-CC has an extended operating temperature range of -40° to 75°C. It is a perfectly designed product to fulfill any special needs for industrial automation, outdoor applications, and harsh weather environments.Features
- Conformal Coating
- Supports 8-Port 10/100/1000Tx IEEE 802.3at PoE+ Compliant with 30W per Port + 2-Port 100/1000 SFP
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 20Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - EOT: -40° to 75°C
- 5-Year Warranty
Included
- 2 - Wall mounting brackets and screws
- DC Cable - 18 AWG with DC jack 5.5x2.1mm
- LNP-1002G-SFP-T-CC
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
- Connection
- 1 removable 6-contact terminal block
- Corrosion Prevention
- IEC 60068-2-11, IEC 60068-2-52, IEC 60068-2-60;IPC-CC-830B, MIL-I-46058C, IEC 61086-2 (Class 2), UL 94, UL 746E;ISO 9223 (Class C5-Very High, Class GX-Severe);ANSI/ISA 71.04 (Class GX-Severe)
- Dimensions
- 46 x 99 x 142mm (W*D*H)
- EMI
- FCC Class A
- EMS
- EN61000-4-2,3,4,5,6,8,11,12;EN61000-6-2,4
- Ethernet Port
- 8*10/100/1000Tx (PSE: 30W/Port) RJ45 Ports
- Fiber Port
- 2*100/1000 SFP Slots
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 48~55VDC, Redundant Input
- Jumbo Frame
- 9.6Kbytes
- MAC Table Size
- 8K
- Mounting
- DIN-Rail, Wall mounting (optional)
- Network Cable
- 10Base Tx: 2-pair UTP/STP Cat. 3,4,5;100Base Tx: 2-pair UTP/STP Cat. 5;1000Base Tx: 2-pair UTP/STP Cat. 5/5E
- Operating Temperature
- -40°~75°C
- Overload Current Protection
- Present
- PoE Pin Out
- V+, V+, V-, V- for pins 1,2,3,6;Endspan, MDI Alternative A
- Power Consumption
- 210 Watts @ 48V;250 Watts @ 51-55V (Full Load w/PoE)
- Processing Type
- Store and Forward
- Reverse Polarity Protection
- Yes
- Standards
- IEEE 802.3 10BaseTx Ethernet;IEEE 802.3u 100BaseTx Fast Ethernet;IEEE 802.3ab 1000BaseTx;IEEE 802.3z Gigabit Fiber;IEEE 802.3at PoE+
- Storage Temperature
- -40°~85°C
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Warranty
- 5 Years
- Weight
- Unit 1.5 lbs. ; Shipping Weight 2.0 lbs.
