LNP-1002G-SFP | 10-Port Industrial PoE+ Unmanaged Ethernet Switch | w/8*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slot | Antaira
10-Port Industrial PoE+ Unmanaged Ethernet Switch, w/8*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slot

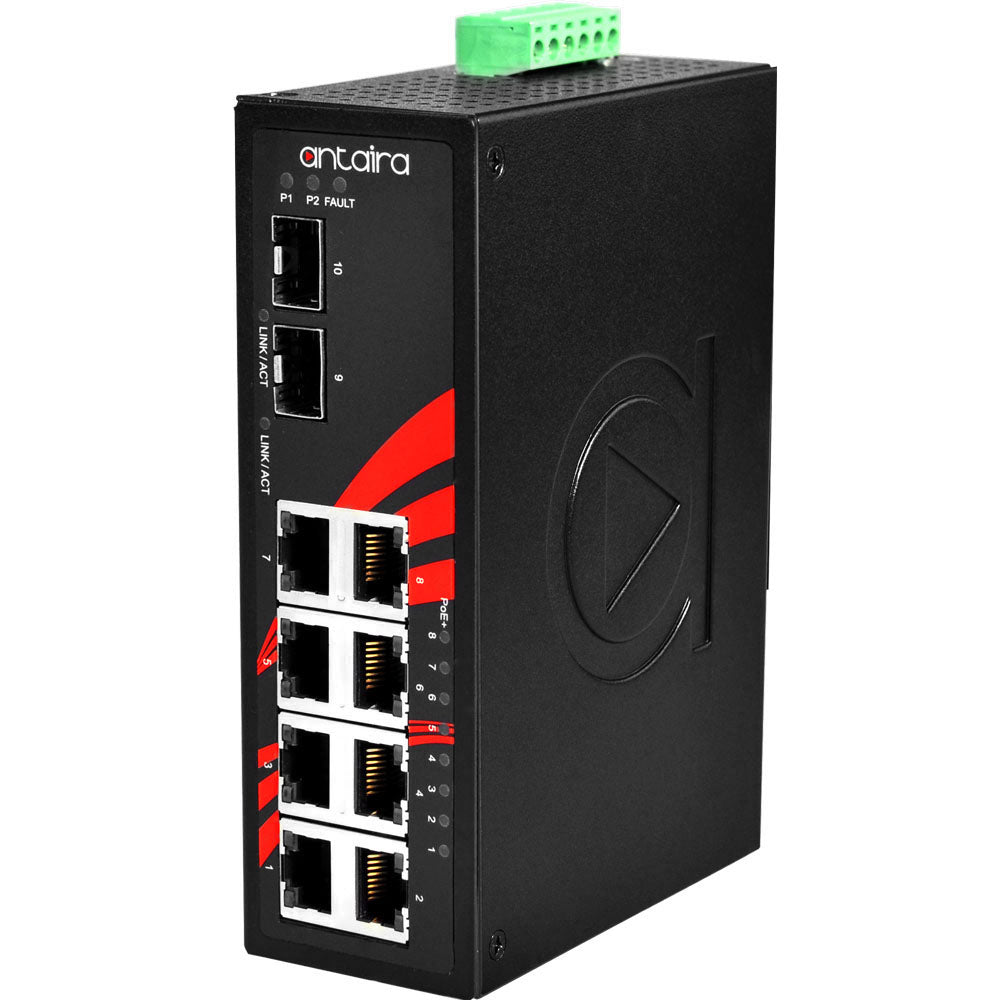

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-1002G-SFP
Documents and manuals
Antaira LNP-1002G-SFP Documents
Overview
Details for LNP-1002G-SFP
10-Port Industrial PoE+ Unmanaged Ethernet Switch | w/8*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slot
Antaira’s LNP-1002G-SFP industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with 8 gigabit Ethernet ports that are IEEE 8023.at compliant (power-over-Ethernet plus) and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNP-1002G-SFP has an operating temperature range of -10 to 70°C and is perfectly designed to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments.Features
- Supports 8-Port 10/100/1000Tx IEEE 802.3at PoE+ Compliant with 30W per Port + 2-Port 100/1000 SFP
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 20Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Detection
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C
- 5-Year Warranty
Included
- 1 x DC cable –18 AWG & DC Jack 5.5x2.1mm
- 1 x LNP-1002G-SFP
- 2 x Wall Mounting Bracket and Screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
- Dimensions
- 46mm (W) x 99mm (D) x 142mm (H)
- EMI
- FCC Class A
- EMS
- EN6100-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11, 4-12, 6-2, 6-4
- Ethernet Port
- 8*RJ45 Ports with 10/100/1000Tx (PSE 30W/Port) auto MDI/MDI-X connection + 2*100/1000 SFP Slot
- Free fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection, Din-Rail Mounting (wall mounting bracket is also included)
- Input Voltage
- 48~55VDC, Redundant Input (w/ 1 removable 6-contact terminal block)
- Jumbo Frame
- 9.6 Kbytes
- MAC Table Size
- 8K
- Operating Temperature
- -10° to 70° C (14° to 158° F)
- Overload Current Protection
- Present
- PoE Pin Out
- V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A)
- Power Consumption
- 210 Watts @ 48V, 250 Watts @ 51~55V Full Load with PoE Function
- Reverse Polarity Protection
- Yes
- Standards
- IEEE 802.3, 3u, 3ab, 3az, 3at
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Switching Architecture
- Back-Plane (Switching Fabric): 20Gbps
- Transfer Rate
- Up to 1.0Gbps for Gigabit Ethernet port
- Warranty
- 5 years
- Weight
- Unit Weight: 1.5-lbs;Shipping Weight: 2 lbs
