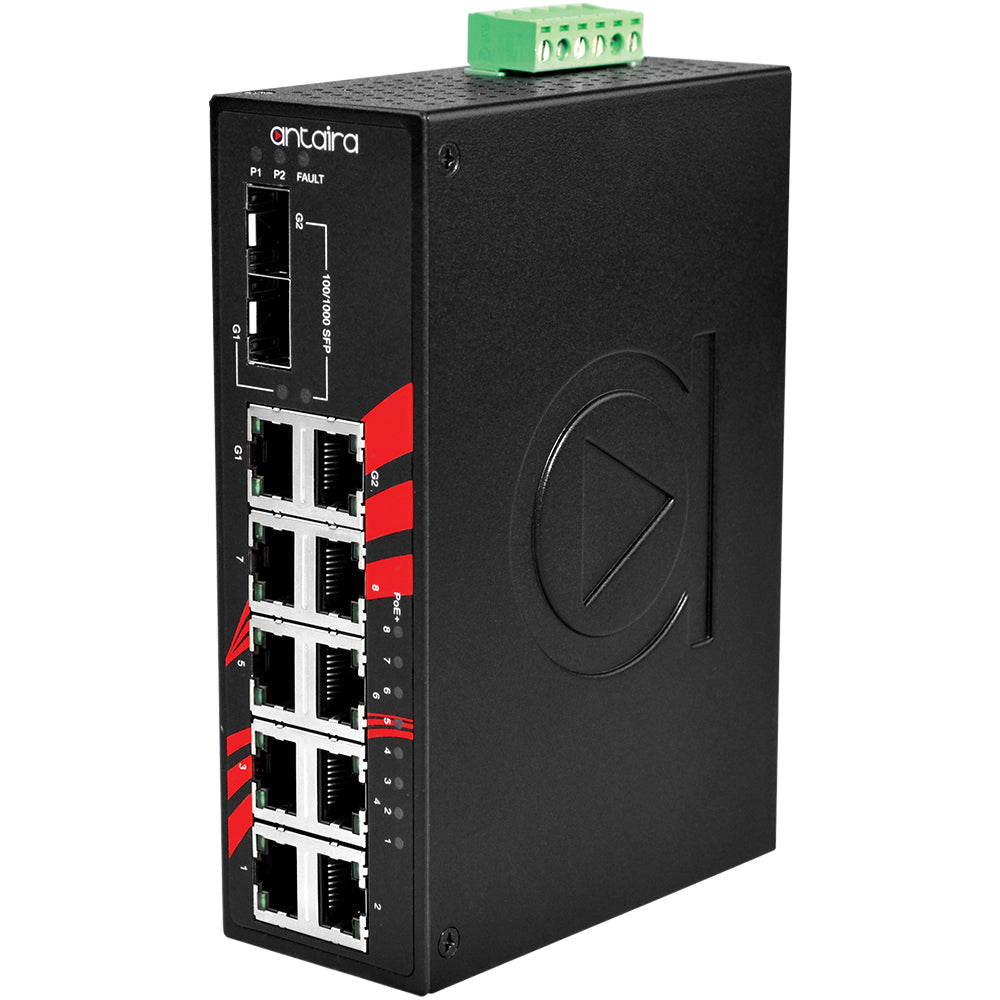

LNP-1002C-SFP | 10-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch | w/8*10/100Tx + 2*Gigabit Combo (2*10/100/1000 RJ45 | and 2*100/1000 SFP Slot) | Antaira
10-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/8*10/100Tx + 2*Gigabit Combo (2*10/100/1000 RJ45, and 2*100/1000 SFP Slot)
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-1002C-SFP
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-1002C-SFP Documents
Overview
Details for LNP-1002C-SFP
10-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch | w/8*10/100Tx + 2*Gigabit Combo (2*10/100/1000 RJ45 | and 2*100/1000 SFP Slot)
Antaira’s LNP-1002C-SFP industrial PoE+ gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. Each unit is embedded with eight 10/100Tx Fast Ethernet ports that are IEEE 802.3at compliant (power-over-Ethernet plus) and two gigabit combo ports with two 10/100/1000Tx Fast Ethernet and dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. It is an ideal solution for harsh environments and industrial applications. The LNP-1002C-SFP series includes two models: one with a standard operating temperature range of -10 to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a perfectly designed product to fulfill special needs within industrial automation, outdoor applications and harsh weather environments.Features
- Supports 8-Port 10/100Tx IEEE 802.3at PoE+ Compliant with 30W per Port, + 2 Gigabit Combo Ports (2*10/100/100 RJ45, and 2*100/1000 SFP Slots)
- Supports Auto MDI/MDI-X Function
- Non-Blocking Switching Fabric
- 8K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range STD: -10° to 70°C
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - LNP-1002C-SFP
- 2 - Wall mounting brackets and screws
Specifications
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
- Dimensions
- 46 x 99 x 142 mm (W*D*H)
- EMI
- FCC Class A
- EMS
- EN61000-4-2,3,4,5,6,8, EN61000-6-2,4
- Ethernet Port
- 8*RJ45 Ports w/10/100Tx (PSE 30W/Port)
- Free fall / Shock / Vibration
- IEC60068-2-32; IEC60068-2-27; IEC60068-2-6
- Gigabit Combo Port
- 2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slot For Fiber
- Green
- RoHS Compliant
- Housing / Mounting
- IP30 rated Metal Housing, DIN-Rail or Wall Mounting
- Humidity
- 5 to 95%, (non-condensing)
- Operating Temperature
- STD: -10° to 70° C
- Overload Current Protection
- Present
- PoE Pin Out
- V+, V+, V-, V- for pins 1,2,3,6 Endspan, MDI Alternative A
- Power Consumption
- 210W@48V; 250W@51-55V (Full Load w/ PoE)
- Power Input
- 48~55VDC, Redundant Input
- Power Reverse Polarity Protection
- Yes
- Protection
- EFT: 2KV; ESD: 6KV
- Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3at
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Non-Blocking Switching Fabric
- Warranty
- 5 Years
- Weight
- Unit 1.5lbs.; Shipping Weight 2.0 lbs.
