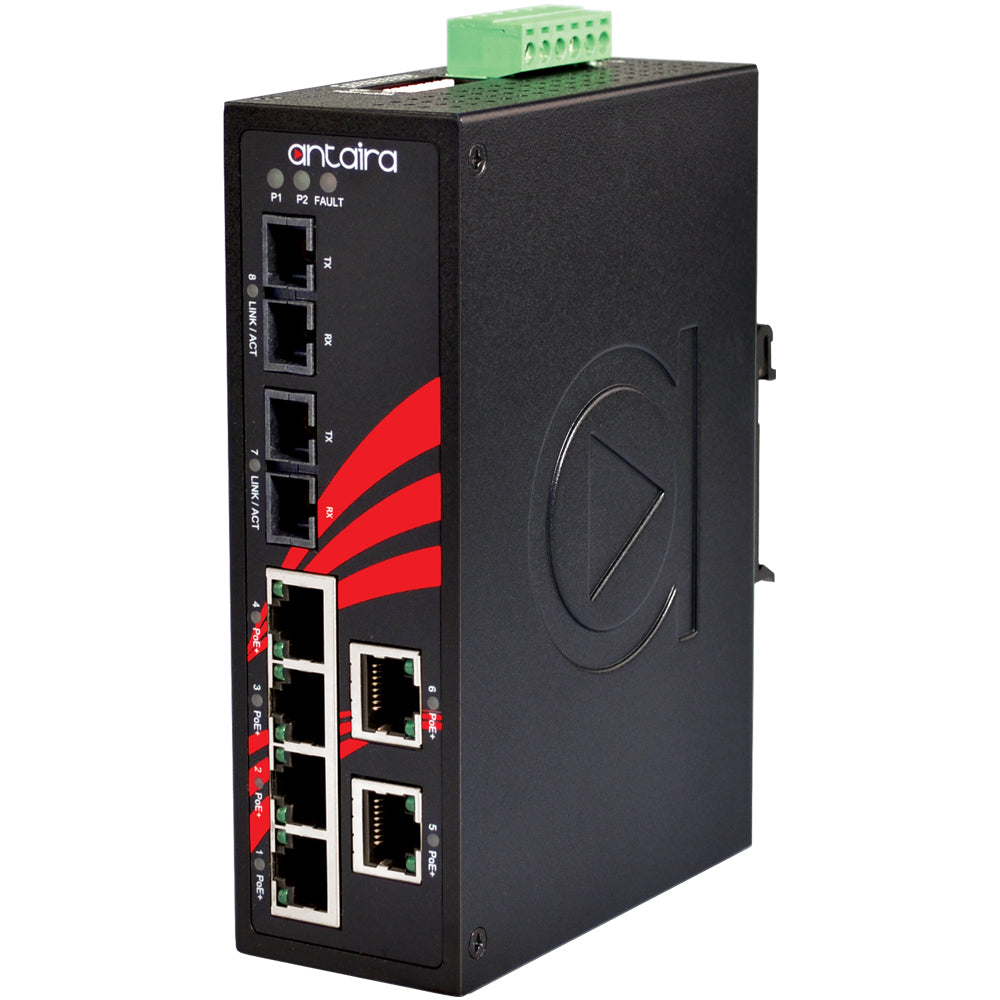

LNP-0802-M-24-T | 8-Port Industrial PoE+ Unmanaged Ethernet Switch | w/6*10/100Tx (30W/Port) + 2*100Fx Multi-mode 2Km | 12VDC-36VDC; EOT: -40~75C | Antaira
8-Port Industrial PoE+ Unmanaged Ethernet Switch, w/6*10/100Tx (30W/Port) + 2*100Fx Multi-mode 2Km, 12VDC-36VDC; EOT: -40~75C
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-0802-M-24-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-0802-M-24-T Documents
Overview
Details for LNP-0802-M-24-T
8-Port Industrial PoE+ Unmanaged Ethernet Switch | w/6*10/100Tx (30W/Port) + 2*100Fx Multi-mode 2Km | 12VDC-36VDC; EOT: -40~75C
Antaira’s LNP-0802-24 series switch is a smart 8-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 6. The switch comes with 2 x 100Fx ports with SC or ST type connectors and supports Multi-mode in 2Km, or Single-mode in 30Km.The LNP-0802-24 series switch enables centralization of the power supply and provides up to 30 watts of power per port. This switch can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.Features
- Network broadcast storm protection
- 6-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
- 2-Port 100Fx SC type connector Multi-Mode)
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC support
- ESD Protection: 6,000 VDC support
- UL Class I, Division 2 Certified
- Redundant Power Input Design – 12~36VDC
- Built-in 1 relay output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount support
- Operating Temperature range - STD: -10° to 70° C, EOT: -40° to 75° C
- 5-Year Warranty
Included
- 1 - DC Cable - 18 AWG & DC Jack 5.5 x 2.1mm
- 2 - Wall Mounting Brackets and Screws
- LNP-0802-M-24-T
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL/cUL 508, ISA 12.12.01, Class 1 Div 2
- Connection
- 1 removable 4-contact terminal block
- Dimensions
- 46 x 142 x 99 mm (1.81 x 5.59 x 3.90 in.)
- EMI
- FCC Class A
- EMS
- EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8;EN6100-6-2; EN6100-6-4
- Fiber Port
- 2*100Fx SC type connector;Multi-mode (2Km) - 50/125um ~ 62.5/125um
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 12~36VDC, Redundant Input
- MAC Table Size
- 2K
- Mounting
- DIN-Rail mounting, wall mounting (optional)
- Operating Temperature
- EOT: -40° to 75° C (-40° to 167° F)
- Overload Current Protection
- Slow-Blown Fuse
- PoE Pin Out
- V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A)
- PoE Power Output
- 30W @ 53VDC (per PoE port)
- Power Consumption
- 145 Watts @ 12VDC; 200 Watts @ 24VDC
- Processing Type
- Store and Forward
- Reverse Polarity Protection
- Yes
- RJ45 Ports
- 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection;6*10/100Tx (PoE+)
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE802.3x Flow Control and Back-Pressure;IEEE 802.3at Power over Ethernet
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Switching Architecture
- Back-Plane (Switching Fabric): 1.0Gbps;Packet Throughout Ability (Full-Duplex): 1.488Mpps @64bytes
- Technology Protocol
- CSMA/CD
- Transfer Rate
- 14,880 for Ethernet Port;148,800pps for Fast Ethernet Port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Wavelength
- 1310nm (Multi-mode)
- Weight
- Unit Weight: 1.7 lbs. Shipping Weight: 2.1 lbs
