LNP-0800G-T | 8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/8*10/100/1000Tx (30W/Port); EOT: -40°C to 75°C | Antaira
8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/8*10/100/1000Tx (30W/Port); EOT: -40°C to 75°C

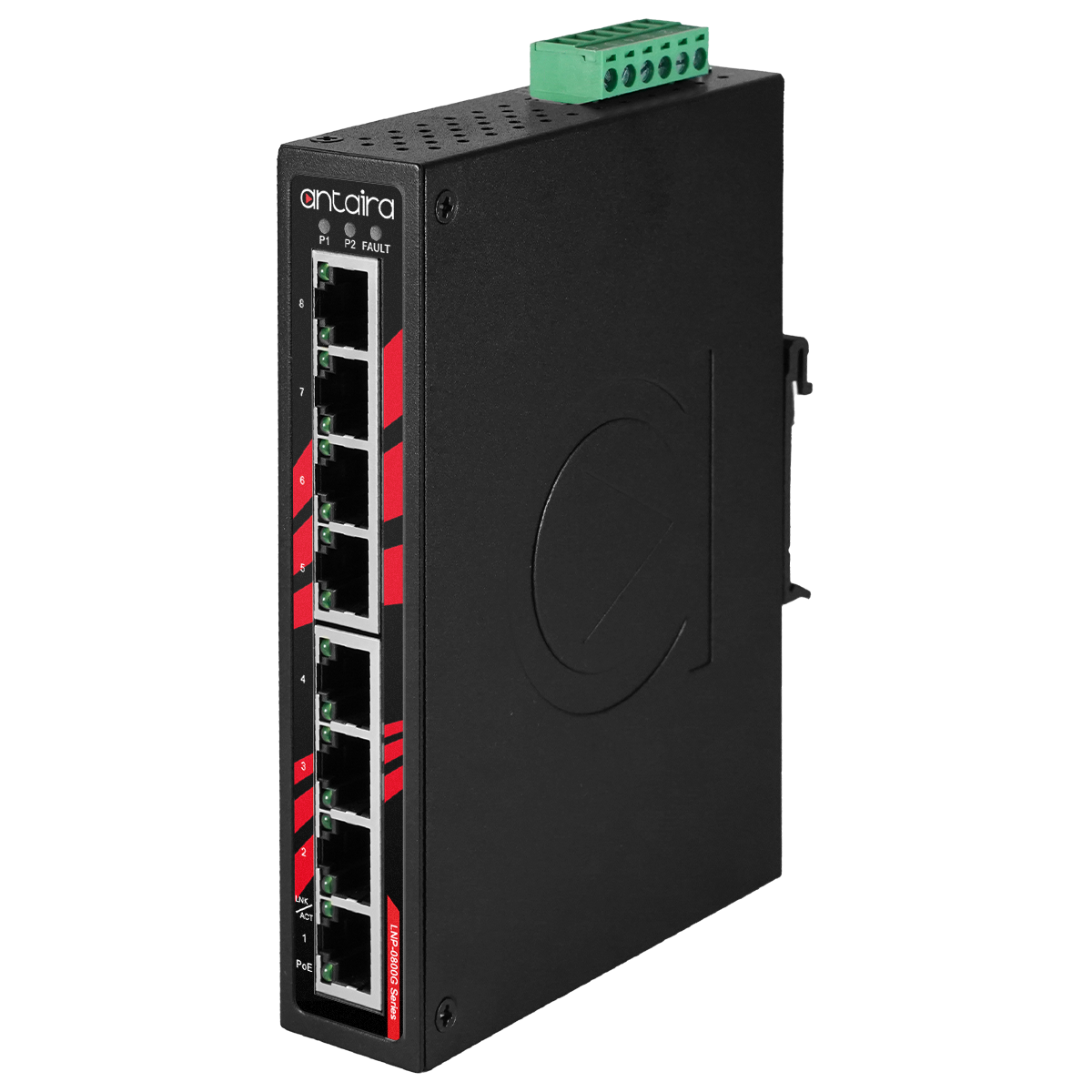

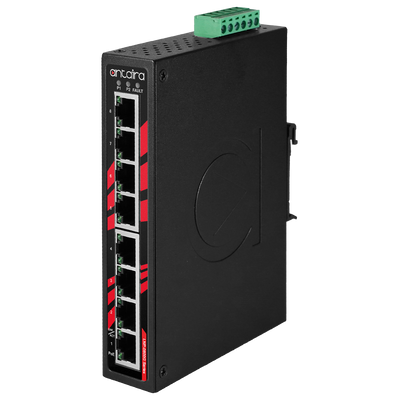

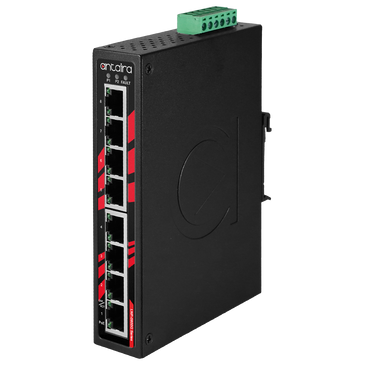

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-0800G-T
Documents and manuals
Antaira LNP-0800G-T Documents
Overview
Details for LNP-0800G-T
8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/8*10/100/1000Tx (30W/Port); EOT: -40°C to 75°C
Antaira Technologies LNP-0800G-T is an 8-port industrial PoE+ gigabit unmanaged Ethernet switch that supports 8*10/100/1000Tx Ethernet ports. The LNP-0800G-T is a backward compliant PoE+ switch that will support IEEE 802.3af/at standards providing a maximum of 30 watts per port with an input voltage of 48~55VDC.Antaira's LNP-0800G-T has been specifically designed for rugged and harsh environmental deployments. This product series is housed in a hardened IP30-rated metal enclosure that includes DIN-rail and wall mounting hardware. There is an extended temperature range (EOT: -40°C to 75°C). The LNP-0800G-T also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS (including on-vehicle), solar, security, or any other outdoor or harsh environment.Features
- Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port
- Supports 9.6Kbytes Jumbo Frame
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- Power Input: 48~55VDC in 6-Pin Terminal Block
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature - EOT: -40°C to 75°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- Dust cover set
- LNP-0800G-T
- Quick Installation Guide
- Wall mounting bracket set with screws
Specifications
Item Number | LNP-0800G-T |
Brand | Antaira |
Ports | 8-Port |
Type | Unmanaged Gigabit Switch POE |
