LNP-0800G-M12-67-24-T | 8-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Ethernet Switch | w/8*10/100/1000Tx (30W/Port) M12 Connector (X-Coded); -40° to 70°C | Antaira

8-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Ethernet Switch, w/8*10/100/1000Tx (30W/Port) M12 Connector (X-Coded); -40° to 70°C

Brand: AntairaSKU: LNP-0800G-M12-67-24-T

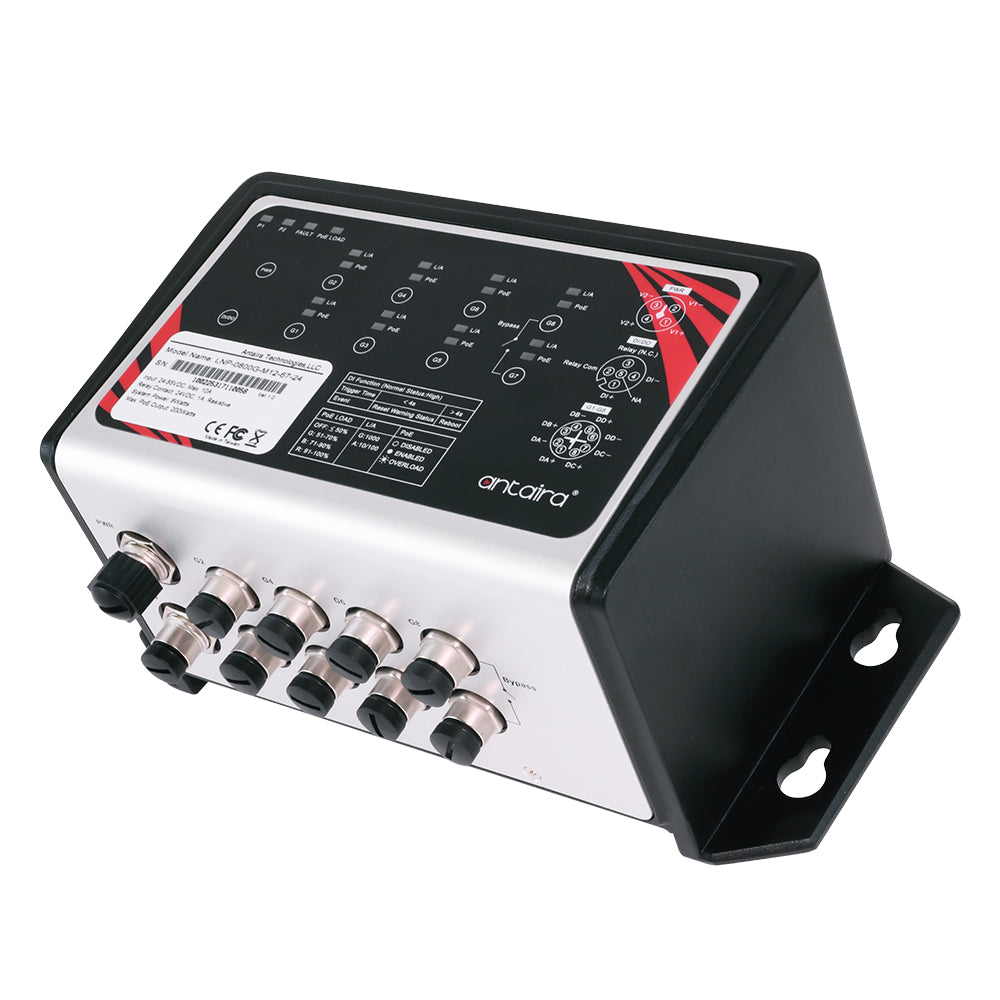

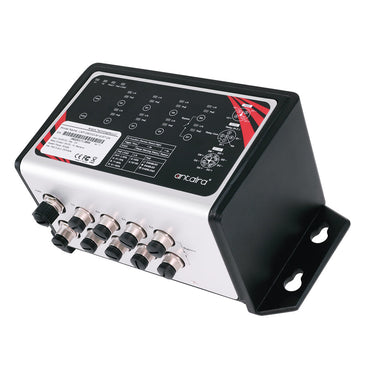

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNP-0800G-M12-67-24-T

Overview & Specifications Reviews Parts & Accessories

Overview Details for LNP-0800G-M12-67-24-T

8-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Ethernet Switch | w/8*10/100/1000Tx (30W/Port) M12 Connector (X-Coded); -40° to 70°C

The LNP-0800G-M12-67-24-T Ethernet switch provides 8 Gigabit Ethernet M12 ports with all 8 IEEE 802.3at compliant PoE (Power-over-Ethernet) ports. The switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port.The LNP-0800G-M12-67-24-T features a wide operating temperature of -40° to 70°C that allows it to be used in some of the harshest industrial environments.Moreover, its M12 connectors ensures a tight, robust connection, and guarantees reliable operation on applications that are subject to high vibration and shock.

Features

8-Port 10/100/1000Tx Ethernet with IEEE 802.3at Compliant PoE+
Redundant Power Inputs Design, 24~55VDC
Built-in Power Booster Design for PoE/PoE+ Output
Built-in Relay Output Warning for Power/PoE Failure
Bypass Design for Daisy Chain Redundancy
Support Digital Input/Digital Output
IP67 Rugged Waterproof Metal Case Design
M12 X-Coded Connector for Ensure Tight and Robust Connection
Wall Mountable
5-Year Warranty

Included

1 - LNP-0800G-M12-67-24-T
1 - Quick Installation Guide

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Bypass Protection: Ethernet Port 7 and 8
Certifications: UL 61010-1, UL 61010-2-201
Digital Input: 1*Digital Input (DI): State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
Dimensions: 253.57 x 122 x 116.12 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A
EMS: CE EN 55024 Class A;EN 61000-6-2 Class A;IEC61000-4-2 (ESD);IEC61000-4-3 (RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge);IEC61000-4-6 (CS);IEC61000-4-8 (Magnetic Field)
Ethernet Port: 8*10/100/1000BaseT(X) with 8*PoE+, 8-pin M12 X-coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x back pressure flow control
Free Fall / Shock / Vibration: IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green: RoHS Compliant
Housing: Metal, IP67 protection
Input Voltage: 24~55VDC, Redundant Power Inputs
Jumbo Frame: 12.2K bytes
LED Indicators: Power 1, Power 2, Fault, PoE Load;Ethernet Ports: On- link / Flash- data transmitting;PoE: On- connected to PD devices
MAC Table Size: 8K
Max. PoE Power Budget: 200 Watts
Memory Buffer: 4Mbits
Mounting: Wall mounting
Operating Temperature: -40°C ~ 70°C
Overload Current Protection: Present
PoE Output Priority: Port 1 to 8 (High priority to low priority)
PoE Power Output: 30W max. per PoE port
Power Connection: 1*M12, 4-pin T-coded, male connector
Power Consumption: 8Watts for system
Power Consumption: 8Watts for system
Protocols
Protocols: CSMA/CD
Reverse Polarity Power Protection: Present
Reverse Polarity Protection: Present
Standards: IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3af/at Power over Ethernet
Standards: IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3af/at Power over Ethernet
Switching Architecture: Back-Plane: Non-Blocking Switching Fabric
Switching Architecture: Back-Plane: Non-Blocking Switching Fabric
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Warranty: 5 Years
Warranty: 5 Years
Weight: Unit: 7.05 lbs.;Shipping: 8.82 lbs.
Weight: Unit: 7.05 lbs.;Shipping: 8.82 lbs.
