LNP-0800G-24-T | 8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/8*10/100/1000Tx (30W/Port) | 9~55VDC Power Input; EOT: -40°C to 75°C | Antaira
8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/8*10/100/1000Tx (30W/Port), 9~55VDC Power Input; EOT: -40°C to 75°C

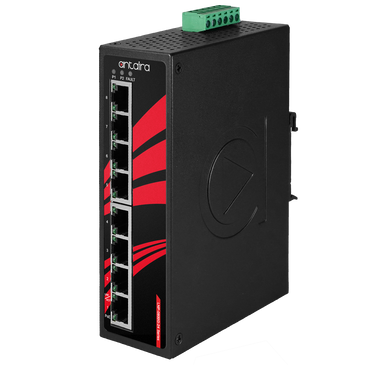

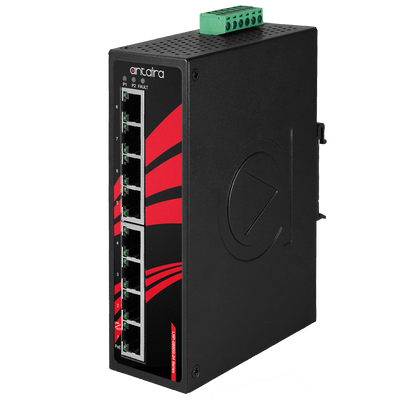

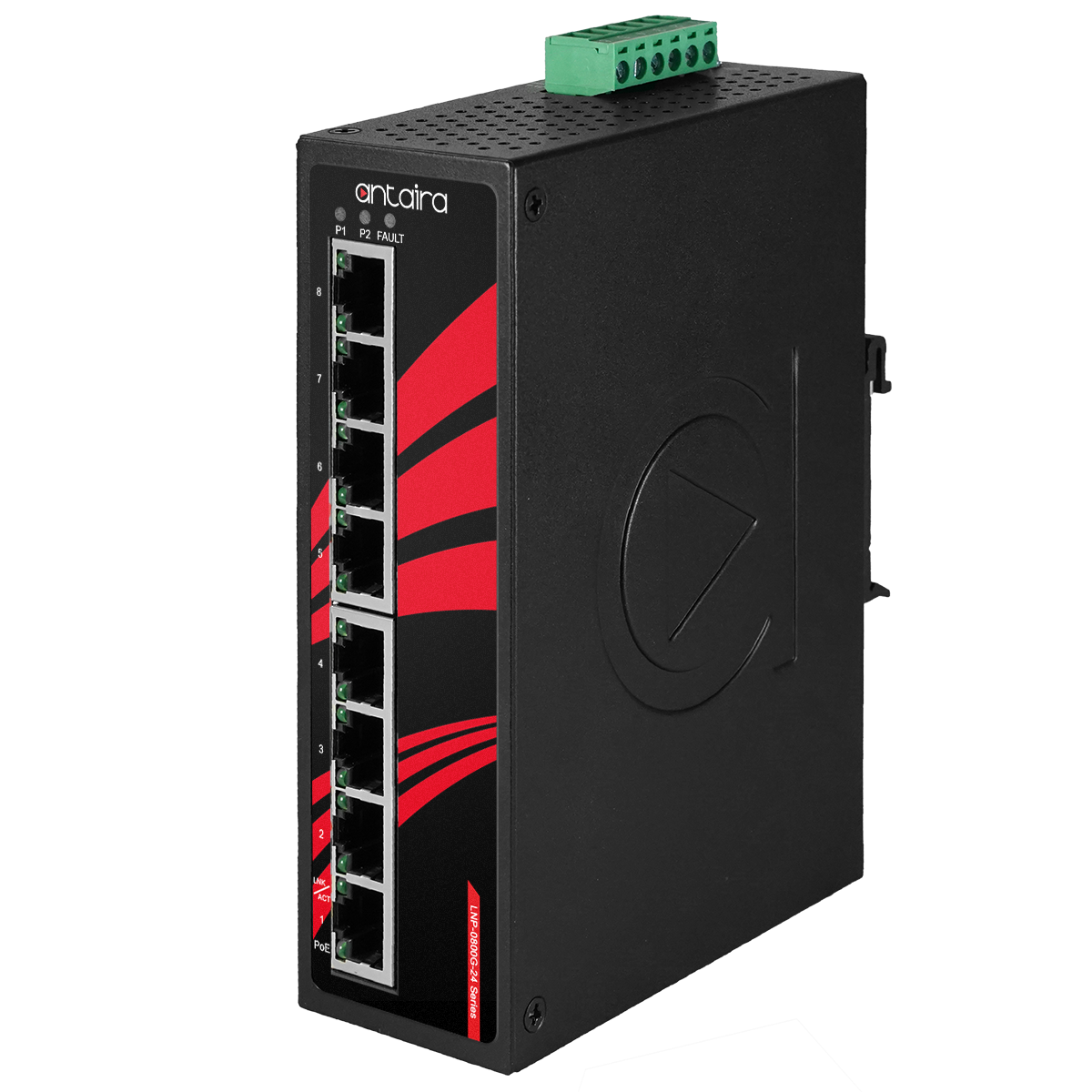

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-0800G-24-T
Overview Details for LNP-0800G-24-T
8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/8*10/100/1000Tx (30W/Port) | 9~55VDC Power Input; EOT: -40°C to 75°C
The LNP-0800G-24-T is an industrial gigabit unmanaged PoE+ Ethernet switch with P.S.E. function and a relay output of 24VDC at 1A. The LNP-0800G-24-T supports Power over Ethernet, a system that transmits electrical power along with data to remote devices over standard twisted-pair cable in an Ethernet network. The LNP-0800G-24-T supports wide-range 9~55VDC power inputs and generates up to 30W P.S.E. power output per port. The LNP-0800G-24-T switch has 8 X 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. With it's wide operating temperature range from -40°C to 75°C, it can satisfy most operating environments. TheLNP-0800G-24-T switch is one of the most reliable choices for PoE Ethernet applications.Features
- Provides 8x10/100/1000Base-T(X) PoE (P.S.E.) Ports
- Supports P.S.E. Based on IEEE 802.3at Standard up to 30 Watts per Port
- 9.6Kbytes Jumbo Frame Support
- Supports Dual Wide Range 9 ~ 55VDC Power Inputs for Power Redundancy
- Supports Auto-Negotiation and Auto-MDI/MDI-X
- Supports Store-and-Forward Transmission
- Supports Flow Control
- Rigid IP30 Housing Design
- DIN-Rail and Wall Mounting Enabled
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- Dust cover set
- LNP-0800G-24-T
- Quick Installation Guide
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201
- Dimensions
- 46 x 142 x 99 mm
- EMI
- FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2,;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 8*10/100/1000Base-TX (30W/Port);Auto-negotiation speed, Full/Half duplex mode, and Auto MDI/MDI-X connection
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 9~55VDC Redundant Input
- Jumbo Frame
- 9.6Kbytes
- LED Indicators
- System: Power 1, Power 2, Fault;Ethernet Ports: On-Link/Flash-data transmitting;PoE: On-connected to PD devices
- MAC Table Size
- 8K
- Max PoE Power Budget
- 60W@9VDC;90W@12VDC;150W@24VDC;200W@36VDC;240W@48~55VDC
- Memory Buffer
- 4Mbits
- Mounting
- DIN-Rail mounting, Wall mounting
- Network Cable
- 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m);1000BaseTX: 4-pair UTP/STP Cat. 5/5E cable; EIA/TIA-568 100-ohm (100m)
- Operating Temperature
- -40°C to 75°C
- Overload Current Protection
- Present
- PoE Pin Out
- V+, V+, V-, V-, for pin 1, 2, 3, 6;(End-span, MDI Alternative A)
- Power Connection
- 1 removable 6-contact terminal block
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT Gigabit Ethernet;IEEE 802.3af/at/bt Power over Ethernet
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 16Gbps
- System Power Consumption
- Max. 10W full loading
- Transfer Rate
- 14,880pps for Ethernet;148,800pps for Fast Ethernet;1,488,000pps for Gigabit Ethernet
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Weight
- Unit: 1.64 lbs.;Shipping: 2.05 lbs.
