LNP-0800-60-24-T | 8-Port Industrial PoE+/4PPoE Unmanaged Ethernet Switch | with 4*10/100Tx (30W/Port) and 4*10/100Tx (60W/Port) | 12~36VDC Power Input with extended operating temperature range. | Antaira

8-Port Industrial PoE+/4PPoE Unmanaged Ethernet Switch, with 4*10/100Tx (30W/Port) and 4*10/100Tx (60W/Port), 12~36VDC Power Input with extended operating temperature range.

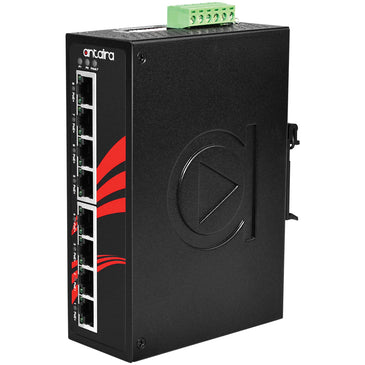

Antaira | LNP-0800-60-24-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-0800-60-24-T

Documents and manuals

Overview

Details for LNP-0800-60-24-T

8-Port Industrial PoE+/4PPoE Unmanaged Ethernet Switch | with 4*10/100Tx (30W/Port) and 4*10/100Tx (60W/Port) | 12~36VDC Power Input with extended operating temperature range.

Antaira Technologies' LNP-0800-60-24 is an industrial 4PPoE unmanaged Ethernet switch featuring 4*10/100Tx 4PPoE Type 3 ports and 4*10/100Tx PoE+. Port 1-4 support an IEEE 802.3bt Type 3 high power 4PPoE output up to 60W per port and port 5-8 support an IEEE 802.3at PoE+ output up to 30W per port.The LNP-0800-60-24-T is IP30 rated and DIN-rail mountable. This product has the standard operating temperature range -40°C to 75°C and provides Ethernet connectivity with 4PPoE / PoE+ functions ideal for outdoor or harsh industrial application environments, such as security surveillance, ITS-traffic monitoring systems, facility management for power/utility, water wastewater treatment plants, and automated production lines in factory automation.

Features

  • 4-Port IEEE 802.3at compliant PoE+ Function (30W/Port)
  • 4-Port IEEE 802.3bt compliant 4PPoEP (60W/Port)
  • Supports Auto MDI/MDI-X Function
  • Store-and-Forward Switching Architecture
  • 2K MAC Address Table
  • Network Broadcast Storm Protection
  • Surge Protection: 2,000 VDC support
  • ESD Protection: 6,000 VDC support
  • Redundant Power Input Design – 12~36VDC
  • Built-in 1 relay output for Port Break Alarm
  • IP30 Rugged Aluminum Case Design
  • DIN-Rail and Wall Mount support
  • Operating Temperature range - STD: -40° to 75°C
  • 5-Year Warranty

Included

  • LNP-0800-60-24-T
  • Quick Installation Guide
  • Wall Mounting Bracket Set with Screws

Specifications

Ambient Relative Humidity
5 to 95%, (non-condensing)
Certifications
FCC, CE
Dimensions
46 x 142 x 99 mm
EMI
FCC Class A
EMS
EN6100-4-2,3,4,5,6,8;EN6100-6-2,4
Ethernet Port
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection 8*10/100Tx
Flow Control
IEEE 802.3x back pressure flow control
Free Fall
IEC60068-2-32
Green
RoHS Compliant
Housing
Metal IP30 rated
Input Voltage & Connection
12~36VDC, Redundant Input w/ removable 6-contact terminal block
MAC Table Size
2K
Mounting
DIN-Rail; Wall-mount (optional)
Operating Temperature
-40°C to 75°C
Overload Current Protection
Slow-Blown Fuse
PoE Port Pin Assignment
V+ for pin 3, 4, 5, 6;V- for pin 1, 2, 7, 8
PoE Power Budget
210 Watts @ 12VDC;250 Watts @ 24~36VDC
PoE Power Output
Up to 60W @ 53VDC (port 1-4);Up to 30W @ 53VDC (port 5-8)
Processing Type
Store and forward
Protocols
CSMA/CD
Reverse Polarity Protection
Present
Shock
IEC60068-2-27
Standards
IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3x Flow Control and Back-Pressure;IEEE 802.3bt Power over Ethernet
Storage Temperature
-40°C ~ 85°C
Switching Architecture
Back-Plane (Switching Fabric): 1.0Gbps
