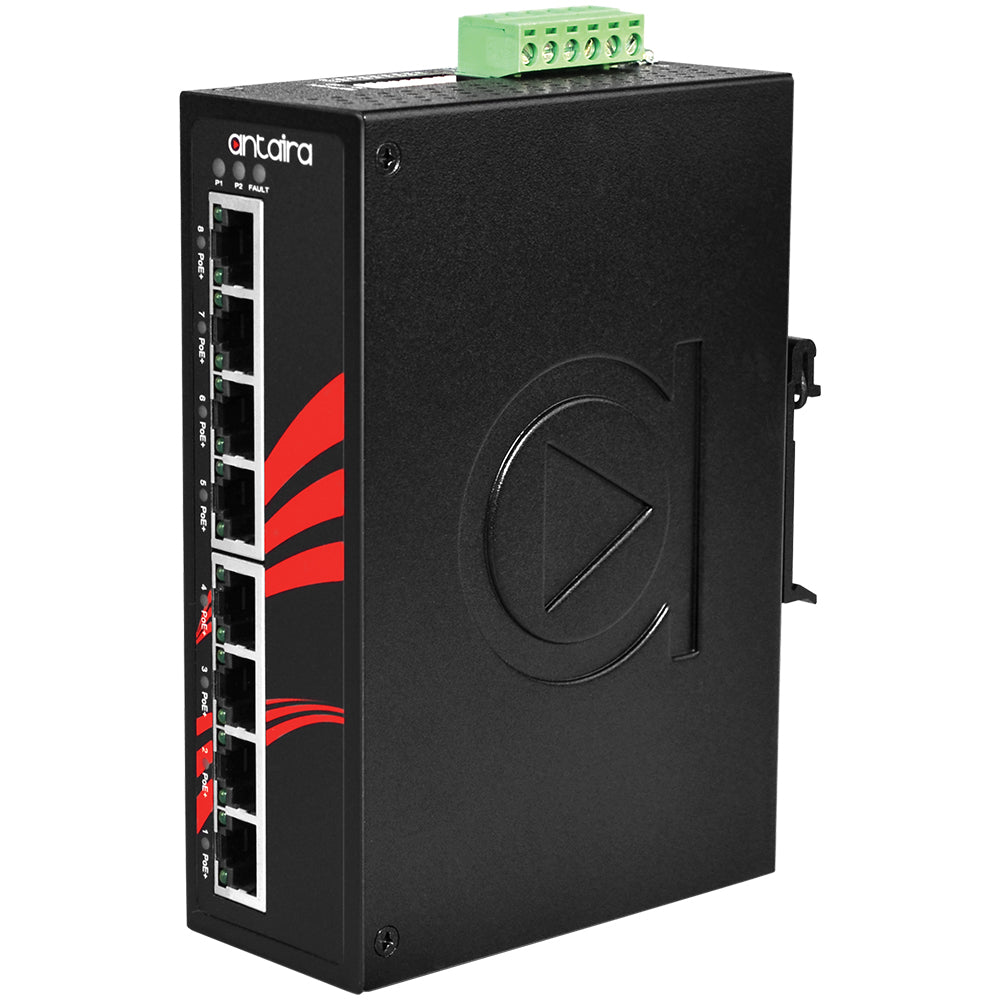

LNP-0800-60-24 | 8-Port Industrial PoE+/4PPoE Unmanaged Ethernet Switch | with 4*10/100Tx (30W/Port) and 4*10/100Tx (60W/Port) | 12~36VDC Power Input | Antaira

8-Port Industrial PoE+/4PPoE Unmanaged Ethernet Switch | with 4*10/100Tx (30W/Port) and 4*10/100Tx (60W/Port) | 12~36VDC Power Input

Antaira Technologies' LNP-0800-60-24 is an industrial 4PPoE unmanaged Ethernet switch featuring 4*10/100Tx 4PPoE Type 3 ports and 4*10/100Tx PoE+. Port 1-4 support an IEEE 802.3bt Type 3 high power 4PPoE output up to 60W per port and port 5-8 support an IEEE 802.3at PoE+ output up to 30W per port.The LNP-0800-60-24 is IP30 rated and DIN-rail mountable. This product has the standard operating temperature range -10°C to 70°C and provides Ethernet connectivity with 4PPoE / PoE+ functions ideal for outdoor or harsh industrial application environments, such as security surveillance, ITS-traffic monitoring systems, facility management for power/utility, water wastewater treatment plants, and automated production lines in factory automation.

Features

• 4-Port IEEE 802.3at compliant PoE+ Function (30W/Port)
• 4-Port IEEE 802.3bt compliant 4PPoEP (60W/Port)
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 2K MAC Address Table
• Network Broadcast Storm Protection
• Surge Protection: 2,000 VDC support
• ESD Protection: 6,000 VDC support
• Redundant Power Input Design – 12~36VDC
• Built-in 1 relay output for Port Break Alarm
• IP30 Rugged Aluminum Case Design
• DIN-Rail and Wall Mount support
• Operating Temperature range - STD: -10° to 70°C
• 5-Year Warranty

Included

• LNP-0800-60-24
• Quick Installation Guide
• Wall Mounting Bracket Set with Screws
