LNP-0800-24 | 8-Port Industrial PoE+ Unmanaged Ethernet Switch | w/8*10/100Tx (30W/Port) | 12VDC-36VDC | Antaira
8-Port Industrial PoE+ Unmanaged Ethernet Switch, w/8*10/100Tx (30W/Port), 12VDC-36VDC

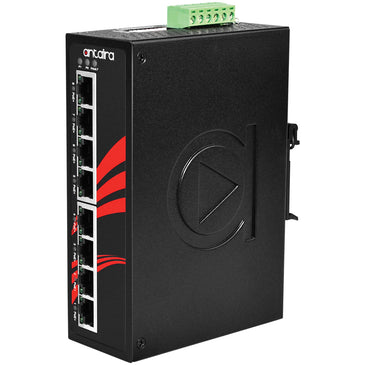

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-0800-24
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-0800-24 Documents
Overview
Details for LNP-0800-24
8-Port Industrial PoE+ Unmanaged Ethernet Switch | w/8*10/100Tx (30W/Port) | 12VDC-36VDC
Antaira’s LNP-0800 series switch is a smart 8-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 8. This switch is classified as power sourcing equipment (PSE), and when used in this way, the LNP-0800 series switch enables centralization of the power supply and provides up to 30 watts of power per port. The LNP-0800 series switch can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.Features
- Network broadcast storm protection
- 8-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC support
- ESD Protection: 6,000 VDC support
- UL Class I, Division 2 Certified
- Redundant Power Input Design – 12~36VDC
- Built-in 1 relay output for Port Break Alarm
- IP30 Rugged Aluminum Case Design
- DIN-Rail and Wall Mount support
- Operating Temperature range - STD: -10° to 70° C, EOT: -40° to 75° C
- 5-Year Warranty
Included
- LNP-0800-24
- Mounting Brackets
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL/cUL 508, ISA 12.12.01, Class 1 Div 2
- Connection
- 1 removable 4-contact terminal block
- Dimensions
- 46 x 142 x 99 mm (1.81 x 5.59 x 3.90 in.)
- EMI
- FCC Class A
- EMS
- EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8;EN6100-6-2; EN6100-6-4
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 12~36VDC, Redundant Input
- MAC Table Size
- 2K
- Mounting
- DIN-Rail mounting, wall mounting (optional)
- Operating Temperature
- STD: -10° to 70° C (14° to 158° F)
- Overload Current Protection
- Slow-Blown Fuse
- PoE Pin Out
- V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A)
- PoE Power Output
- 30W @ 48VDC (per PoE port)
- Power Consumption
- 145 Watts @ 12VDC; 200 Watts @ 24VDC
- Processing Type
- Store and Forward
- Reverse Polarity Protection
- Yes
- RJ45 Ports
- 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection;8*10/100Tx (PoE+)
- Shock
- EC60068-2-27
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3x Flow Control and Back-Pressure;IEEE 802.3at Power over Ethernet
- Storage Temperature
- -40°C ~ 85°C (-40°F ~ 185°F)
- Switching Architecture
- Back-Plane (Switching Fabric): 1.0Gbps;Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes
- Technology Protocol
- CSMA/CD
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Weight
- Unit Weight: 1.68 lbs. Shipping Weight: 2.0 lbs
