LNP-0702G-SFP-24-T | 7-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | with 410/100/1000Tx (30W/Port) | 110/100/1000Tx | and 2*100/1000 SFP Slots; 12~55VDC Power Input; EOT: -40°C to 75°C | Antaira

7-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, with 4*10/100/1000Tx (30W/Port), 1*10/100/1000Tx, and 2*100/1000 SFP Slots; 12~55VDC Power Input; EOT: -40°C to 75°C

Brand: AntairaSKU: LNP-0702G-SFP-24-T

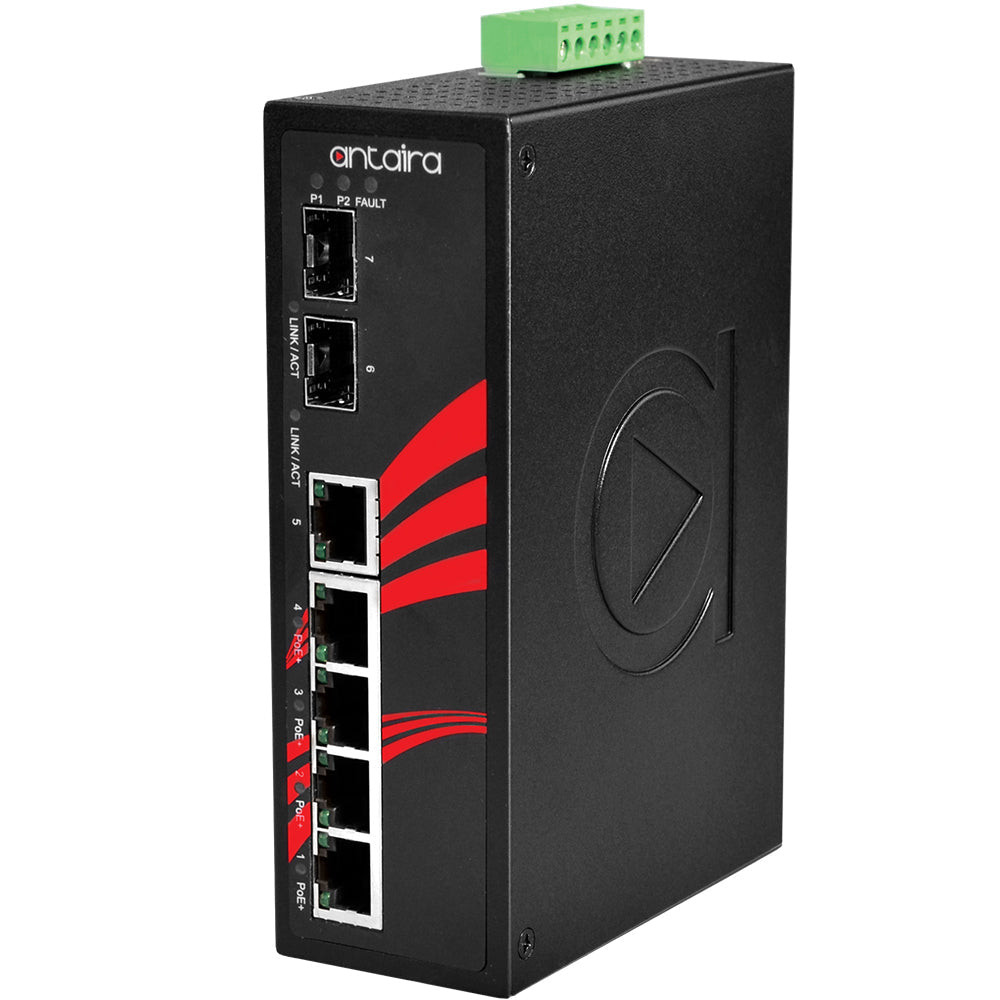

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNP-0702G-SFP-24-T

Overview & Specifications Reviews Parts & Accessories

Overview Details for LNP-0702G-SFP-24-T

7-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | with 4*10/100/1000Tx (30W/Port) | 1*10/100/1000Tx | and 2*100/1000 SFP Slots; 12~55VDC Power Input; EOT: -40°C to 75°C

Antaira’s LNP-0702G-SFP-24-T industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with five gigabit Ethernet ports that are IEEE 8023.at compliant (power-over-Ethernet plus) on ports 1-4 (30W/Port) and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication.This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.The LNP-0702G-SFP-24-T series meets IEEE 802.3at (30 Watts per port @ 53VDC), supports 12V ~ 55VDC power inputs and has an extended operating temperature range of -40 to 75°C perfectly designed to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments.

Features

Supports 4-Port 10/100/1000Tx IEEE 802.3at PoE+ Compliant with 30W per Port, 1-Port 10/100/1000Tx + 2-Port 100/1000 SFP
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
14Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~55VDC
Built-in 1 Relay Output for Power Failure Detection
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Operating Temperature Range - EOT: -40° to 75° C
5-Year Warranty

Included

1 x DC cable –18 AWG & DC Jack 5.5x2.1mm
1 x LNP-0702G-SFP-24-T
2 x Wall Mounting Bracket and Screws

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
Dimensions: 46 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A;CE EN55022/EN61000-6-4 Class A
EMS: CE EN55024/EN61000-6-2:;EN61000-4-2,3,4,5,6,8
Ethernet Port: 5*10/100/1000BaseTx with 4*PoE+ (PSE: 30W/Port);Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 rated
Input Voltage: 12~55VDC Redundant Input
Jumbo Frame: 9.6Kbytes
LED Indicators: System: Power 1, Power 2, Fault;Ethernet ports: Speed/Link/Active;SFP: Link/Active;PoE: On-connected to PD devices
MAC Table Size: 8K
Memory Buffer: 4Mbits
Mounting: DIN-Rail mounting, Wall mounting
Network Cable: 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: 4-pair UTP/STP Cat. 5/5E cable; EIA/TIA-568 100-ohm (100m)
Operating Temperature: -40°C to 75°C
Overload Current Protection: Present (Slow-Blown Fuse)
PoE Pin Out: V+, V+, V-, V-, for pin 1, 2, 3, 6;(Endspan, MDI Alternative A)
PoE Power Budget: 60W @ 12VDC;120W @ 36-55VDC
Power Connection: 1 removable 6-contact terminal block
Processing Type: Store and Forward
Protocols: CSMA/CD
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
SFP Port: 2*100/1000 SFP Slots
Shock: IEC60068-2-27
Standards: IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTx Fast Ethernet;IEEE 802.3ab 1000BaseTx Gigabit Ethernet;IEEE 802.3z Gigabit Fiber;IEEE 802.3af/at Power over Ethernet
Storage Temperature: -40°C ~ 85°C
Switching Architecture: Switching Fabric (Back-Plane): 14Gbps
System Power Consumption: 9W
Transfer Rate: 14,880pps for Ethernet;148,800pps for Fast Ethernet;1,488,000pps for Gigabit Ethernet
Vibration: IEC60068-2-6
Warranty: 5 Years
Weight: Unit: 1.81 lbs;Shipping: 2.23 lbs
