LNP-0702C-SFP-24-T | 7-Port Industrial PoE+ Unmanaged Ethernet Switch | with 410/100Tx (30W/Port) | 110/100Tx | and 2*100/1000 SFP Slots; 12~55VDC Power Input; EOT: -40°C to 75°C | Antaira

7-Port Industrial PoE+ Unmanaged Ethernet Switch, with 4*10/100Tx (30W/Port), 1*10/100Tx, and 2*100/1000 SFP Slots; 12~55VDC Power Input; EOT: -40°C to 75°C

Brand: AntairaSKU: LNP-0702C-SFP-24-T

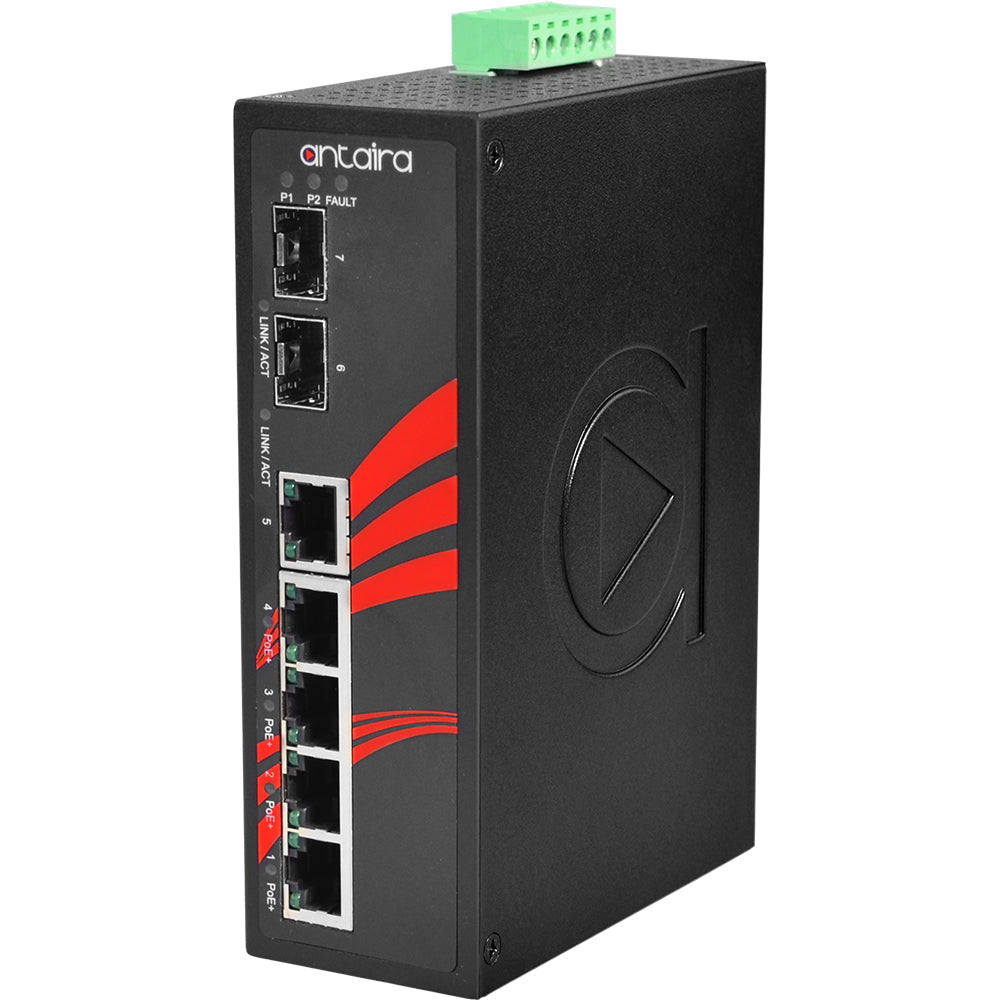

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNP-0702C-SFP-24-T

Overview & Specifications Reviews Parts & Accessories

Overview Details for LNP-0702C-SFP-24-T

7-Port Industrial PoE+ Unmanaged Ethernet Switch | with 4*10/100Tx (30W/Port) | 1*10/100Tx | and 2*100/1000 SFP Slots; 12~55VDC Power Input; EOT: -40°C to 75°C

Antaira’s LNP-0702C-SFP-24-T industrial gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable. Each unit is designed with five 10/100Tx Ethernet ports that are IEEE 802.3at compliant (power-over-Ethernet plus) on ports 1-4 (30W/Port) and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNP-0702C-SFP-24-T series supports a low voltage power input range of 12V ~ 55VDC. It also has two models: one with an operating temperature range of -10 to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a perfectly designed product to fulfill special needs within industrial automation, outdoor applications and harsh weather environments.

Features

Supports 4-Port 10/100Tx IEEE 802.3at PoE+ Compliant with 30W per Port, 1-Port 10/100Tx and 2-Port 100/1000 SFP Slots
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
5Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~55VDC
Built-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Operating Temperature Range - EOT: -40° to 75° C
5-Year Warranty

Included

DC cable –18 AWG to DC Jack 5.5x2.1mm
Din Rail & Wall Mounting Kits
LNP-0702C-SFP-24-T
Terminal Block

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
Dimensions: 46 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A;CE EN55022/EN61000-6-4 Class A
EMS: CE EN55024/EN61000-6-2:;EN61000-4-2,3,4,5,6,8
Ethernet Port: 5*10/100BaseTx with 4*PoE+ (PSE: 30W/Port);Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 rated
Input Voltage: 12~55VDC Redundant Input
Jumbo Frame: 9.6Kbytes
LED Indicators: System: Power 1, Power 2, Fault;Ethernet ports: Speed/Link/Active;SFP: Link/Active;PoE: On-connected to PD devices
MAC Table Size: 8K
Memory Buffer: 4Mbits
Mounting: DIN-Rail mounting, Wall mounting
Network Cable: 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
Operating Temperature: -40°C to 75°C
Overload Current Protection: Present (Slow-Blown Fuse)
PoE Pin Out: V+, V+, V-, V-, for pin 1, 2, 3, 6;(Endspan, MDI Alternative A)
PoE Power Budget: 60W @ 12VDC;120W @ 36-55VDC
Power Connection: 1 removable 6-contact terminal block
Processing Type: Store and Forward
Protocols: CSMA/CD
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Power Protection: Present
SFP Port: 2*100/1000 SFP Slots
Shock: IEC60068-2-27
Standards: IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3z Gigabit Fiber;IEEE 802.3af/at Power over Ethernet
Storage Temperature: -40°C ~ 85°C
Switching Architecture: Switching Fabric (Back-Plane): 5Gbps
System Power Consumption: 9W
Transfer Rate: 14,880pps for Ethernet;148,800pps for Fast Ethernet
Vibration: IEC60068-2-6
Warranty: 5 Years
Weight: Unit: 1.81 lbs;Shipping Weight: 1.93 lbs
