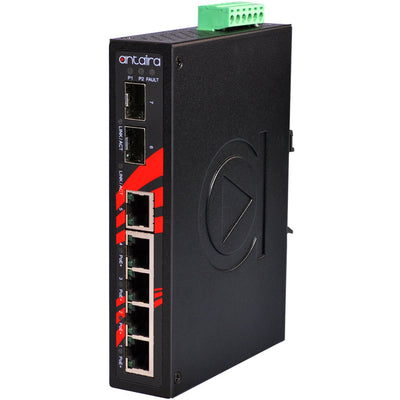

LNP-0702C-SFP | 7-Port Industrial PoE+ Unmanaged Ethernet Switch | with 4*10/100Tx (30W/Port) | 1*10/100Tx | and 2*100/1000 SFP Slots | Antaira

7-Port Industrial PoE+ Unmanaged Ethernet Switch | with 4*10/100Tx (30W/Port) | 1*10/100Tx | and 2*100/1000 SFP Slots

Antaira's LNP-0702C-SFP industrial gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable. Each unit is designed with five 10/100Tx Ethernet ports that are IEEE 802.3at compliant (power-over-Ethernet plus) on ports 1-4 (30W/Port) and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNP-0702C-SFP series includes two models: one with an operating temperature range of -10 to 70°C, and the other one with an extended operating temperature range of -40 to 75°C. It is a perfectly designed product to fulfill special needs within industrial automation, outdoor applications and harsh weather environments.

Features

• Supports 4-Port 10/100Tx IEEE 802.3at PoE+ Compliant with 30W per Port, 1-Port 10/100Tx and 2-Port 100/1000 SFP Slots
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 5Gbps Back-Plane (Switching Fabric)
• 8K MAC Address Table
• Surge Protection: 2,000 VDC Support
• ESD Protection: 6,000 VDC Support
• UL Class I, Division 2 Certified
• Redundant Power Input Design: 48~55VDC
• Built-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range - STD: -10° to 70° C
• 5-Year Warranty

Included

• DC cable –18 AWG to DC Jack 5.5x2.1mm
• Din Rail & Wall Mounting Kit
• LNP-0702C-SFP
• Terminal Block
