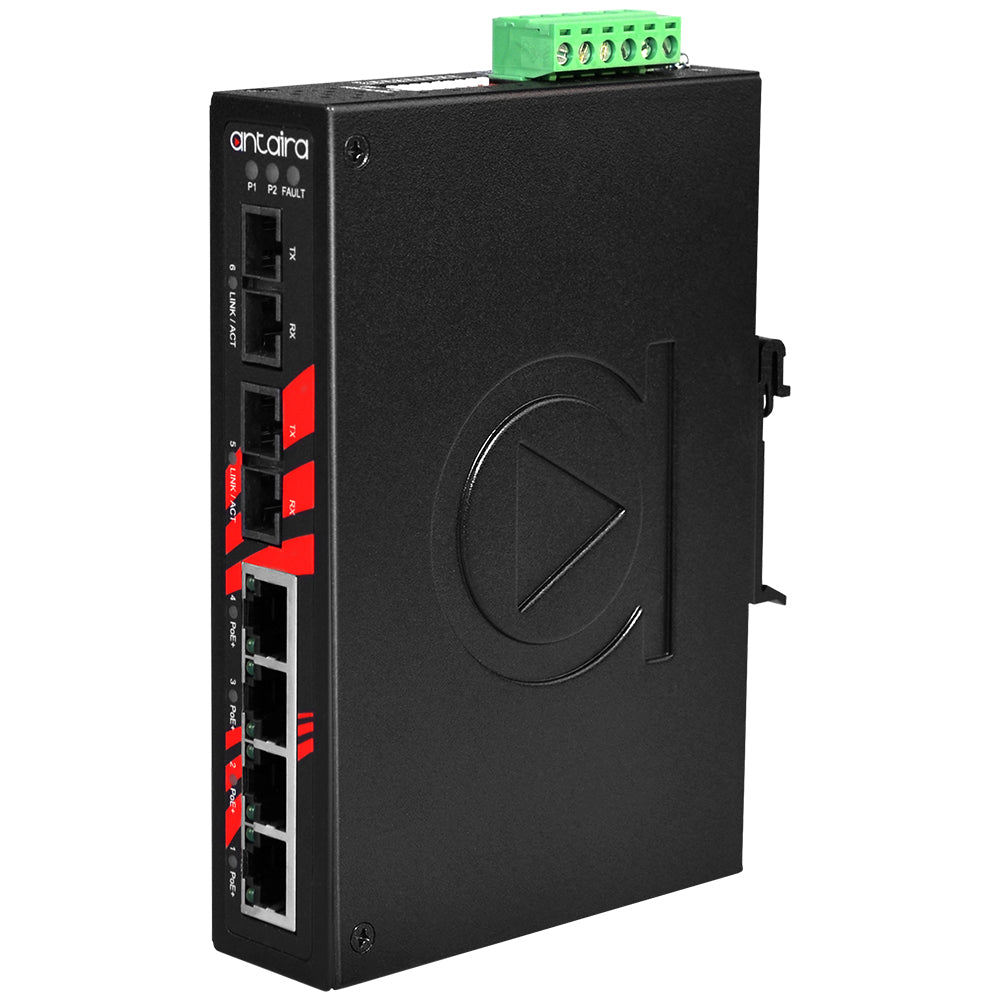

LNP-0602-M | 6-Port Industrial PoE+ Unmanaged Ethernet Switch | w/4*10/100Tx (30W/Port) | 2*100Fx Multi-mode 2Km | Antaira

6-Port Industrial PoE+ Unmanaged Ethernet Switch | w/4*10/100Tx (30W/Port) | 2*100Fx Multi-mode 2Km

Antaira’s LNP-0602 series switch is a smart 6-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 4. It comes with 2 x 100Fx ports with SC or ST type connectors and supports Multi-mode in 2Km, or Single-mode in 30Km.The LNP-0602 series switch supplies a power source up to 30 watts/per port @ 51~55VDC output; with 48~55VDC power input support. This series offers an Extended Operating Temperature model (w/-T) that supports -40°C ~ 75°C. It also supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.

Features

• Network broadcast storm protection
• 4-Ports IEEE 802.3at compliant PoE+ Function with 30W/Port
• 2-Ports 100Fx SC/ST type connector (Multi / Single mode)
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 2K MAC Address Table
• Surge Protection: 2,000 VDC support
• ESD Protection: 6,000 VDC support
• UL Class I, Division 2 Certified
• Redundant Power Input Design – 48~55VDC
• Built-in 1 relay output for Port Break Alarm
• IP30 Rugged Aluminum Case Design
• DIN-Rail and Wall Mount support
• Operating Temperature range - STD: -10° to 70° C, EOT: -40° to 75° C
• 5-Year Warranty

Included

• CD Manual
• LNP-0602-M
• Mounting Brackets
