LNP-0501-ST-M-24 | 5-Port Industrial PoE+ Unmanaged Ethernet Switch | w/4*10/100Tx (30W/Port) + 1*100Fx Multi-mode 2Km | ST Connectors | 12VDC-36VDC | Antaira
5-Port Industrial PoE+ Unmanaged Ethernet Switch, w/4*10/100Tx (30W/Port) + 1*100Fx Multi-mode 2Km, ST Connectors, 12VDC-36VDC

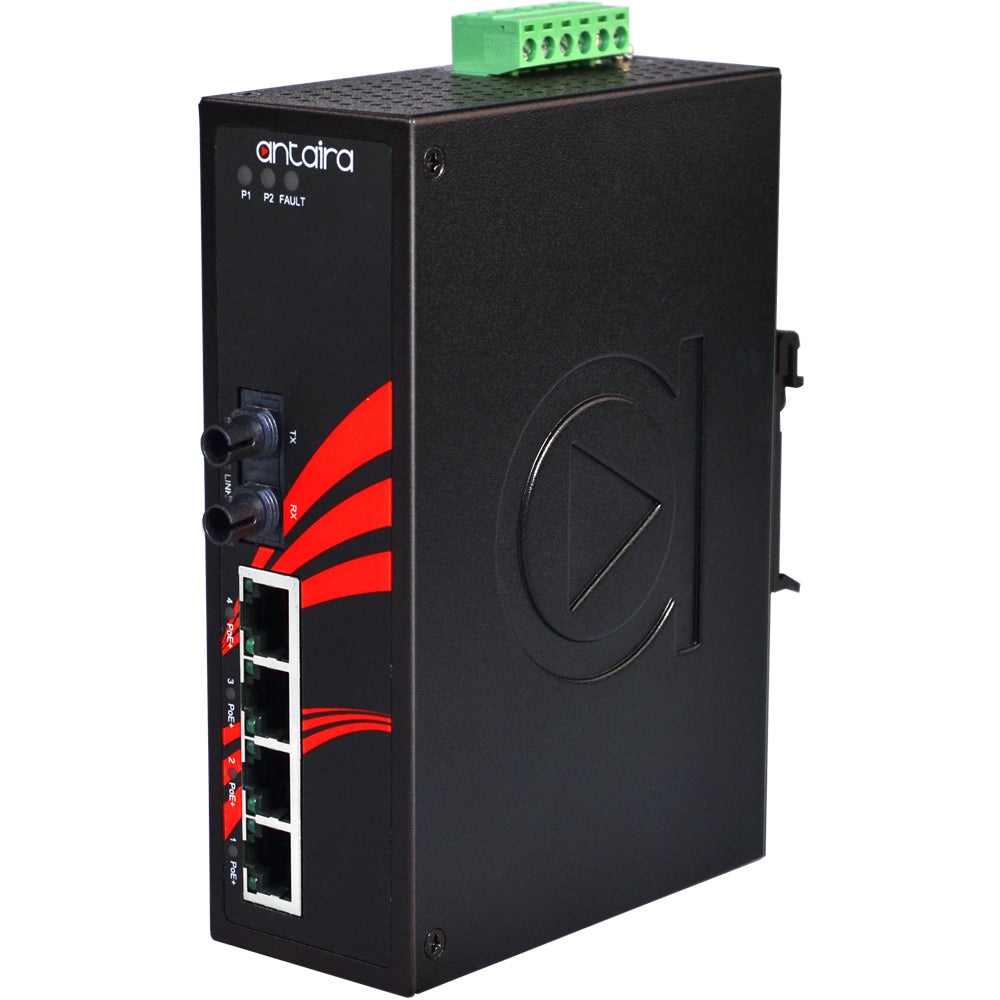

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-0501-ST-M-24
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-0501-ST-M-24 Documents
Overview
Details for LNP-0501-ST-M-24
5-Port Industrial PoE+ Unmanaged Ethernet Switch | w/4*10/100Tx (30W/Port) + 1*100Fx Multi-mode 2Km | ST Connectors | 12VDC-36VDC
Antaira Technologies’ LNP-0501-24 series is an industrial PoE+ unmanaged Ethernet switch featuring 4*10/100Tx Fast Ethernet RJ45 ports and 1*100Fx fiber port with SC or ST type connectors and an option for multi-mode (2Km) or single-mode (30Km). Each Ethernet port supports an IEEE 802.3at high power PoE+ output up to 30W per port, making it ideal for applications that demand a PoE power source. This product series provides a low voltage input range of 12~36VDC with an internal voltage booster to support a 48VDC PoE power output. The LNP-0501-24 series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides Ethernet connectivity with PoE functions and a fiber connection for mobile surveillance applications utilizing a low voltage power source as a battery, and for any other industrial automation field sites needing a 24VDC power source, such as, security surveillance, traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.Features
- 4-Port IEEE 802.3at Compliant PoE+ Function with 30W/Port
- 1-Port 100Fx ST Type Connector (Multi-mode 2Km)
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design – 12~36VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70°C
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
- 1 - LNP-0501-ST-M-24
- 2 - Wall Mounting brackets and screws
Specifications
- Certifications
- FCC, CE, UL/cUL 508, ISA 12.12.01, Class 1 Div 2
- Dimensions
- 46 x 142 x 99 mm
- EMI
- FCC Class A
- EMS
- IEC6100-4-2,3,4,5,6,8 / IEC6100-6-2,4
- Ethernet Port
- 4*RJ45 Ports w/10/100Tx (PSE: 30W/Port)
- Fiber Port
- 1*100Fx (ST); Multi-mode 2Km
- Free Fall / Shock / Vibration
- IEC60068-2-32 / 27 / 6
- Green
- RoHS Compliant
- Housing / Mounting
- Metal, IP30 Protection, DIN-Rail or Wall Mounting
- Humidity
- 5 to 95%, (non-condensing)
- Input Voltage & Connection
- 12~36VDC, 6-Pin Terminal Block Redundant Input
- MAC Table Size
- 2K
- Operating Temperature
- STD: -10 to 70°C
- Overload Current Protection
- Present
- PoE Pin Out
- V+, V+, V-, V- for pin s 1,2,3,6;Endspan, MDI Alternative A
- Power Consumption
- 145W @12~36VDC
- Reverse Polarity Power Protection
- Present
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3x Flow Control and Back-Pressure;IEEE 802.3at Power over Ethernet
- Storage Temperature
- -40°C ~ 85°C
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
- Warranty
- 5 Years
- Wavelength
- 1310nm
- Weight
- Unit: 1.68 lbs; Shipping: 2.0 lbs
