LNP-0501-S3-T | 5-Port Industrial PoE+ Unmanaged Ethernet Switch w/4*10/100TX (30W/Port) + 1*100Fx Signle-mode 30Km; EOT: -40~75C | Antaira

5-Port Industrial PoE+ Unmanaged Ethernet Switch w/4*10/100TX (30W/Port) + 1*100Fx Signle-mode 30Km; EOT: -40~75C

Antaira | LNP-0501-S3-T

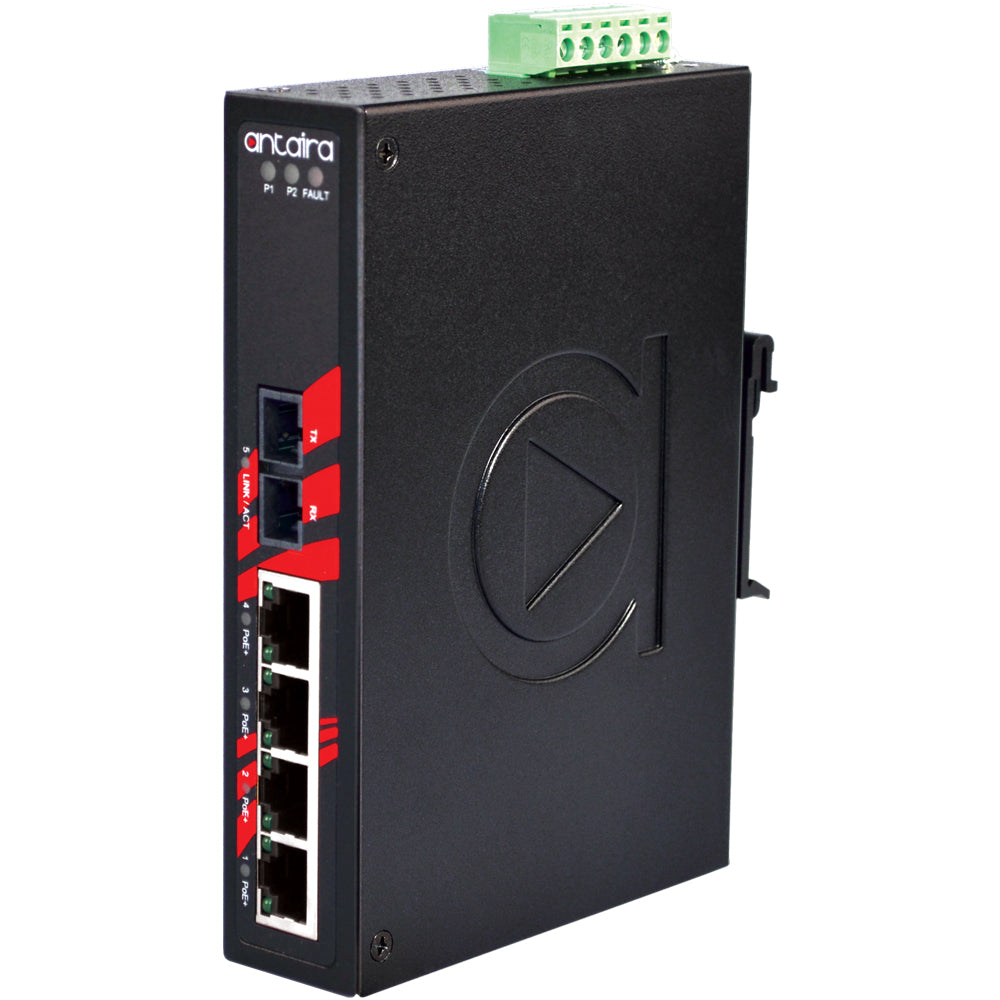

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-0501-S3-T

Documents and manuals

Antaira LNP-0501-S3-T Documents

Overview

Details for LNP-0501-S3-T

5-Port Industrial PoE+ Unmanaged Ethernet Switch w/4*10/100TX (30W/Port) + 1*100Fx Signle-mode 30Km; EOT: -40~75C

Antaira Technologies’ LNP-0501 series is an industrial PoE+ unmanaged Ethernet switch featuring 4*10/100Tx Fast Ethernet RJ45 ports and 1*100Fx fiber port with SC or ST type connectors and an option for multi-mode (2Km) or single-mode (30Km). Each Ethernet port supports an IEEE 802.3at high power PoE+ output up to 30W per port, making it ideal for applications that demand a PoE power source. The LNP-0501 series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides Ethernet connectivity with PoE functions and a fiber connection for outdoor or harsh industrial automation application environments, such as, security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Features

  • Network broadcast storm protection
  • 4-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
  • 1-Port 100Fx SC/ST type connector (Multi / Single mode)
  • Supports Auto MDI/MDI-X Function
  • Store-and-Forward Switching Architecture
  • 2K MAC Address Table
  • Surge Protection: 2,000 VDC support
  • ESD Protection: 6,000 VDC support
  • UL Class I, Division 2 Certified
  • Redundant Power Input Design – 48~55VDC
  • Built-in 1 relay output for Port Break Alarm
  • IP30 Rugged Aluminum Case Design
  • DIN-Rail and Wall Mount support
  • Operating Temperature range - STD: -10° to 70° C, EOT: -40° to 75° C
  • 5-Year Warranty

Included

  • 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
  • 1 - LNP-0501-S3-T
  • 2 - Wall Mounting brackets and screws

Specifications

Ambient Relative Humidity
5 to 95%, (non-condensing)
Certifications
FCC, CE, UL/cUL 508, ISA 12.12.01, Class 1 Div 2
Connection
1 removable 4-contact terminal block
Dimensions
30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.)
EMI
FCC Class A
EMS
EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8;EN6100-6-2; EN6100-6-4
Fiber Port
1*100Fx SC type connector Single-mode (30Km) - 9/125um ~ 10/125um
Flow Control
IEEE 802.3x flow control, back pressure flow control
Free Fall
IEC60068-2-32
Green
RoHS Compliant
Housing
Metal, IP30 protection
Input Voltage
48~55VDC, Redundant Input
MAC Table Size
2K
Mounting
DIN-Rail mounting, wall mounting (optional)
Operating Temperature
EOT: -40° to 75° C (-40° to 167° F)
Overload Current Protection
Slow-Blown Fuse
PoE Pin Out
V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A)
PoE Power Output
25W @ 48VDC (per PoE port); 30W @ 51~55VDC (per PoE port)
Power Consumption
110 Watts @ 48VDC; 130 Watts @ 51~55VDC
Processing Type
Store and Forward
Reverse Polarity Protection
Yes
RJ45 Ports
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection;4*10/100Tx (PoE+)
Shock
IEC60068-2-27
Standards
IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE802.3x Flow Control and Back-Pressure;IEEE 802.3at Power over Ethernet
Storage Temperature
-40°C ~ 85°C (-40°F ~ 185°F)
Switching Architecture
Back-Pane (Switching Fabric): 1.9 Gbps;Packet Throughout Ability (Full-Duplex): 1.488Mpps @64bytes
Technology Protocol
CSMA/CD
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
Vibration
IEC60068-2-6
Warranty
5 Years
Wavelength
1310nm (Single-mode)
Weight
Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs
