LNP-0501-M-T | 5-Port Industrial PoE+ Unmanaged Ethernet Switch w/4*10/100TX (30W/Port) + 1*100Fx Multi-mode 2Km; EOT: -40~75C | Antaira

5-Port Industrial PoE+ Unmanaged Ethernet Switch w/4*10/100TX (30W/Port) + 1*100Fx Multi-mode 2Km; EOT: -40~75C

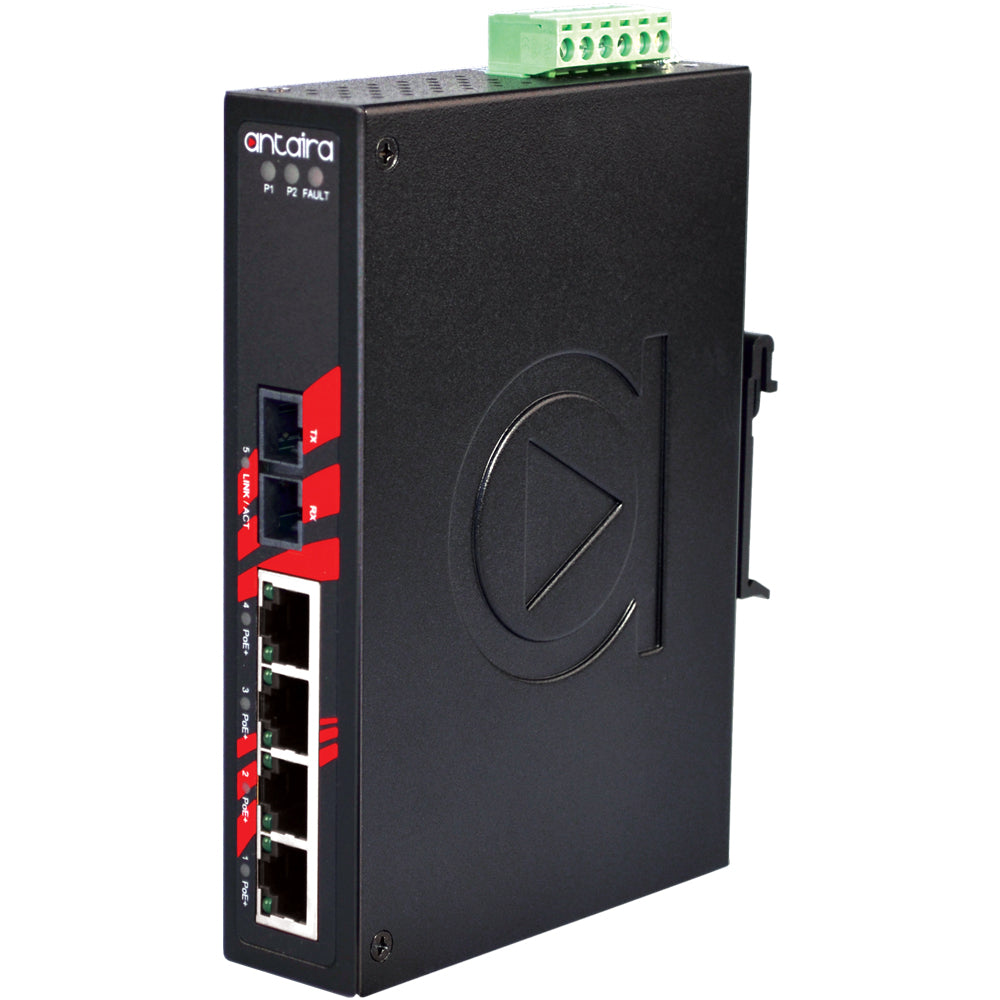

Antaira Technologies’ LNP-0501-M-T is an industrial PoE+ unmanaged Ethernet switch featuring 4*10/100Tx Fast Ethernet RJ45 ports and 1*100Fx fiber port with SC or ST type connectors and an option for multi-mode (2Km) or single-mode (30Km). Each Ethernet port supports an IEEE 802.3at high power PoE+ output up to 30W per port, making it ideal for applications that demand a PoE power source. The LNP-0501-M-T is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides Ethernet connectivity with PoE functions and a fiber connection for outdoor or harsh industrial automation application environments, such as, security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Features

• Network broadcast storm protection
• 4-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
• 1-Port 100Fx SC/ST type connector (Multi / Single mode)
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 2K MAC Address Table
• Surge Protection: 2,000 VDC support
• ESD Protection: 6,000 VDC support
• UL Class I, Division 2 Certified
• Redundant Power Input Design – 48~55VDC
• Built-in 1 relay output for Port Break Alarm
• IP30 Rugged Aluminum Case Design
• DIN-Rail and Wall Mount support
• Operating Temperature range - STD: -10° to 70° C, EOT: -40° to 75° C
• 5-Year Warranty

Included

• 1 - DC cable –18 AWG & DC jack 5.5x2.1mm
• 1 - LNP-0501-M-T
• 2 - Wall Mounting brackets and screws
