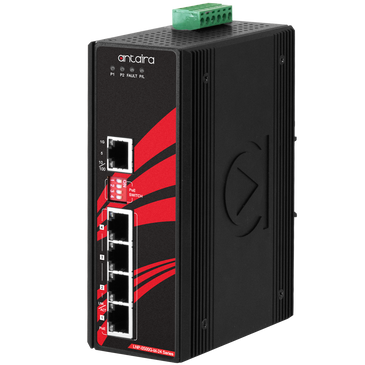

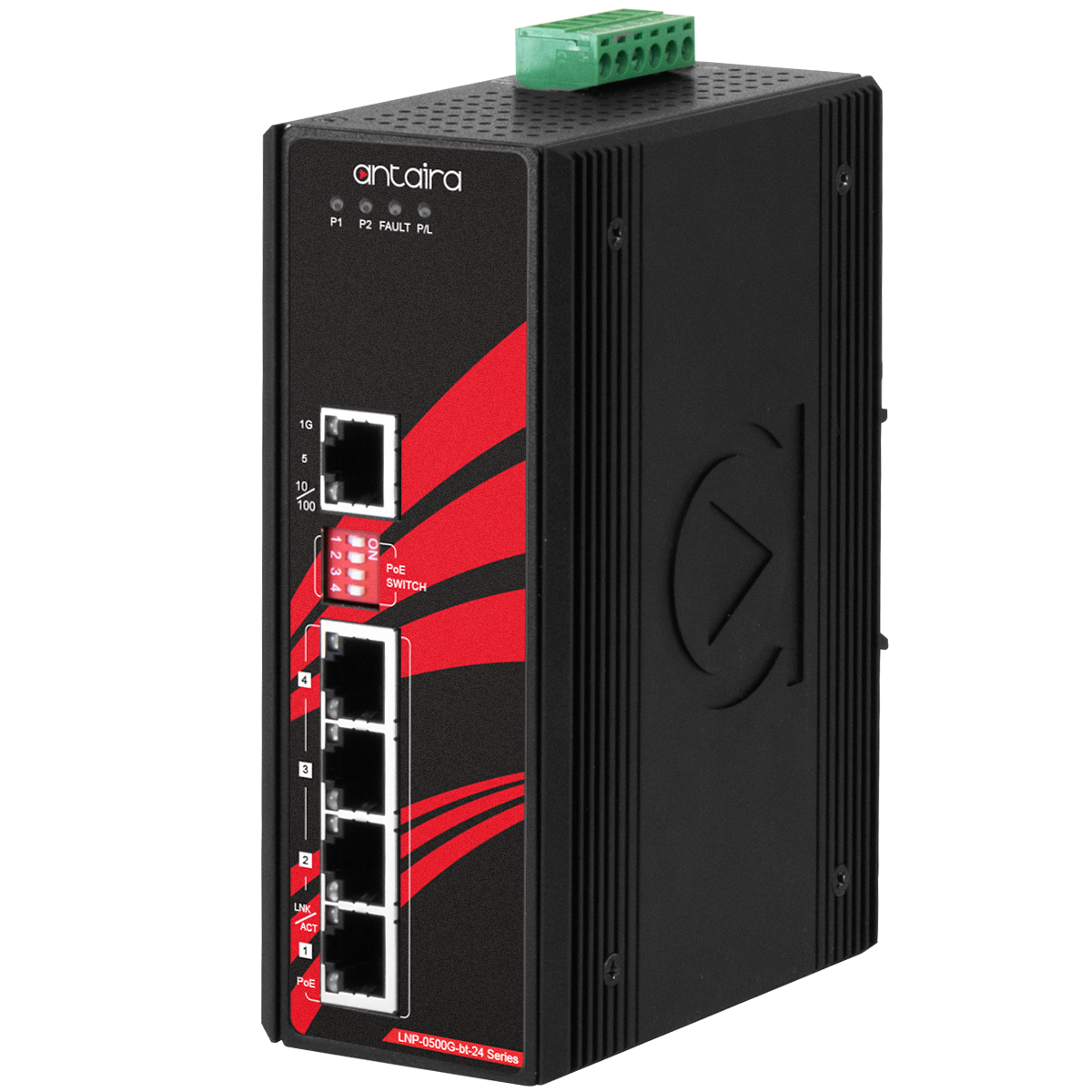

LNP-0500G-bt-24-T | 5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | w/410/100/1000Tx (90W/Port) and 110/100/1000Tx; 12~55VDC Power Input; EOT: -40°C~75°C | Antaira

5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, w/4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx; 12~55VDC Power Input; EOT: -40°C~75°C

Brand: AntairaSKU: LNP-0500G-bt-24-T

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNP-0500G-bt-24-T

Overview & Specifications Reviews Parts & Accessories

Overview Details for LNP-0500G-bt-24-T

5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx; 12~55VDC Power Input; EOT: -40°C~75°C

Antaira Technologies’ LNP-0500G-bt-24-T is an industrial gigabit PoE++ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3bt for a maximum of 90W/port and 1*10/100/1000Tx Ethernet port. The LNP-0500G-bt-24-T is an ideal solution for rapid, unmanaged gigabit network expansion with PoE++ capabilities.The LNP-0500G-bt-24-T is IP30 rated and DIN-rail mountable. There are also an extended temperature range: -40°C to 75°C. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Features

Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*10/100/1000Tx Ethernet Port
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
10.0Kbytes Jumbo Frame Support
Redundant Power Input Design: 12~55VDC
Built-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support Included
Extended Operating Temperature: -40°~75°C
5-Year Warranty

Included

DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
LNP-0500G-bt-24-T
Quick Installation Guide
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE
Dimensions: 54 x 142 x 99 mm
Dip Switch: Control PoE function by port
EMI: FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2 Class A:;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 4*10/100/1000Tx (PSE: 90W/Port) + 1*10/100/1000Tx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 protection
Input Voltage: 12~55VDC Redundant Input
Jumbo Frame: 10Kbytes
LED Indicators: System: Power 1, Power 2, Fault, PoE Load (P/L);Ethernet Ports: Speed/Link/Active;PoE: On-connected to PD devices
MAC Table Size: 8K
Max PoE Power Budget: 90W @12VDC;180W @24~55VDC
Mounting: DIN-Rail mounting, Wall mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: UTP/STP Cat.5/5E cable EIA/TIA-568 100-ohm (100m)
Operating Temperature: -40°C to 75°C
Overload Current Protection: Present
Packet Buffer: 1Mbit
PoE Pin Out: V-, V-, V+, V+, for pin 1, 2, 3, 6;V+, V+, V-, V-, for pin 4, 5, 7, 8
PoE Port Priority: Port 1>Port 2>Port 3>Port 4
PoE Power Output: 90W max. per PoE port
Power Connection: 1 removable 6-contact terminal block
Power Consumption: 5W
Power Reverse Polarity Protection: Present
Processing Type: Store and Forward
Relay Contact: 24VDC, 1A resistive
Shock: IEC60068-2-27
Standards: IEEE 802.3 10Tx Ethernet;IEEE 802.3u 100Tx Fast Ethernet;IEEE 802.3ab 1000Tx Gigabit Ethernet;IEEE 802.3at/af/bt Power over Ethernet
Storage Temperature: -40°C ~ 85°C
Switching Architecture: Back-Plane (Switching Fabric): 10.0Gbps
Transfer Rate: 14,880pps for 10Base-T Ethernet;148,800pps for 100Base-T Fast Ethernet;1,488,000pps for 1000Base-T Gigabit Ethernet
Vibration: IEC60068-2-6
Warranty: 5 Years
Weight: Unit: 2.18 lbs.;Shipping: 2.84 lbs.
