LNP-0500G-bt | 5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx | Antaira

5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx

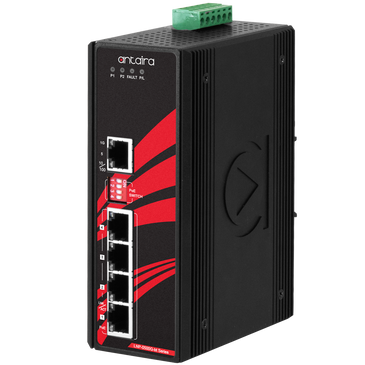

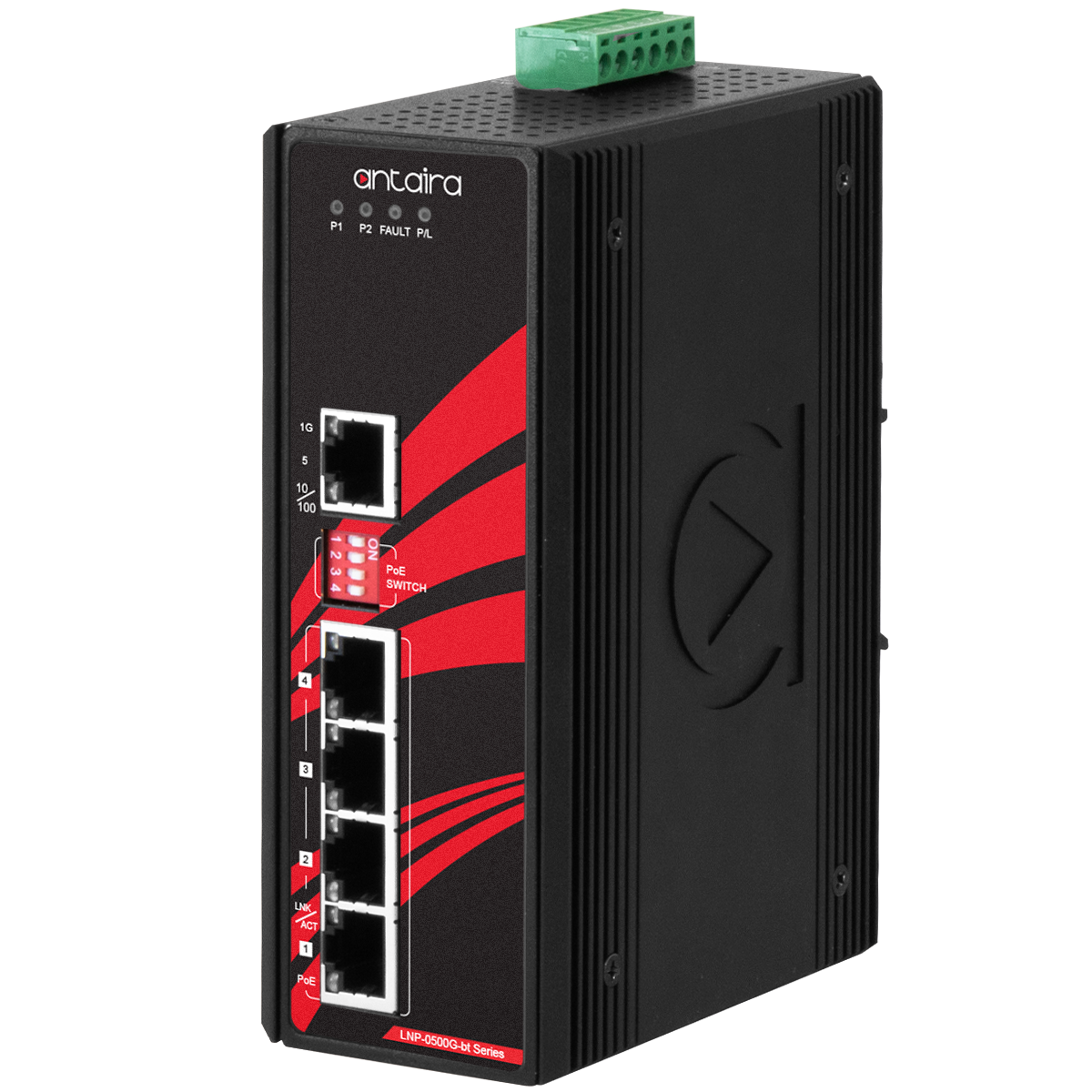

Antaira Technologies’ LNP-0500G-bt is an industrial gigabit PoE++ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port and 1*10/100/1000Tx Ethernet port. The LNP-0500G-bt is an ideal solution for rapid, unmanaged gigabit network expansion with PoE++ capabilities.The LNP-0500G-bt is IP30 rated and DIN-rail mountable. There are also a standard temperature range (STD: -10°C to 65°C). It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Features

• Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*10/100/1000Tx Ethernet Port
• Store-and-Forward Switching Architecture
• 10Gbps Back-Plane (Switching Fabric)
• 8K MAC Address Table
• 10.0Kbytes Jumbo Frame Support
• Redundant Power Input Design: 48~55VDC
• Built-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support Included
• Standard Operating Temperature: -10°~65°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• LNP-0500G-bt
• Quick Installation Guide
• Wall mounting bracket set with screws
