LNP-0500G-24-T | 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx with Wide Operating Temp and Low 12-36VDC input | Antaira

5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx with Wide Operating Temp and Low 12-36VDC input

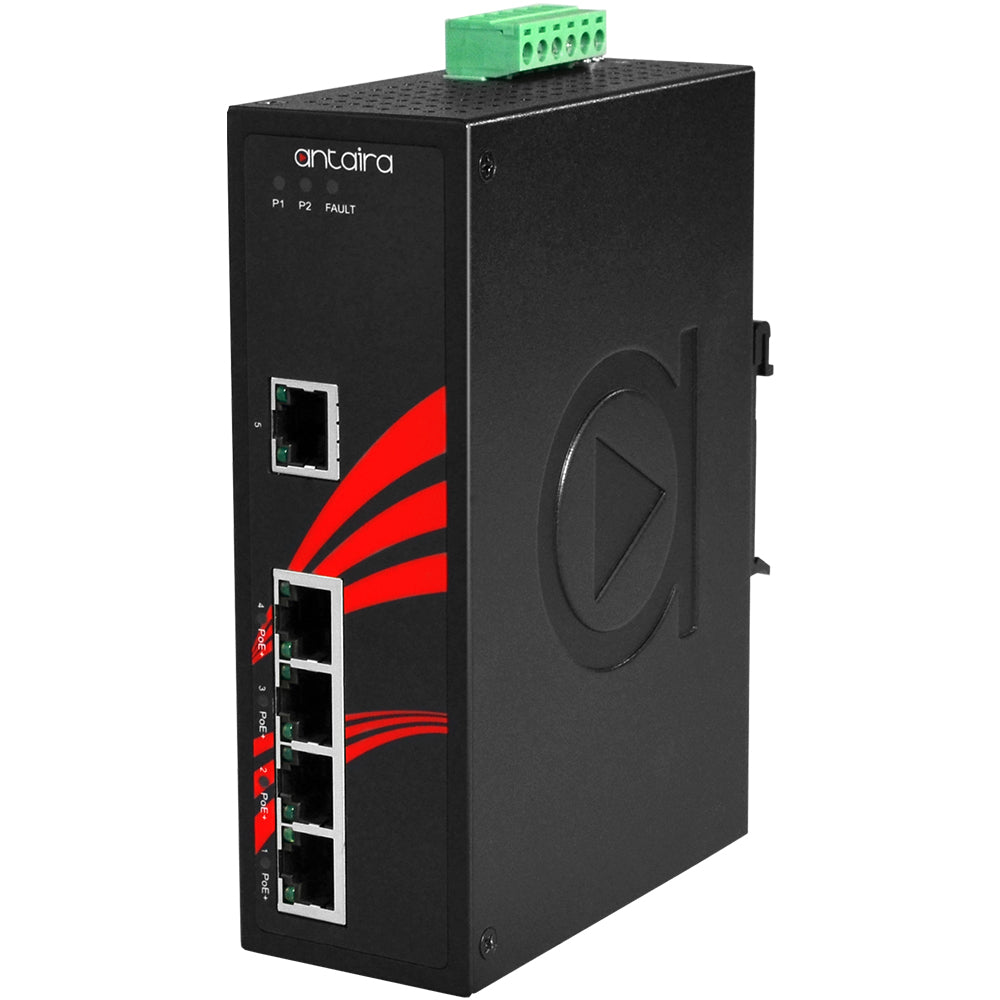

Antaira Technologies’ LNP-0500G-24-T is an industrial gigabit PoE+ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. The LNP-0500G-24 is an ideal solution for rapid, unmanaged gigabit network expansion with PoE+ capabilities. The LNP-0500G-24-T is IP30 rated and DIN-rail mountable and has an extended temperature range -40°C to 75°C. This product also supports a low voltage power input range of 12~36VDC. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as, security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.

Features

• Supports 4*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, and 1*10/100/1000Tx Port, Auto MDI
• Store-and-Forward Switching Architecture
• 10Gbps Back-Plane (Switching Fabric)
• 8K MAC Address Table
• 9.6Kbytes Jumbo Frame Support
• Surge Protection 2,000 VDC Support
• ESD Protection 6,000 VDC Support
• UL Class I, Division 2 Certified
• Redundant Power Input Design: 12~36VDC
• Built-in 1 Relay Output for Power Failure Warning
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support Included
• Operating Temp. - EOT: -40~75C
• 5-Year Warranty

Included

• 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
• 1 - LNP-0500G-24-T
• 2 - Wall Mounting Brackets and Screws
