LNP-0500G | 5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx | Antaira
5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx

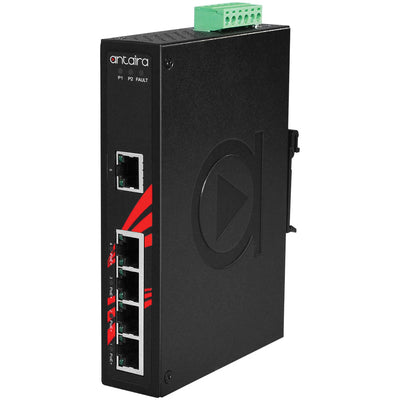

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-0500G
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-0500G Documents
Overview
Details for LNP-0500G
5-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | w/4*10/100/1000Tx (30W/Port) + 1*10/100/1000Tx
Antaira Technologies’ LNP-0500G is an industrial gigabit PoE+ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3af/at for a maximum of 30W/port and 1*10/100/1000Tx Ethernet port. The LNP-0500G is an ideal solution for rapid, unmanaged gigabit network expansion with PoE+ capabilities.The LNP-0500G is IP30 rated and DIN-rail mountable and has a standard operating temperature range of -10°C to 70°C. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as, security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.Features
- Supports 4*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port, and 1*10/100/1000Tx Ethernet Port, Auto MDI
- Store-and-Forward Switching Architecture
- 10Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 10.0Kbytes Jumbo Frame Support
- Surge Protection 2,000 VDC Support
- ESD Protection 6,000 VDC Support
- UL Class I, Division 2 Certified
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support Included
- Operating Temp. - STD: -10~70C
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
- 1 - LNP-0500G
- 2 - Wall Mounting Brackets and Screws
Specifications
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
- Dimensions
- 30 x 142 x 99 mm
- Ethernet Port
- 4*10/100/1000Tx (PSE: 30W/Port) +1*10/100/1000 auto negotiation speed, Full/Half duplex mode, and auto MDI connection
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall / Shock / Vibration
- IEC60068-2-32, 2-27, 2-6
- Green
- RoHS Compliant
- Housing / Mounting
- Metal IP30 Rated / DIN-Rail; Wall-Mount (Optional)
- Input Voltage & Connection
- 48~55VDC Redundant Input w/ 1 removable 6-contact terminal block
- Jumbo Frame
- 10.0K
- Operating Temperature
- STD: -10 to 70°C
- Overload Current Protection
- Present
- PoE Pin Out
- V+, V+, V-, V- for pin s 1,2,3,6;Endspan, MDI Alternative A
- Power Consumption
- 110Watts@48V;130Watts@51-55V
- Power Reverse Polarity Protection
- Present
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Standards
- IEEE 802.3, u, ab, at, af
- Warranty
- 5 Years
- Weight
- Unit: 1.1 lbs.; Shipping: 1.6 lbs.
