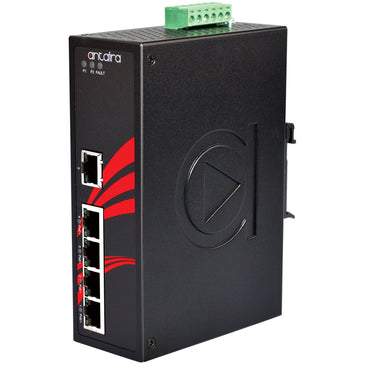

LNP-0500-24-T | 5-Port Industrial PoE+ Unmanaged Ethernet Switch | w/4*10/100Tx (30W/Port) + 1*10/100Tx | 12~36VDC | EOT: -40~75C | Antaira

5-Port Industrial PoE+ Unmanaged Ethernet Switch | w/4*10/100Tx (30W/Port) + 1*10/100Tx | 12~36VDC | EOT: -40~75C

Antaira’s LNP-0500 series switch is a smart 5-port Industrial Unmanaged Ethernet Switch supporting IEEE-802.3at compliance (Power-over-Ethernet Plus) on ports 1 to 4. The switch is classified as power sourcing equipment (PSE), and when used in this way, the LNP-0500 series switch enables centralization of the power supply and provides up to 30 watts of power per port. The LNP-0500 can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.

Features

• Network broadcast storm protection
• 4-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
• 1-Port 10/100Tx Fast Ethernet
• Supports Auto MDI/MDI-X Function
• Store-and-Forward Switching Architecture
• 2K MAC Address Table
• Surge Protection: 2,000 VDC support
• ESD Protection: 6,000 VDC support
• UL Class I, Division 2 Certified
• Redundant Power Input Design - 12~36VDC
• Built-in 1 relay output for Port Break Alarm
• IP30 Rugged Aluminum Case Design
• DIN-Rail and Wall Mount support
• Operating Temperature range EOT: -40° to 75° C
• 5-Year Warranty

Included

• LNP-0500-24-T
• Mounting Brackets
