26-Port Industrial Gigabit Managed Ethernet Switch, w/24*10/100/1000Tx RJ45 and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots)

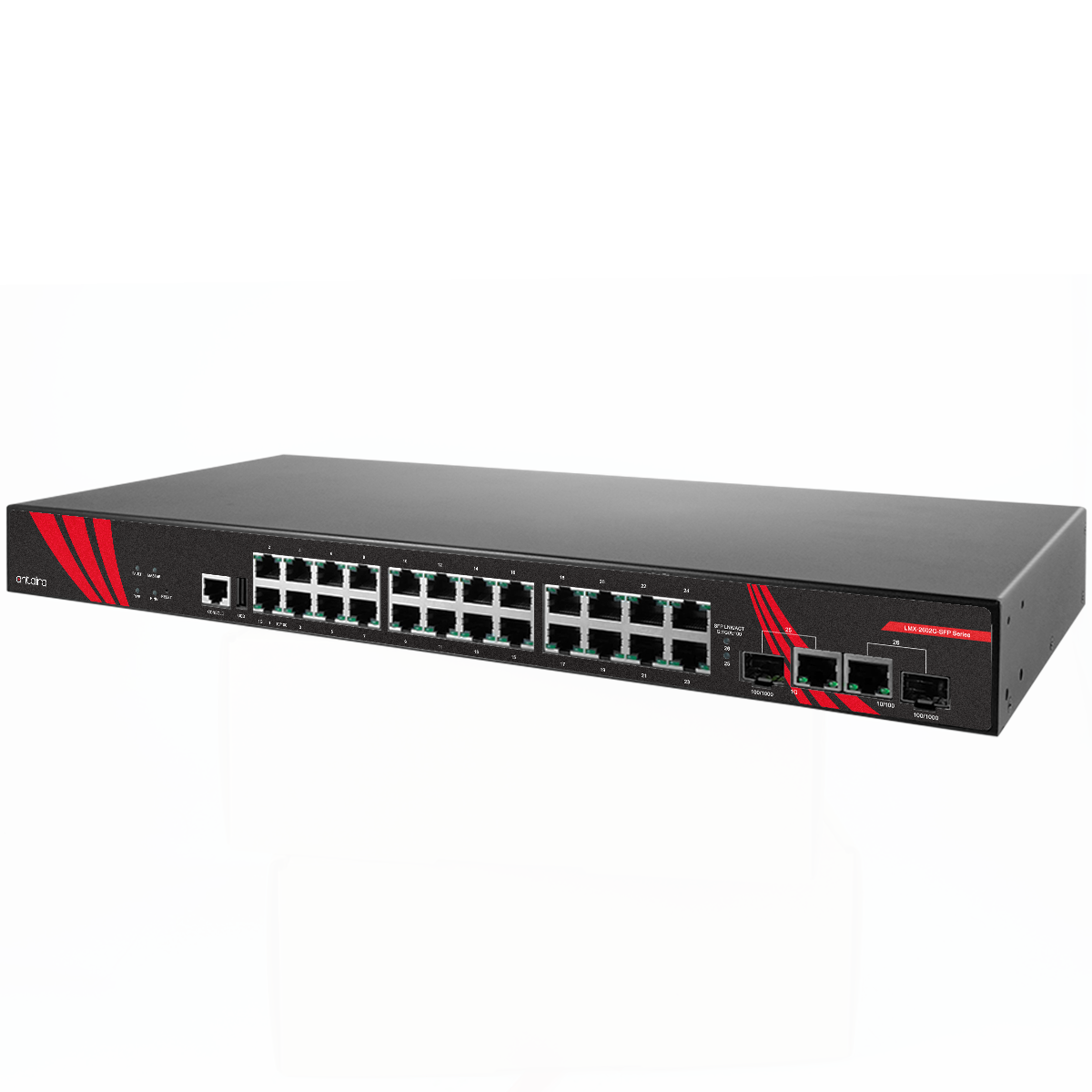

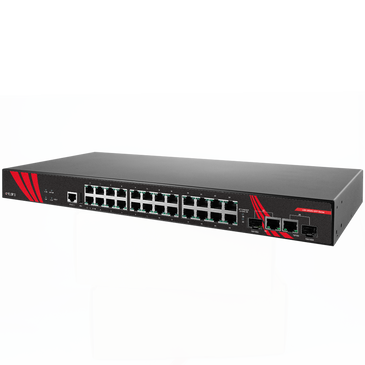

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMX-2602G-SFP

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira LMX-2602G-SFP Documents

Hardware Manual Product Datasheet Software Manual More Info

Overview

Details for LMX-2602G-SFP

26-Port Industrial Gigabit Managed Ethernet Switch | w/24*10/100/1000Tx RJ45 and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots)

Antaira Technologies’ LMX-2602G-SFP is a 26-port industrial gigabit managed Ethernet switch features 24*10/100/1000Tx Ethernet ports and also provides 2*gigabit combo ports with 2*10/100/1000Tx RJ45 and 2*100/1000Fx SFP slots for fiber or twisted pair connections. This makes the product ideal for applications that demand high density of port connectivity, wide bandwidth and long-distance communication.LMX-2602G-SFP is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMX-2602G-SFP is designed with IP40 rated 1U 19” rackmount. Supporting the standard operating temperature model -10° to 65˚C also makes it the best solution for any harsh and extreme ambient weather environment applications, such as power/utility, transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries.

Features

24-port 10/100/1000Tx Ethernet
2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots)
Configuration: http, https, CLI Command, Telnet, SNMP, SSH
Network redundancy support: G.8032 ERPS v2/STP/RSTP/MSTP
System Power Input: 90~264VAC
Built-in Relay Output Warning for Power Failure
IP40 Rugged Metal Case Design
19” Rack-Mounting Installation Design
Standard Operating Temperature Range: -10°C to 65°C
5-Year Warranty

Included

LMX-2602G-SFP
Quick Installation Guide
RJ45 dust cover set
RJ45 to DB9 serial Console cable
Set of rack-mounting brackets and screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Certifications: FCC, CE
Dimensions: 440 x 200 x 44 mm
EMI: FCC Part 15 Subpart B Class A, CE EN61000-6-4 Class A
EMS: CE EN61000-6-2 Class A;IEC61000-4-2 (ESD);IEC61000-4-3 (RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge);IEC61000-4-6 (CS);IEC61000-4-8 (Magnetic Field)
Ethernet Port: 24*10/100/1000BaseT(X) and 2*10/100/1000BaseT(X) with combo port Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall: IEC60068-2-32
Gigabit Combo Port: 2*RJ45 Ports w/10/100/1000Tx Ethernet and 2*100/1000 SFP Slots
Green: RoHS Compliant
Housing: Metal, IP40 Protection
Input Voltage: 90~264VAC Power Input
Jumbo Frame: 9.6Kbytes
MAC Table Size: 8K
Mounting: DIN-Rail, Wall-mount (Optional)
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable; EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable; EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Operating Temperature: STD: -10°C to 65°C
Overload Current Protection: Present (Slow-Blow Fuse)
Packet Buffer: 4Mbits
Power Connection: AC Socket
Power Consumption: Max 24W full loading
Processing Type: Store and Forward
Protocols: CSMA/CD, IGMP v1/v2, SNMP v1/v2c/v3, TFTP, SNTP, RARP, RMON, Syslog
Reverse Polarity Protection: Present
Shock: IEC60068-2-27
Standards: IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000Base-T Gigabit Ethernet;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3x Flow Control;IEEE 802.1d STP (Spanning Tree Protocol);IEEE 802.1w RSTP (Rapid Spanning Tree Protocol);IEEE 802.1s MSTP (Multiple Spanning Tree Protocol);ITU-T G.8032 / Y.1344 ERPS v1/v2 (Ethernet Ring Protection Switch);IEEE 802.1Q Virtual Local Area Network (VLAN);IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization;IEEE 802.1X Network Authentication;IEEE 802.1AB Link Layer Discovery Protocol (LLDP);IEEE 802.3ad Link Aggregation (LACP)
Storage Temperature: -40°C to 85°C
Switching Architecture: Back-Plane (Switching Fabric): 52.0Gbps
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration: IEC60068-2-6
Warranty: 5 Years
Wavelength: Depends on SFP modules
Weight: Unit: 6.17 lbs;Shipping: 7.94 lbs
