LMX-2012G-SFP-T | 20-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | with 810/100/1000Tx and 12100/1000 SFP Slots; EOT: -40°C to 75°C | Antaira

20-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, with 8*10/100/1000Tx and 12*100/1000 SFP Slots; EOT: -40°C to 75°C

Brand: AntairaSKU: LMX-2012G-SFP-T

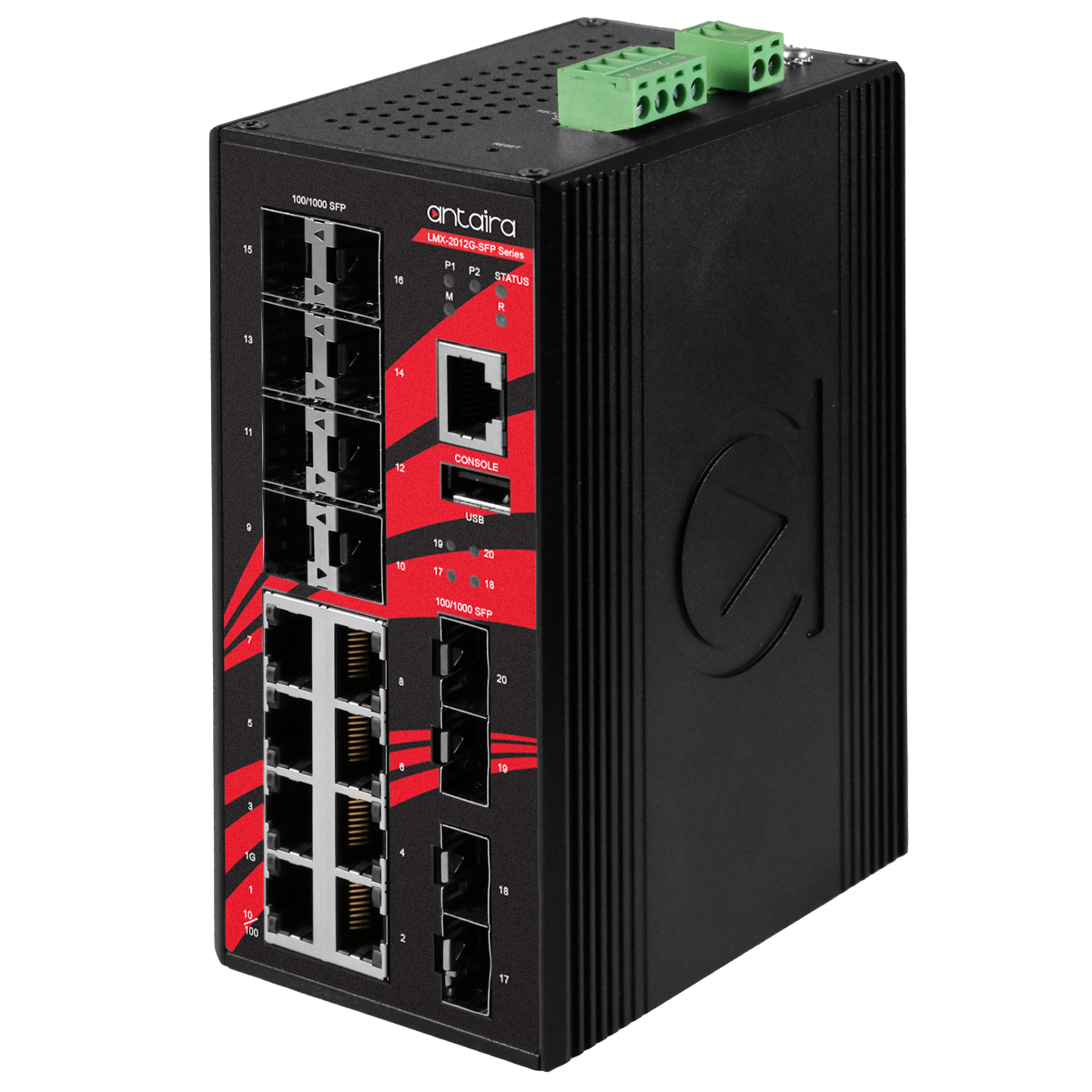

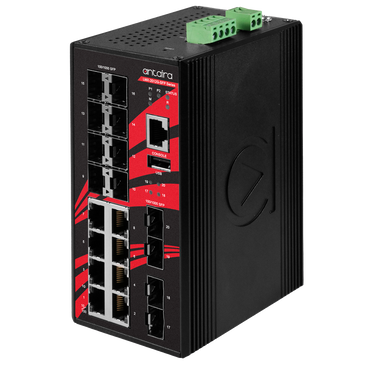

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMX-2012G-SFP-T

Overview & Specifications Reviews Parts & Accessories

Overview Details for LMX-2012G-SFP-T

20-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | with 8*10/100/1000Tx and 12*100/1000 SFP Slots; EOT: -40°C to 75°C

Antaira Technologies’ LMX-2012G-SFP-T is a 20-port industrial Gigabit managed Ethernet switch that is embedded with 8*10/100/1000Tx Ethernet ports and 12*100/1000 SFP slots. The LMX-2012G-SFP-T is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMX-2012G-SFP-T is IP30 rated and DIN-rail mountable. There are also an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment.

Features

Supports 8*10/100/1000Tx Gigabit Ethernet and 12*100/1000 SFP Slots
Network Redundancy Support: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
Supports IPv4/IPv6, and DHCP Option 66/67/82
Supports Modbus/TCP Protocol for Device Management and Monitoring
IGMP v1/v2 for Multicast Traffic Filtering
QoS (IEEE 802.1p/1Q), CoS/ToS to Increase Determinism
IEEE802.1Q VLAN for Easy Network Planning
Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
Auto Warning by Exception through Relay Output
Operating Temperature Range – EOT: -40°C to 75°C
5-Year Warranty

Included

DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
Dust cover set
LMX-2012G-SFP-T
Quick Installation Guide
RJ45 to DB9 serial console cable
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Certifications: FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Configuration backup: 1*USB 2.0
Dimensions: 71.5 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 8*10/100/1000BaseTx;Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x for full duplex mode, back pressure for half duplex mode
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 rated
IGMP Group: 1024
Input Voltage: 12~48VDC Redundant Input
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
LED Indicators: System: Power 1, Power 2, Status, Master, Ring;Ethernet: Speed/Link/Active;SFP: Link/Active
MAC Table Size: 8K
Memory Buffer: 4Mbits
Mounting: DIN-Rail mounting, Wall mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature: -40°C to 75°C
Overload Current Protection: Present (Slow-Blown Fuse)
Power Connection: 1 removable 4-contact terminal block and 1 removable 2-contact terminal block
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues: 8
Processing Type: Store and Forward
Protocols: IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
RS232 Serial Console: 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8, N, 1
SFP Port: 12*100/1000 SFP Slots
Shock: IEC60068-2-27
Storage Temperature: -40°C to 85°C
Switching Architecture: Back-Plane (Switching Fabric): 40.0Gbps
System / Diagnostics: Dual Image Protection, PING, PING6
System Power Consumption: 19W
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration: IEC60068-2-6
VLAN Groups: 4095
Warranty: 5 Years
Weight: Unit: 3.4 lbs.;Shipping: 4.18 lbs.
