LMX-1802G-M12-10G-SFP-67-T | 18-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch | with 16*10/100/1000Tx M12 Connectors (X-Coded) and 2*1G/10G SFP Slots; EOT: -40°C to 70°C | Antaira
18-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connectors (X-Coded) and 2*1G/10G SFP Slots; EOT: -40°C to 70°C

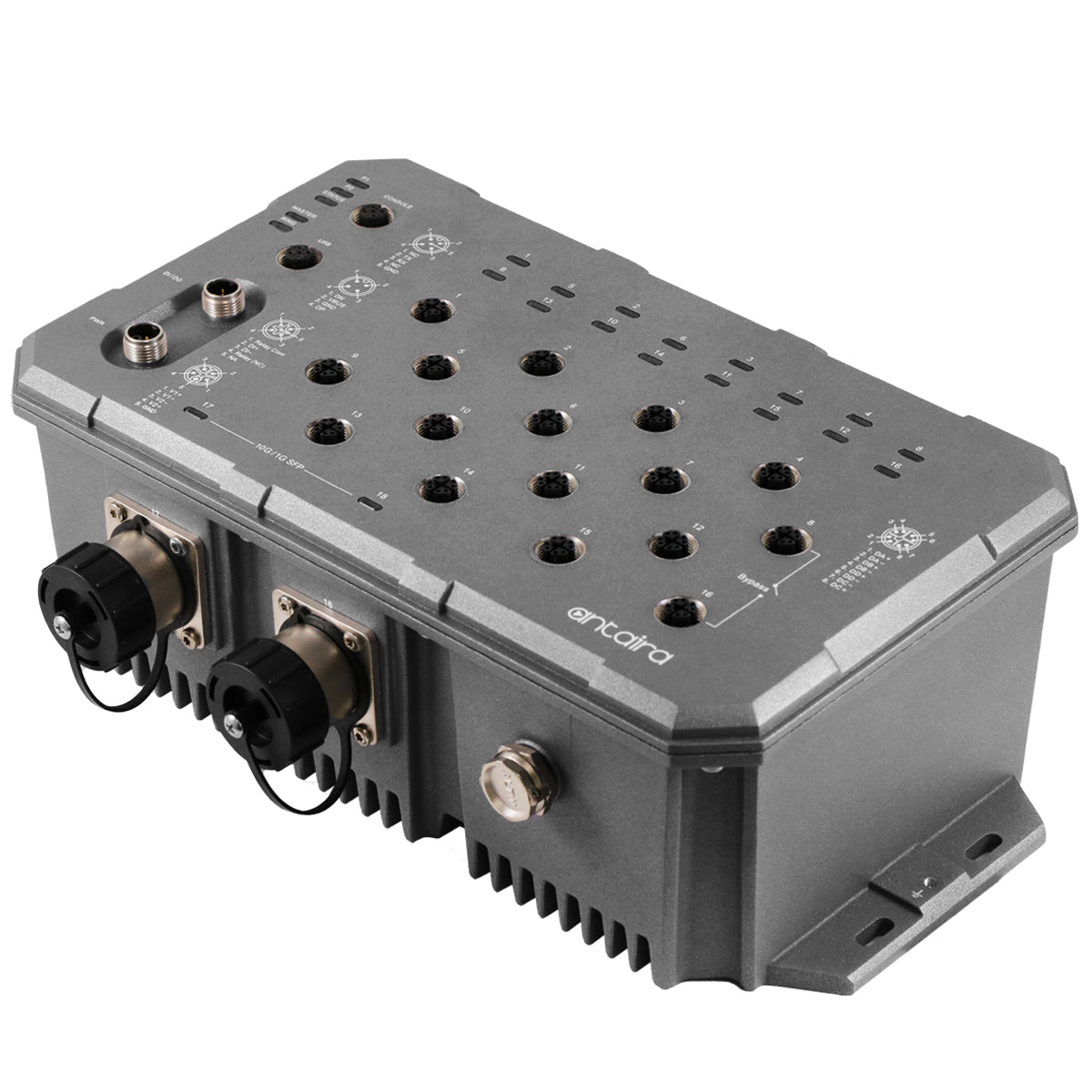

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX-1802G-M12-10G-SFP-67-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LMX-1802G-M12-10G-SFP-67-T Documents
Overview
Details for LMX-1802G-M12-10G-SFP-67-T
18-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch | with 16*10/100/1000Tx M12 Connectors (X-Coded) and 2*1G/10G SFP Slots; EOT: -40°C to 70°C
Antaira Technologies’ LMX-1802G-M12-10G-SFP-67 Series is an 18-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X) and 2*1G/10G fiber slots. LMX-1802G-M12-10G-SFP-67 Series is full manageable light layer 3 Ethernet switch series and supports power inputs redundancy. LMX-1802G-M12-10G-SFP-67 Series offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50ms recovery time to the network.LMX-1802G-M12-10G-SFP-67 Series provides comprehensive network security and management capability by supporting Multi-user account, IGMP, GVRP, VLAN, QoS, SNMP, RADIUS, TACACS+, Aggregation (Static, LACP), SSH, SSL, IP source guard to create a highly-secured network environment.LMX-1802G-M12-10G-SFP-67 Series is an M12 IP67 industrial gigabit Ethernet switch that meets the high-reliability requirements demanded by industrial applications. Its M12 connectors ensure a tight and robust connection and it guarantees reliable operation on applications that are subject to high vibration and shock in dust, liquid or gas laden environments. Being able to operate under the standard temperature range from -10°C to 65°C or the extended temperature range from -40°C to 70°C, the LMX-1802G-M12-10G-SFP-67 Series can be installed in almost any harsh environment.Features
- 16-Port 10/100/1000Base-T(X) Ethernet
- 2-Port 1G/10G SFP Slots
- Multi-user account for security
- Bypass design for Daisy Chain Redundancy
- Configuration: http, https, CLI Command, Telnet, SNMP, SSH
- Network redundancy support: G.8032 ERPS v2 / STP / RSTP / MSTP
- Supports Static routes for routing function
- Supports RADIUS, TACACS+ authentication protocol
- Supports QoS, LACP bandwidth control
- Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security
- Redundant power inputs design
- Operating Temperature Range – EOT: -40°C to 70°C
- 5-Year Warranty
Included
- Dust cover set
- LMX-1802G-M12-10G-SFP-67-T
- Quick Installation Guide
- SFP metal field installable cable end lock
- SFP removal kit
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Bypass Protection
- Ethernet Port 8 and Port 16
- Certifications
- FCC, CE
- Configuration
- Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- Configuration backup
- 1*USB 2.0 with M12 4-pin A-coded female connector for configuration backup/restore
- Digital Input
- 1* Digital Input (DI) with M12 5-Pin A-coded male connector: State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
- Dimensions
- 183 x 295 x 101.3 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2,;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 16*10/100/1000 Base-T(X), 8-pin M12 X-Coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP67 protection
- IGMP Group
- 1024
- Input Voltage
- 24~55VDC Redundant Input
- Jumbo Frame
- 9.6Kbytes
- L2 Switching
- Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
- L3 Switching
- DHCP option82, static routes
- LED Indicators
- System: Power 1, Power 2, Master, Ring, Status;Ethernet ports: Speed/Link/Active;SFP: Link/Active
- MAC Table Size
- 32K
- Memory Buffer
- 4Mbits
- Mounting
- Wall mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-T: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Network Redundancy
- STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Operating Temperature
- -40°C to 70°C
- Optical Cable
- Multi-mode cable - 50/125um or 62.5/125um,;Single-mode cable - 9/125um or 10/125um
- Overload Current Protection
- Present
- Power Connection
- Dual DC power inputs through M12 5-pin K-coded male connector
- Power Saving
- ActiPHY, PerfectReach, IEEE 802.3az EEE power management
- Priority Queues
- 8
- Processing Type
- Store and Forward
- QoS
- 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- RS232 Serial Console
- 1*RS232 with M12 5-pin A-coded female connector
- SFP Port
- 2*1G/10G SFP Slots
- Shock
- IEC60068-2-27
- Storage Temperature
- -40°C to 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 72Gbps
- System / Diagnostics
- Dual Image Protection, PING, PING6
- System Power Consumption
- 30W
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port;14,880,000pps for 10 Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- VLAN Groups
- 4095
- Warranty
- 5 Years
- Weight
- Unit: 9.16 lbs.;Shipping: 10.94 lbs.
