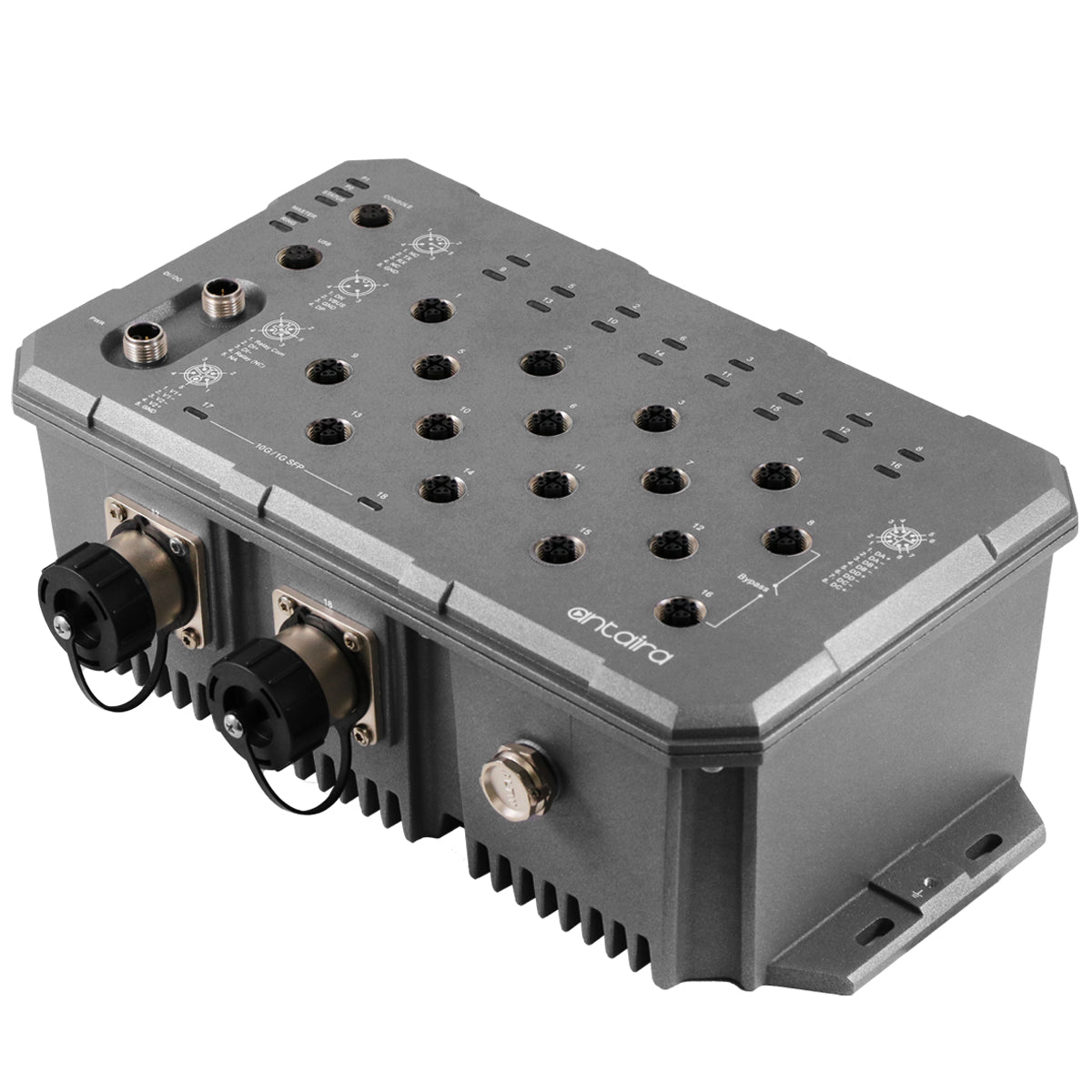

LMX-1802G-M12-10G-SFP-67-110-T | 18-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch | with 16*10/100/1000Tx M12 Connectors (X-Coded) and 2*1G/10G SFP Slots; 24~110VDC Power Input; EOT: -40°C to 70°C | Antaira
18-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connectors (X-Coded) and 2*1G/10G SFP Slots; 24~110VDC Power Input; EOT: -40°C to 70°C
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX-1802G-M12-10G-SFP-67-110-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LMX-1802G-M12-10G-SFP-67-110-T Documents
Overview
Details for LMX-1802G-M12-10G-SFP-67-110-T
18-Port Industrial M12 IP67 Waterproof Gigabit Light Layer 3 Managed Ethernet Switch | with 16*10/100/1000Tx M12 Connectors (X-Coded) and 2*1G/10G SFP Slots; 24~110VDC Power Input; EOT: -40°C to 70°C
Antaira Technologies’ LMX-1802G-M12-10G-SFP-67-110-T is an 18-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X) and 2*1G/10G fiber slots. The LMX-1802G-M12-10G-SFP-67-110-T is a fully-manageable light layer 3 Ethernet switch and supports power input redundancy. The LMX-1802G-M12-10G-SFP-67-110-T offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50ms recovery time to the network.The LMX-1802G-M12-10G-SFP-67-110-T provides comprehensive network security and management capability by supporting multi-user accounts, IGMP, GVRP, VLAN, QoS, SNMP, RADIUS, TACACS+, Aggregation (Static, LACP), SSH, SSL, IP source guard to create a highly-secured network environment.The LMX-1802G-M12-10G-SFP-67-110-T is an M12 IP67 industrial gigabit Ethernet switch that meets the high-reliability requirements demanded by industrial applications. Its M12 connectors ensure a tight and robust connection guarantees reliable operation on applications subject to high vibration and shock in dust, liquid, or gas-laden environments. It can operate under the extended temperature range from -40°C to 70°C, useful in almost any harsh environment.Features
- 16-Port 10/100/1000Base-T(X) Ethernet
- 2-Port 1G/10G SFP Slots
- Multi-user Account for Security
- Bypass Design for Daisy Chain Redundancy
- Configuration: http, https, CLI Command, Telnet, SNMP, SSH
- Network Redundancy Support: G.8032 ERPS v2 / STP / RSTP / MSTP
- Supports Static Routes for Routing Function
- Supports RADIUS, TACACS+ Authentication Protocol
- Supports QoS, LACP Bandwidth Control
- Supports VLAN, SNMP v1/v2c/v3, ACL, IP Source Guard for Ethernet Security
- Redundant Power Input Design
- Operating Temperature Range – EOT: -40°C to 70°C
- 5-Year Warranty
Included
- (2) SFP metal field installable cable end lock
- Dust cover set
- LMX-1802G-M12-10G-SFP-67-110-T
- Quick Installation Guide
- SFP removal kit
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Bypass Protection
- Ethernet Port 8 and Port 16
- Certifications
- FCC, CE
- Configuration
- Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- Configuration backup
- 1*USB 2.0 with M12 4-pin A-coded female connector for configuration backup/restore
- Digital Input
- 1* Digital Input (DI) with M12 5-Pin A-coded male connector: State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
- Dimensions
- 183 x 295 x 101.3 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2,;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 16*10/100/1000 Base-T(X), 8-pin M12 X-Coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP67 protection
- IGMP Group
- 1024
- Input Voltage
- 24~110VDC Redundant Input
- Jumbo Frame
- 9.6Kbytes
- L2 Switching
- Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
- L3 Switching
- DHCP option82, static routes
- LED Indicators
- System: Power 1, Power 2, Master, Ring, Status;Ethernet ports: Speed/Link/Active;SFP: Link/Active
- MAC Table Size
- 32K
- Memory Buffer
- 4Mbits
- Mounting
- Wall Mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-T: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Network Redundancy
- STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Operating Temperature
- -40°C to 70°C
- Optical Cable
- Multi-mode cable - 50/125um or 62.5/125um,;Single-mode cable - 9/125um or 10/125um
- Overload Current Protection
- Present
- Power Connection
- Dual DC power inputs through M12 5-pin K-coded male connector
- Power Saving
- ActiPHY, PerfectReach, IEEE 802.3az EEE power management
- Priority Queues
- 8
- Processing Type
- Store and Forward
- QoS
- 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Railway
- EN50121-3-2, EN50121-4
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- RS232 Serial Console
- 1*RS232 with M12 5-pin A-coded female connector
- SFP Port
- 2*1G/10G SFP Slots
- Shock
- IEC60068-2-27
- Storage Temperature
- -40°C to 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 72Gbps
- System / Diagnostics
- Dual Image Protection, PING, PING6
- System Power Consumption
- 45W
- Transfer Rate
- 4,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port;14,880,000pps for 10 Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- VLAN Groups
- 4095
- Warranty
- 5 Years
- Weight
- Unit: 9.55 lbs.;Shipping: 11.32 lbs.
