16-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | with 16*10/100/1000Tx Ports

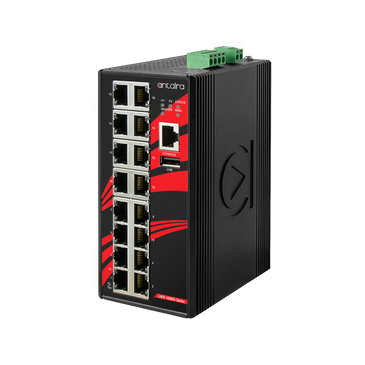

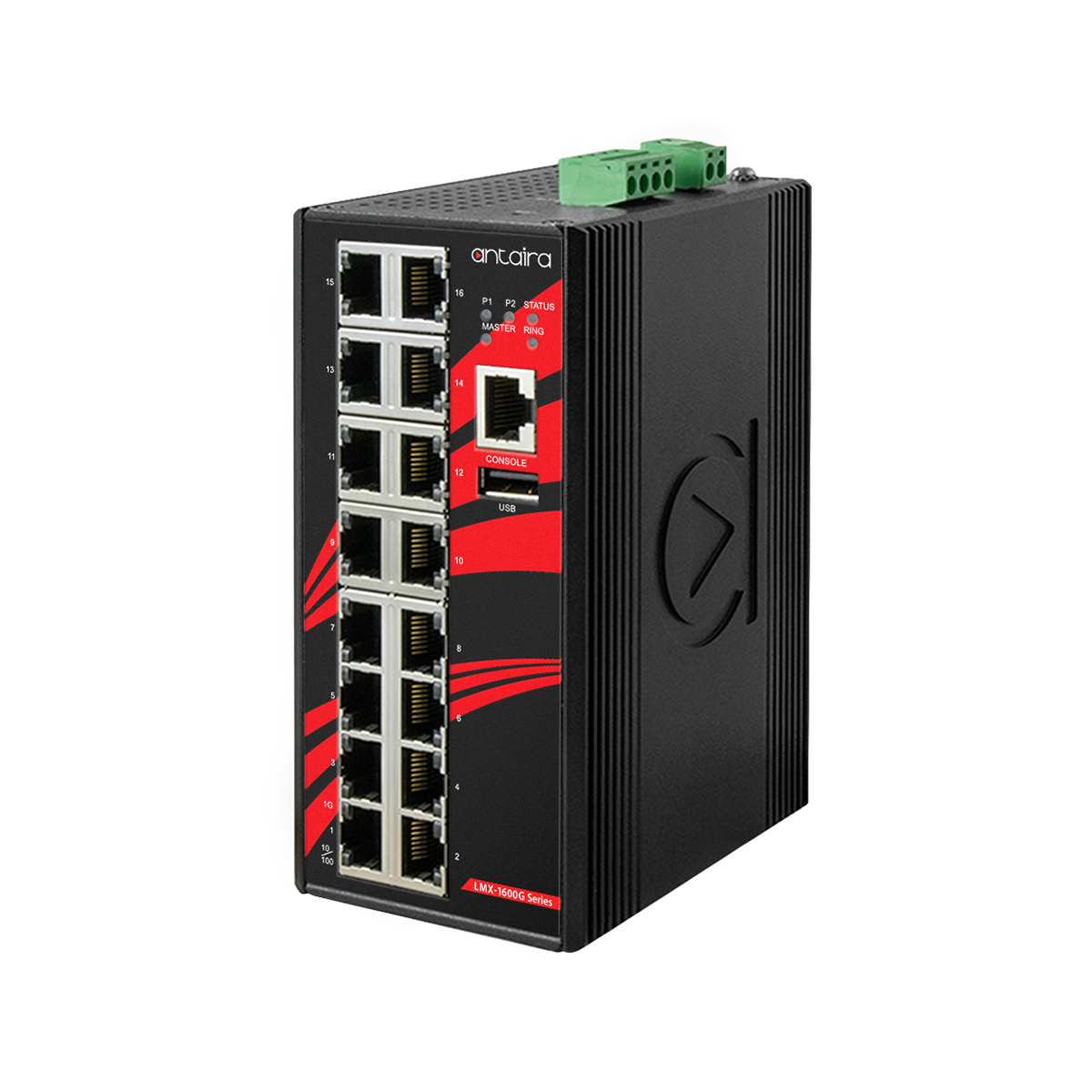

Antaira Technologies’ LMX-1600G is a 16-port industrial Gigabit managed Ethernet switch that is embedded with 16*10/100/1000Tx Ethernet ports. The LMX-1600G is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMX-1600G is IP30 rated and DIN-rail mountable. There are also a operating temperature model for a standard temperature range (STD: -10°C to 70°C). It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment.

Features

• Supports 16*10/100/1000Tx RJ45 Ports
• Network Redundancy: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Supports IPv4/IPv6, and DHCP Option 66/67/82
• Supports Modbus/TCP Protocol for Device Management and Monitoring
• IGMP v1/v2 for Multicast Traffic Filtering
• System Warning Setting for Automatic Warning through E-mail
• QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
• IEEE802.1Q VLAN for Easy Network Planning
• Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
• Auto Warning by Exception through E-mail, Relay Output
• Operating Temperature Range – STD: -10°C to 70°C
• 5-Year Warranty

Included

• 1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• 1 - RJ45 to DB9 Serial Console Cables
• LMX-1600G
• Quick Installation Guide
• RJ45 dust cover set
• Wall mounting bracket set with screws
