LMX-1204G-SFP-T-CC | 12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx + 4*100/1000 SFP; EOT: -40 to 75C with Conformal Coating | Antaira
12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/8*10/100/1000Tx + 4*100/1000 SFP; EOT: -40 to 75C with Conformal Coating

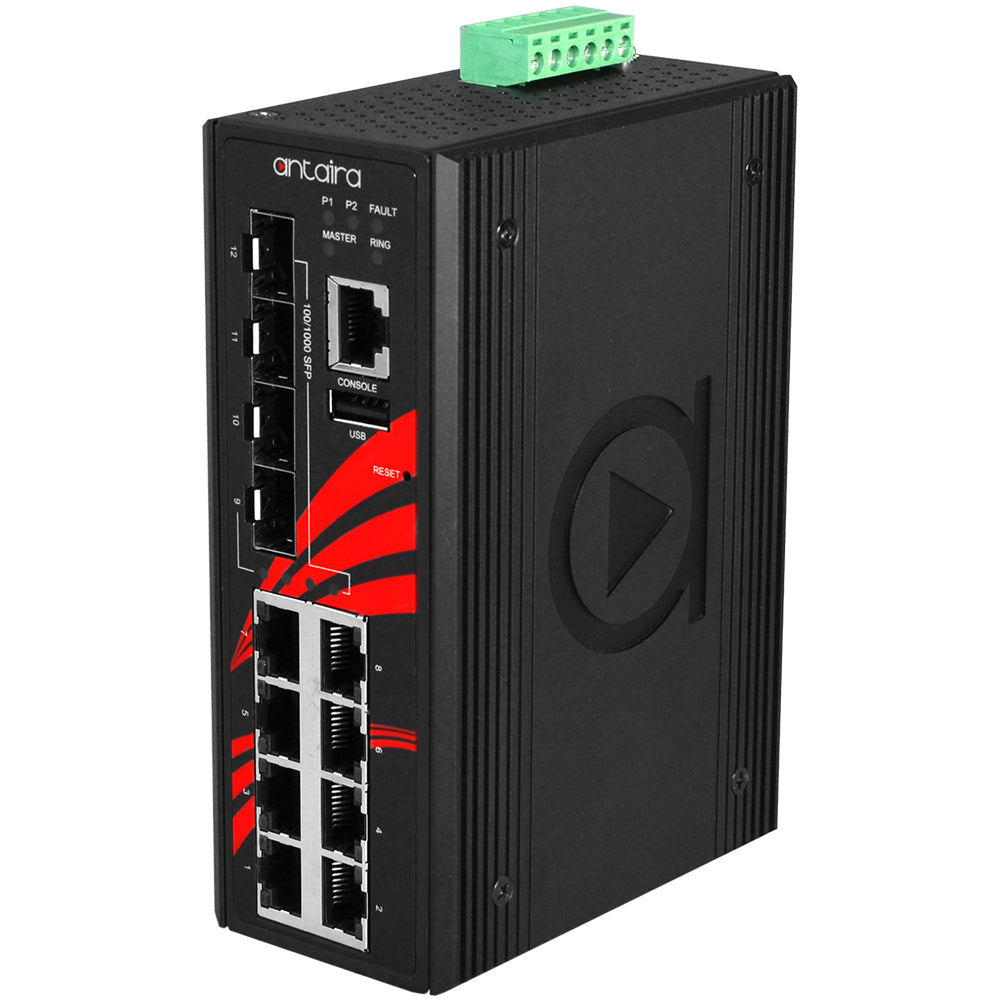

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX-1204G-SFP-T-CC
Documents and manuals
Antaira LMX-1204G-SFP-T-CC Documents
Overview
Details for LMX-1204G-SFP-T-CC
12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx + 4*100/1000 SFP; EOT: -40 to 75C with Conformal Coating
Antaira’s LMX-1204G-SFP-T-CC is a 12-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with 8*10/100/1000Tx Fast Ethernet ports and four dual rate (100/1000X) SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. It supports Jumbo Frame and wide bandwidth for data transmission and has sufficient port counts for any edge level connectivity solutions. The LMX-1204G-SFP-T has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -40°C to 75°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment and is conformally coatedFeatures
- Conformal Coated
- Supports 8*10/100/1000Tx Fast Ethernet Ports and 4*100/1000 SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2, up to 256 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
- System Warning Setting for Automatic Warning through E-Mail
- Redundant Power Input Design – 12~48VDC
- Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
- Extended Operating Temperature: -40~75C
- 5-Year Warranty
Included
- 1 - DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- 1 - LMX-1204G-SFP-T-CC
- 1 - RJ45 to DB9 Serial Console Cables
- 2 - Wall Mounting Brackets and Screws
Specifications
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2, Class 1 Div 2, ATEX
- Configuration
- Web Console, Telnet, CLI
- Configuration backup
- 1*USB 2.0
- Dimensions
- 54 x 142 x 99 mm
- EMI
- FCC Class A
- EMS
- IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
- Ethernet Port
- 8*10/100/1000BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Fiber Port
- 4* 100/1000 SFP Slots
- Green
- RoHS Compliant
- Housing / Mounting
- Metal IP30 rated / DIN-Rail & Wall-Mount (optional)
- IGMP
- Up to 256 Groups
- Input Voltage & Connection
- 12~48VDC Redundant Input / 1 removable 6-contact terminal block
- Jumbo Frame
- 9.6K
- Operating Temperature
- Power Consumption
- 15 Watts
- Protection
- Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC;Overload Current, Power Reverse Polarity, CPU Watchdog
- Protocols
- IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
- Serial Console
- 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
- Shock/Vibration/Free Fall
- IEC60068-2-27 / 2-6 / 2-32
- Standards
- IEEE 802.3 / 802.3u / 802.3x / 802.3ad,;IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p;ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
- VLAN
- 1 - 4094
- Warranty
- 5 Years
- Wavelength
- Refer to SFP Modules
- Weight
- Unit: 2.2 lbs.; Shipping: 3.0 lbs.
