LMX-1204G-SFP-T | 12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx + 4*100/1000 SFP; EOT: -40 to 75C | Antaira

12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/8*10/100/1000Tx + 4*100/1000 SFP; EOT: -40 to 75C

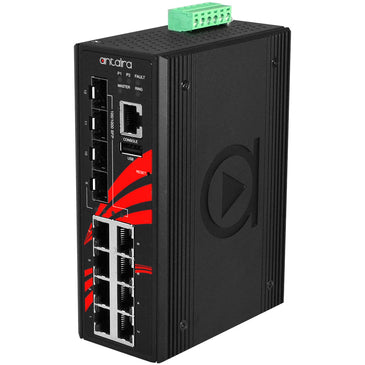

Antaira | LMX-1204G-SFP-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX-1204G-SFP-T

Overview

Details for LMX-1204G-SFP-T

12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx + 4*100/1000 SFP; EOT: -40 to 75C

Antaira’s LMX-1204G-SFP-T is a 12-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with 8*10/100/1000Tx Fast Ethernet ports and four dual rate (100/1000X) SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. It supports Jumbo Frame and wide bandwidth for data transmission and has sufficient port counts for any edge level connectivity solutions. The LMX-1204G-SFP-T has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -40°C to 75°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.

Features

  • Supports 8*10/100/1000Tx Fast Ethernet Ports and 4*100/1000 SFP Slots
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2, up to 256 Groups
  • Supports QoS (IEEE802.1p) and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
  • System Warning Setting for Automatic Warning through E-Mail
  • Redundant Power Input Design – 12~48VDC
  • Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
  • Extended Operating Temperature: -40~75C
  • 5-Year Warranty

Included

  • 1 - DC Cable - 18 AWG & DC Jack 5.5 x 2.1mm
  • 1 - LMX-1204G-SFP-T
  • 1 - RJ45 to DB9 Serial Console Cables
  • 2 - Wall Mounting Brackets and Screws

Specifications

Certifications
FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2, Class 1 Div 2, ATEX
Configuration
Web Console, Telnet, CLI
Configuration backup
1*USB 2.0
Dimensions
54 x 142 x 99 mm
EMI
FCC Class A
EMS
IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
Ethernet Port
8*10/100/1000BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port
4* 100/1000 SFP Slots
Green
RoHS Compliant
Housing / Mounting
Metal IP30 rated / DIN-Rail & Wall-Mount (optional)
IGMP
Up to 256 Groups
Input Voltage & Connection
12~48VDC Redundant Input / 1 removable 6-contact terminal block
Jumbo Frame
9.6K
Operating Temperature
-40 to 75°C
Power Consumption
15 Watts
Protection
Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC;Overload Current, Power Reverse Polarity, CPU Watchdog
Protocols
IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
Serial Console
1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
Shock/Vibration/Free Fall
IEC60068-2-27 / 2-6 / 2-32
Standards
IEEE 802.3 / 802.3u / 802.3x / 802.3ad,;IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p;ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
VLAN
1 ~ 4094
Warranty
5 Years
Wavelength
Refer to SFP Modules
Weight
Unit: 2.2 lbs.; Shipping: 3.0 lbs.
