LMX-1204G-SFP | 12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx + 4*100/1000 SFP | Antaira

12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/8*10/100/1000Tx + 4*100/1000 SFP

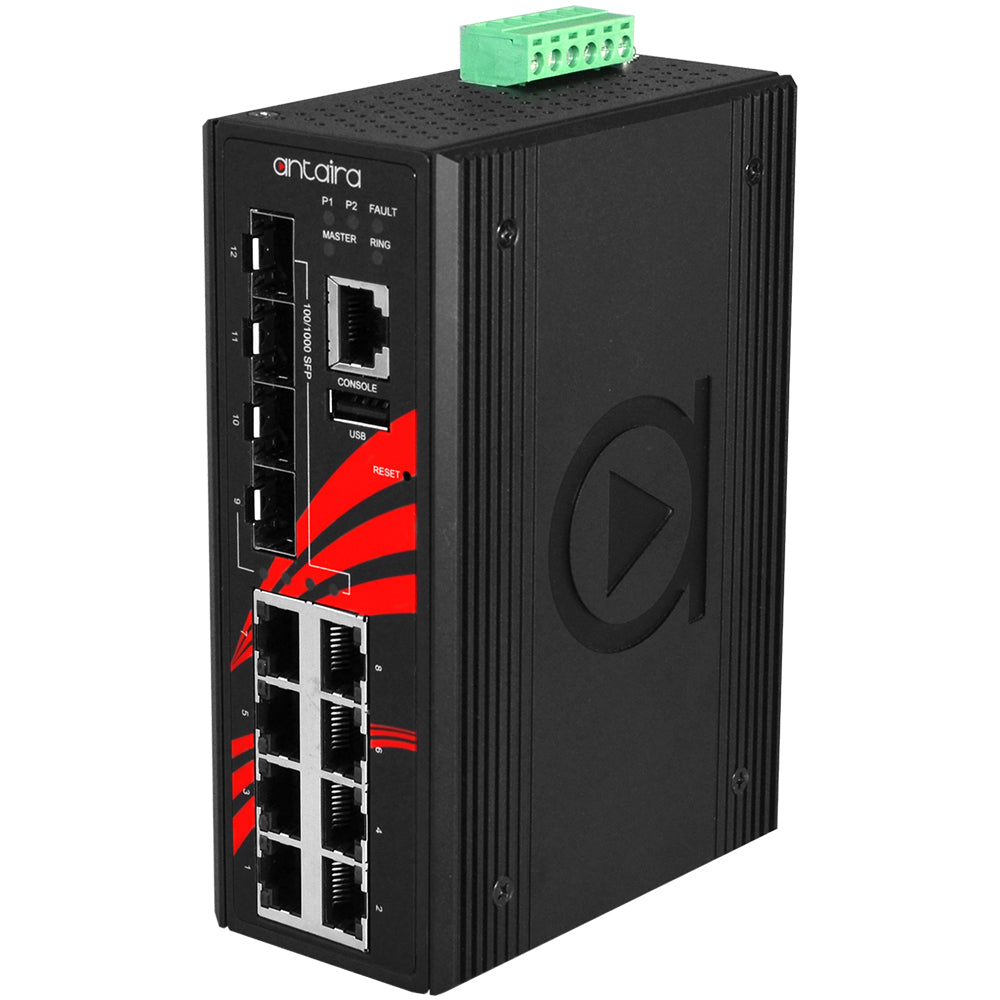

Antaira’s LMX-1204G-SFP is a 12-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with 8*10/100/1000Tx Fast Ethernet ports and four dual rate (100/1000X) SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. It supports Jumbo Frame and wide bandwidth for data transmission and has sufficient port counts for any edge level connectivity solutions. The LMX-1204G-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.

Features

• Supports 8*10/100/1000Tx Fast Ethernet Ports and 4*100/1000 SFP Slots
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI Command
• Supports IGMP v1/v2, up to 256 Groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
• System Warning Setting for Automatic Warning through E-Mail
• Redundant Power Input Design – 12~48VDC
• Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
• Standard Operating Temperature: -10~70C
• 5-Year Warranty

Included

• 1 - DC Cable - 18 AWG & DC Jack 5.5 x 2.1mm
• 1 - LMX-1204G-SFP
• 1 - RJ45 to DB9 Serial Console Cables
• 2 - Wall Mounting Brackets and Screws
