LMX-1202M-SFP-T | 12-Port Industrial Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx | 2*10/100/1000Tx RJ45 | and 2*100/1000 SFP Slots; EOT: -40~75C | Antaira

12-Port Industrial Light Layer 3 Managed Ethernet Switch, w/8*10/100Tx, 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots; EOT: -40~75C

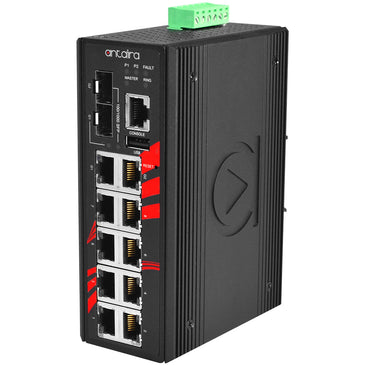

Antaira | LMX-1202M-SFP-T

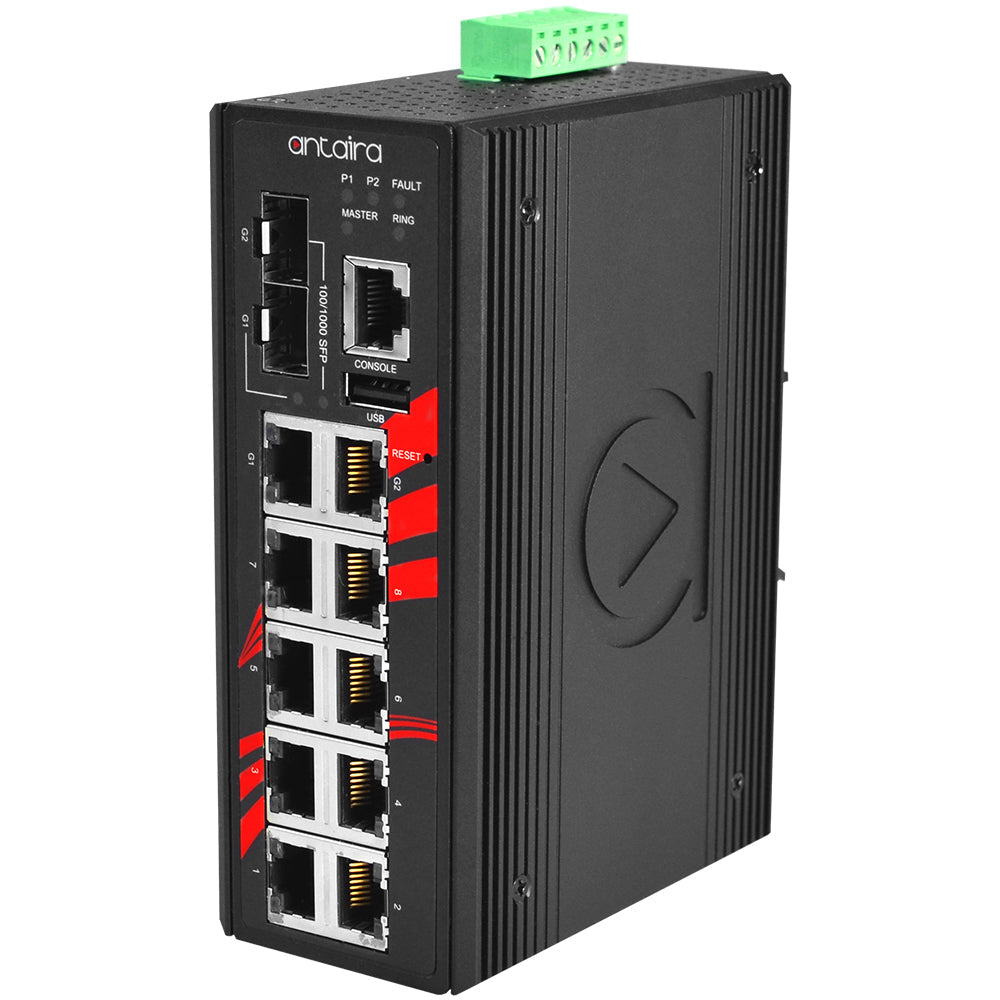

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX-1202M-SFP-T

Overview

Details for LMX-1202M-SFP-T

12-Port Industrial Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx | 2*10/100/1000Tx RJ45 | and 2*100/1000 SFP Slots; EOT: -40~75C

Antaira’s LMX-1202M-SFP-T is a 12-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with 8*10/100Tx Fast Ethernet ports and 2*10/100/1000Tx RJ45 + 2*100/1000 dual rate SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The RJ45 ports provide flexibility to users for either 10/100 or 1000Tx Ethernet connections. The plug in SFP Modules provide 100MB or Gigabit Fiber connection where distance, EMI or security is a concern.The LMX-1202M-SFP-T has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -40°C to 75°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.

Features

  • Supports 8*10/100Tx Fast Ethernet Ports and 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2, up to 256 Groups
  • Supports QoS (IEEE802.1p) and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c
  • System Warning Setting for Automatic Warning through E-Mail
  • Redundant Power Input Design – 12~48VDC
  • Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
  • Extended Operating Temperature: -40~75C
  • 5-Year Warranty

Included

  • 1 - LMX-1202M-SFP-T
  • 1 - RJ45 to DB9 Serial Console Cables
  • 1-DC cable –18 AWG & DC jack 5.5x2.1mm
  • 2 - Wall Mounting Brackets and Screws

Specifications

Certifications
FCC, CE, UL 61010-1, 61010-2-201, NEMA TS2
Configuration
Web Console, Telnet, CLI
Dimensions
54 x 142 x 99 mm
EMI
FCC Class A
EMS
IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
Ethernet Port
8*10/100 + 2*10/100/1000 BaseTx auto negotiation, Full/Half duplex, and auto MDI/MDI-X connection
Green
RoHS Compliant
Housing / Mounting
Metal IP30 rated / DIN-Rail or Wall Mounting
Input Voltage & Connection
12~48VDC Redundant Input w/ 1 removable 6-contact terminal block
Operating Temperature
-40° to 75° C
Power Consumption
15 Watts
Protection
Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC;Overload Current, Power Reverse Polarity, CPU Watchdog
Protocols
IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
Serial Console
1*RS232 (RJ45 Connector)
Shock/Vibration/Free Fall
IEC60068-2-27 / 2-6 / 2-32
Standards
IEEE 802.3 / 802.3u / 802.3x / 802.3ad,;IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p;ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
Switching Architecture
Back-Plane (Switching Fabric): 10.0Gbps
VLAN
0-4095
Warranty
5 years
Wavelength
Refer to SFP Modules
Weight
Unit: 2.2 lbs.; Shipping: 3.3 lbs.
