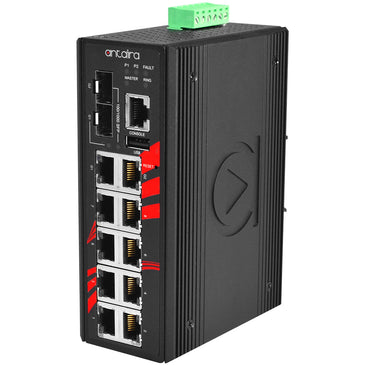

LMX-1202M-SFP | 12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx + 2*10/100/1000Tx RJ45 | + 2*100/1000 SFP Slots | Antaira

12-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx + 2*10/100/1000Tx RJ45 | + 2*100/1000 SFP Slots

Antaira’s LMX-1202M-SFP is a 12-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with 8*10/100Tx Fast Ethernet ports and 2*10/100/1000Tx RJ45 + 2*100/1000 dual rate SFP slots. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The RJ45 ports provide flexibility to users for either 10/100 or 1000Tx Ethernet connections. The plug in SFP Modules provide 100MB or Gigabit Fiber connection where distance, EMI or security is a concern. The LMX-1202M-SFP has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, or any other outdoor or harsh environment.

Features

• Supports 8*10/100Tx Fast Ethernet Ports and 2*10/100/1000Tx RJ45 + 2*100/1000 SFP Slots
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI Command
• Supports IGMP v1/v2, up to 256 Groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c
• System Warning Setting for Automatic Warning through E-Mail
• Redundant Power Input Design – 12~48VDC
• Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
• Standard Operating Temperature: -10~70C
• 5-Year Warranty

Included

• 1 - LMX-1202M-SFP
• 1-DC cable –18 AWG & DC jack 5.5x2.1mm
• 1-RJ45 to DB9 Serial Console cable
• 2-Wall mounting brackets and screws
