LMX-0802-ST-S3 | 8-Port Industrial Managed Ethernet Switch | w/6*10/100Tx Ports + 2*100Fx (ST) Single-Mode 30Km Fiber Ports. | Antaira
8-Port Industrial Managed Ethernet Switch, w/6*10/100Tx Ports + 2*100Fx (ST) Single-Mode 30Km Fiber Ports.

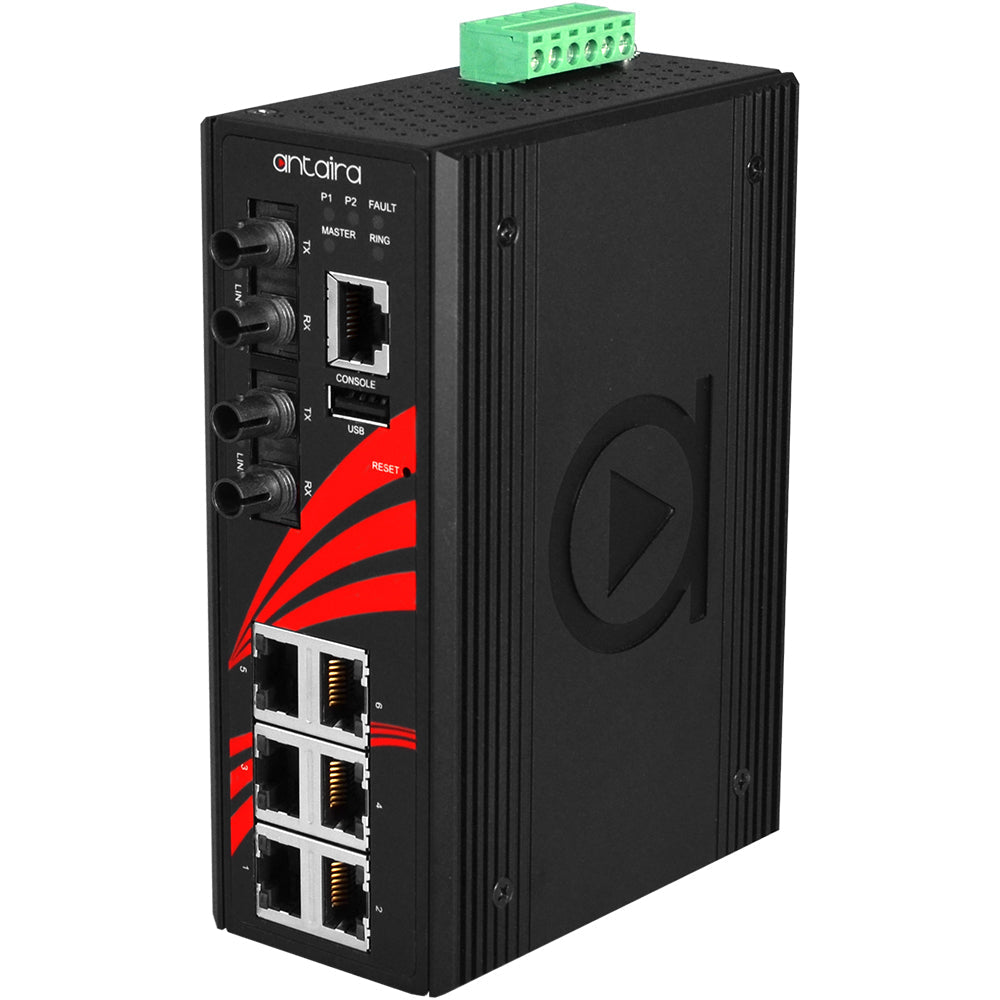

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX-0802-ST-S3
Overview Details for LMX-0802-ST-S3
8-Port Industrial Managed Ethernet Switch | w/6*10/100Tx Ports + 2*100Fx (ST) Single-Mode 30Km Fiber Ports.
Antaira’s LMX-0802-ST-S3 is a 8-port industrial managed Ethernet switch that is embedded with 6*10/100Tx Fast Ethernet ports + 2*100Fx single-mode ST fiber ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Layer 2 network management software. The LMX-0802-ST-S3 has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for industrial networking applications within factory automation, ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.Features
- Network Broadcast Storm Protection
- Supports 6*10/100Tx Fast Ethernet Ports + 2*100Fx Single-Mode ST Fiber Ports
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
- Configuration: Web Console, Serial, CLI Command
- Supports IGMP v1/v2
- Supports QoS (IEEE 802.1p) and CoS/ToS
- Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
- Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm
- System Warning Setting for Automatic Warning through E-mail
- DIN-Rail and Wall Mount Support
- Operating Temperature Range - STD: -10° to 70° C
- 5-Year Warranty
Included
- 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
- 1 - LMX-0802-ST-S3
- 1 - RJ45 to DB9 Serial Console Cable
- 2 - Wall Mounting Brackets and Screws
Specifications
- Certifications
- FCC, CE, UL 61010-1, UL 61010-2-201
- Configuration
- Web Console, Telnet, CLI
- Configuration backup
- 1*USB 2.0
- Dimensions
- 54 x 142 x 99 mm
- EMI
- FCC Class A
- EMS
- IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
- Ethernet Port
- 6*10/100BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI connection
- Fiber Port
- 2*100Fx Single-mode Fiber Ports with ST Connectors
- Green
- RoHS Compliant
- Housing / Mounting
- Metal IP30 rated / DIN-Rail & Wall-Mount (Included)
- IGMP
- Up to 256 Groups
- Input Voltage
- 12~48VDC Redundant Input / 1 removable 6-contact terminal block
- Jumbo Frame
- 9.6K
- Operating Temperature
- STD: -10 to 70°C
- Power Consumption
- 15 Watts
- Protection
- Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC;Overload Current, Power Reverse Polarity, CPU Watchdog
- Protocols
- IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
- Serial Console
- 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
- Shock/Vibration/Free Fall
- IEC60068-2-27 / 2-6 / 2-32
- Standards
- IEEE 802.3 / 802.3u / 802.3x / 802.3ad;IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p;ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
- VLAN
- 1 ~ 4094
- Warranty
- 5 Year
- Warranty
- 5 Year
- Wavelength
- 1310nm
- Weight
- Unit: 2.5 lbs; Shipping: 3.0 lbs
