LMX-0802-ST-M | 8-Port Industrial Light Layer 3 Managed Ethernet Switch | w/6*10/100Tx Ports + 2*100Fx Multi-Mode ST Fiber Ports. | Antaira

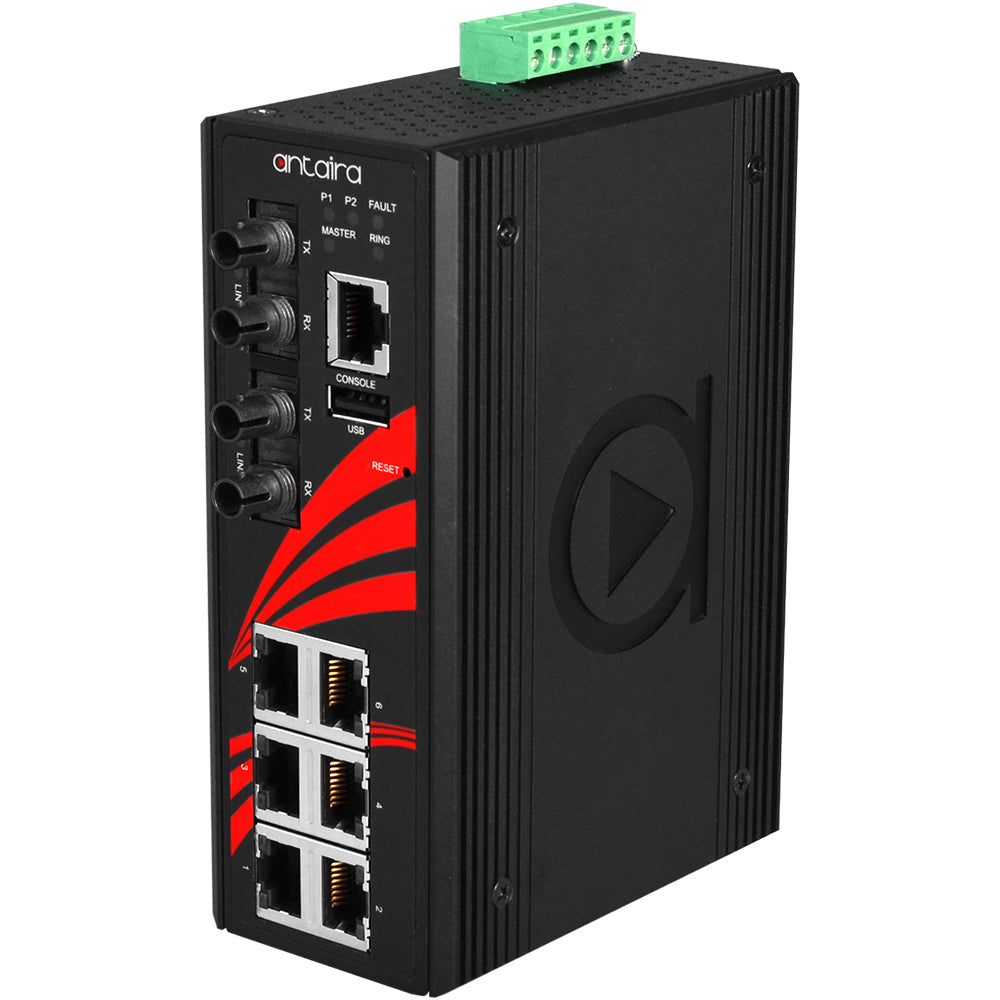

8-Port Industrial Light Layer 3 Managed Ethernet Switch, w/6*10/100Tx Ports + 2*100Fx Multi-Mode ST Fiber Ports.

Antaira | LMX-0802-ST-M
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX-0802-ST-M

Overview

Details for LMX-0802-ST-M

8-Port Industrial Light Layer 3 Managed Ethernet Switch | w/6*10/100Tx Ports + 2*100Fx Multi-Mode ST Fiber Ports.

Antaira’s LMX-0802-ST-M is a 8-port industrial Light Layer 3 managed Ethernet switch that is embedded with 6*10/100Tx Fast Ethernet ports + 2*100Fx multi-mode ST fiber ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The LMX-0802-ST-M has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for industrial networking applications within factory automation, ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.

Features

  • Network Broadcast Storm Protection
  • Supports 6*10/100Tx Fast Ethernet Ports + 2*100Fx Multi-Mode ST Fiber Ports
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
  • Configuration: Web Console, Serial, CLI Command
  • Supports IGMP v1/v2
  • Supports QoS (IEEE 802.1p) and CoS/ToS
  • Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
  • Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm
  • System Warning Setting for Automatic Warning through E-mail
  • DIN-Rail and Wall Mount Support
  • Operating Temperature Range - STD: -10° to 70° C
  • 5-Year Warranty

Included

  • 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
  • 1 - LMX-0802-ST-M
  • 1 - RJ45 to DB9 Serial Console Cable
  • 2 - Wall Mounting Brackets and Screws

Specifications

Certifications
FCC, CE, UL 61010-1, UL 61010-2-201
Configuration
Web Console, Telnet, CLI
Configuration backup
1*USB 2.0
Dimensions
54 x 142 x 99 mm
EMI
FCC Class A
EMS
IEC61000-4-2,3,4,5,6,8 / IEC61000-6-2,4
Ethernet Port
6*10/100BaseTx auto negotiation speed, Full/Half duplex mode, and auto MDI connection
Fiber Port
2*100Fx Multi-mode Fiber Ports with ST Connectors
Green
RoHS Compliant
Housing / Mounting
Metal IP30 rated / DIN-Rail & Wall-Mount (Included)
IGMP
Up to 256 Groups
Input Voltage
12~48VDC Redundant Input / 1 removable 6-contact terminal block
Jumbo Frame
9.6K
Operating Temperature
STD: -10 to 70°C
Power Consumption
15 Watts
Protection
Power line EFT: 2,000VDC; Ethernet ESD: 6,000VDC;Overload Current, Power Reverse Polarity, CPU Watchdog
Protocols
IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
Serial Console
1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1
Shock/Vibration/Free Fall
IEC60068-2-27 / 2-6 / 2-32
Standards
IEEE 802.3 / 802.3u / 802.3x / 802.3ad;IEEE 802.1d / 802.1w / 802.1s / 802.1Q / 802.1X / 802.1p;ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
VLAN
1 ~ 4094
Warranty
5 Year
Wavelength
1310nm
Weight
Unit: 2.5 lbs; Shipping: 3.0 lbs
