8-Port Industrial Light Layer 3 Managed Ethernet Switch | w/6*10/100Tx Ports + 2*100Fx Multi-Mode SC Fiber Ports | EoT -40~75C.

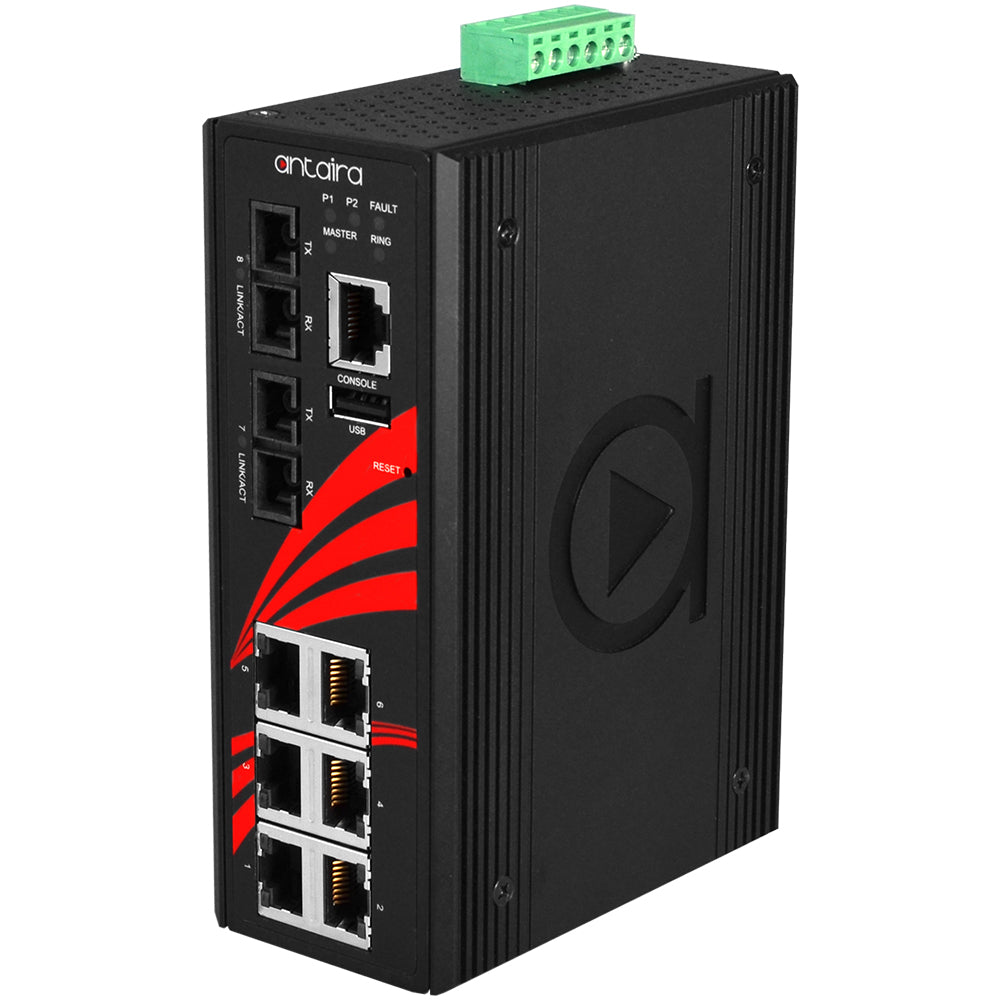

Antaira’s LMX-0802-M-T is a 8-port industrial Light Layer 3 managed Ethernet switch that is embedded with 6*10/100Tx Fast Ethernet ports + 2*100Fx Multi-mode SC fiber ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The LMX-0802-M-T has a compact form factor design with an IP30 rating, DIN-rail mounting, and wide operating temperature support from -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications within factory automation, ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.

Features

• Network Broadcast Storm Protection
• Supports 6*10/100Tx Fast Ethernet Ports + 2*100Fx Multi-Mode SC Fiber Ports
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
• Configuration: Web Console, Serial, CLI Command
• Supports IGMP v1/v2/v3
• Supports QoS (IEEE 802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN, SNMP v1/v2c
• Redundant Power Input Design 12~48VDC + Built-in relay output for Port Break Alarm
• System Warning Setting for Automatic Warning through E-mail
• DIN-Rail and Wall Mount Support
• Operating Temperature Range - EOT: -40° to 75° C
• 5-Year Warranty

Included

• 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
• 1 - LMX-0802-M-T
• 1 - RJ45 to DB9 Serial Console Cable
• 2 - Wall Mounting Brackets and Screws
