LMX-0800 | 8-Port Industrial Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx Ports | Antaira

8-Port Industrial Light Layer 3 Managed Ethernet Switch | w/8*10/100Tx Ports

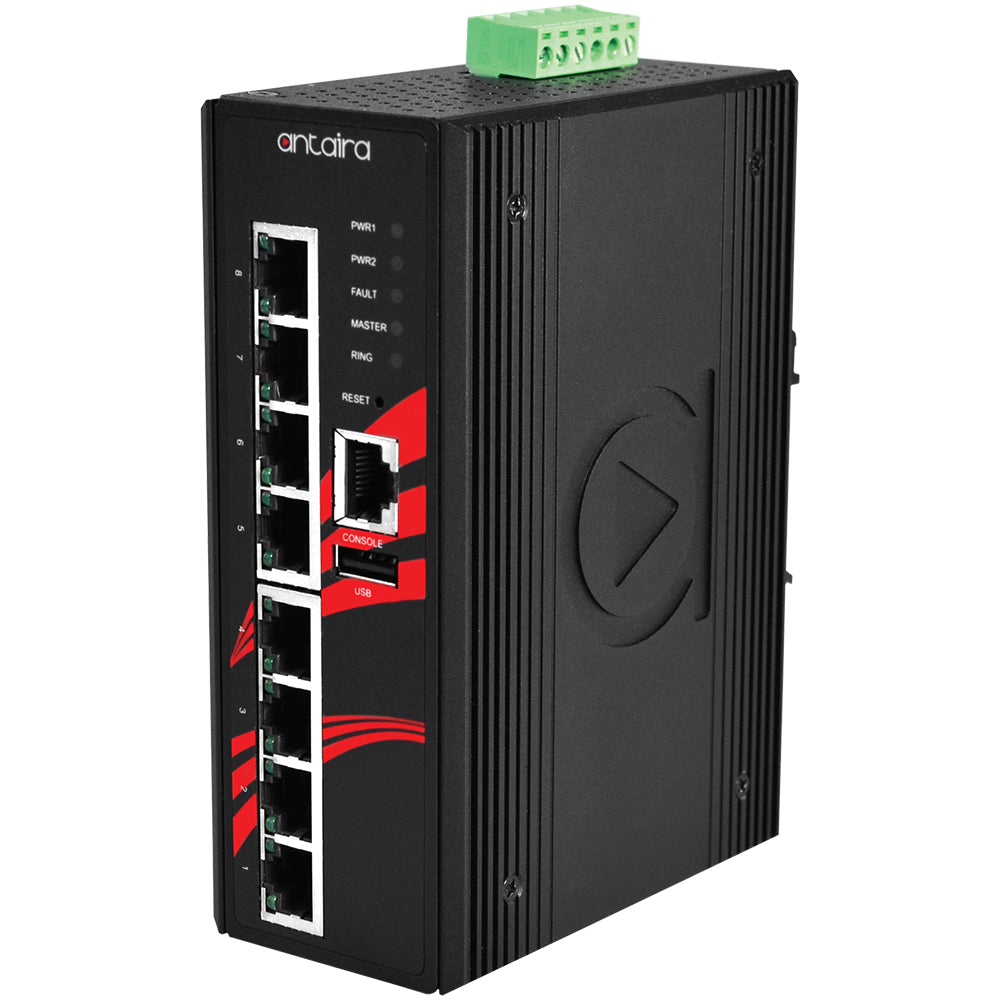

Antaira’s LMX-0800 is a 8-port Light Layer 3 managed industrial Ethernet switch that is embedded with 8*10/100Tx Fast Ethernet ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The LMX-0800 has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, security, or any other outdoor/harsh environment.

Features

• Supports 8*10/100Tx Fast Ethernet Ports
• Network Broadcast Storm Protection
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
• Configuration: Web Console, Serial, CLI Command
• Supports IGMP v1/v2
• Supports QoS (IEEE 802.1p) and CoS/ToS
• Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
• Redundant Power Input Design 12~48VDC + Built-in relay output for Port Break Alarm
• System Warning Setting for Automatic Warning through E-mail
• DIN-Rail and Wall Mount Support
• Operating Temperature Range - STD: -10° to 70° C
• 5-Year Warranty

Included

• 1 - DC cable –18 AWG to DC Jack 5.5x2.1mm
• 1 - LMX-0800
• 1 - RJ45 to DB9 Serial Console Cable
• 2 - Wall Mounting Brackets and Screws
