LMX-0702G-SFP-V2 | 7-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/510/100/1000Tx and 2100/1000 SFP Slots; Version 2 Hardware | Antaira

7-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/5*10/100/1000Tx and 2*100/1000 SFP Slots; Version 2 Hardware

Brand: AntairaSKU: LMX-0702G-SFP-V2

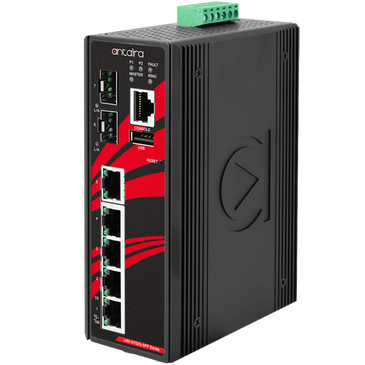

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMX-0702G-SFP-V2

Overview & Specifications Reviews Parts & Accessories

Overview Details for LMX-0702G-SFP-V2

7-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/5*10/100/1000Tx and 2*100/1000 SFP Slots; Version 2 Hardware

Antaira Technologies’ LMX-0702G-SFP-V2 is a 7-port industrial Gigabit managed Ethernet switch embedded with 5*10/100/1000Tx Ethernet ports and 2*100/1000 SFP slots. The LMX-0702G-SFP-V2 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports a ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMX-0702G-SFP-V2 is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.Version 2 hardware is compatible with the latest Light Layer 3 firmware which permits static routes between VLANs.

Features

Supports 5*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
Configuration: Web Console, Telnet, CLI Command
Supports IGMP v1/v2/v3, up to 256 Groups
Supports QoS (IEEE802.1p) and CoS/ToS
Supports IEEE802.1Q VLAN, SNMP v1/v2c
System Warning Setting for Automatic Warning through E-Mail
Power Input: 12~48VDC in 6-Pin Terminal Block
Reverse Polarity Protection
IP30 Protection
DIN-Rail or Wall Mountable
Operating Temperature Range – STD: -10° to 65°C
5-Year Warranty

Included

DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
LMX-0702G-SFP-V2
Quick Installation Guide
RJ45 dust cover set
RJ45 to DB9 serial Console cable
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Back Plane: 14Gbps
Certifications: FCC, CE, UL 61010-1, 61010-2-201
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions: 54 x 142 x 99 mm
EMI: FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2 Class A,;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 5*10/100/1000Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 protection
IGMP: 1024
Input Voltage: 12~48VDC Redundant Input
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP v1/v2/v3 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
LED Indicators: System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active;SFP: Link/Active
MAC Table Size: 8K
Memory Buffer: 4Mbits
Mounting: DIN-Rail, Wall Mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature: -10°C to 65°C
Overload Current Protection: Present
Power Connection: 1 removable 6-contact terminal block
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues: 8
Processing Type: Store and Forward
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
RS232 Serial Console: 1*RS232 in RJ45
SFP Port: 2*100/1000 SFP Slots
Shock: IEC60068-2-27
Storage Temperature: -40°C to 85°C
System Diagnostics: Dual Image Protection, PING, PING6
System Power Consumption: 7.5W
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration: IEC60068-2-6
VLAN Groups: 4095
Warranty: 5 Years
Weight: Unit: 1.91 lbs;Shipping: 2.57 lbs
