LMX-0702G-SFP-T-V2 | 7-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/5*10/100/1000Tx and 2*100/1000 SFP Slots; EoT: -40°~75°C; Version 2 Hardware | Antaira

7-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/5*10/100/1000Tx and 2*100/1000 SFP Slots; EoT: -40°~75°C; Version 2 Hardware

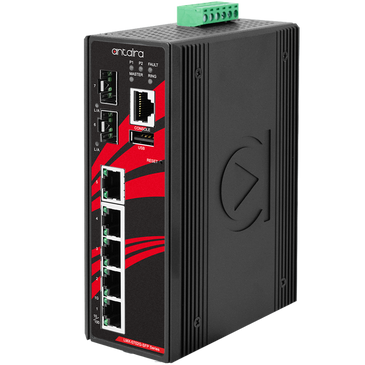

Antaira | LMX-0702G-SFP-T-V2

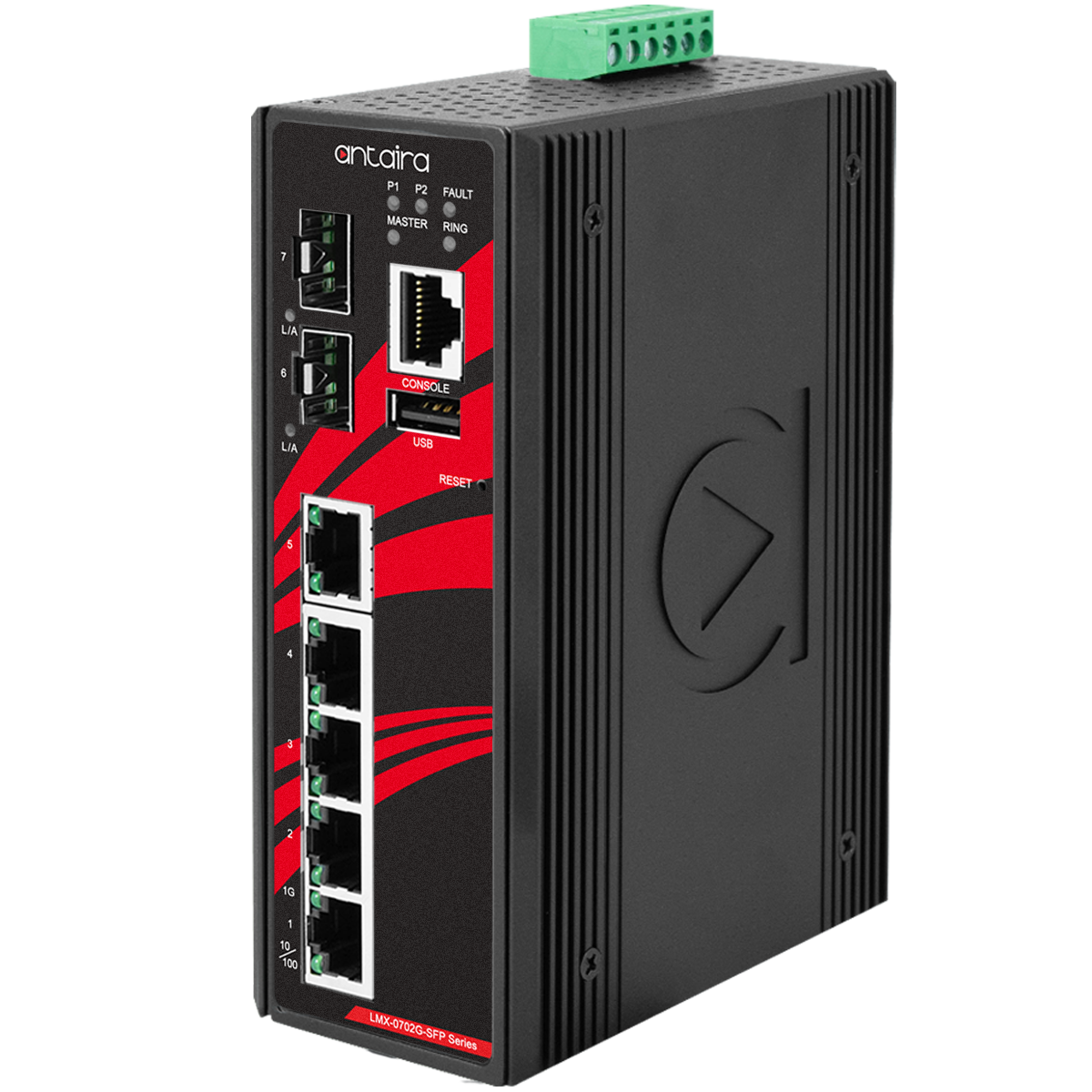

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX-0702G-SFP-T-V2

Documents and manuals

Antaira LMX-0702G-SFP-T-V2 Documents

Overview

Details for LMX-0702G-SFP-T-V2

7-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/5*10/100/1000Tx and 2*100/1000 SFP Slots; EoT: -40°~75°C; Version 2 Hardware

Antaira Technologies’ LMX-0702G-SFP-T-V2 is a 7-port industrial Gigabit managed Ethernet switch embedded with 5*10/100/1000Tx Ethernet ports and 2*100/1000 SFP slots. The LMX-0702G-SFP-T-V2 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports a ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMX-0702G-SFP-T-V2 is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. Version 2 hardware is compatible with the latest Light Layer 3 firmware which permits static routes between VLANs.

Features

  • Supports 5*10/100/1000Tx Fast Ethernet Ports and 2*100/1000 SFP Slots
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2/v3, up to 256 Groups
  • Supports QoS (IEEE802.1p) and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c
  • System Warning Setting for Automatic Warning through E-Mail
  • Power Input: 12~48VDC in 6-Pin Terminal Block
  • Reverse Polarity Protection
  • IP30 Protection
  • DIN-Rail or Wall Mountable
  • Operating Temperature Range – EoT: -40° to 75°C
  • 5-Year Warranty

Included

  • DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
  • LMX-0702G-SFP-T-V2
  • Quick Installation Guide
  • RJ45 dust cover set
  • RJ45 to DB9 serial Console cable
  • Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity
5% to 95%, (non-condensing)
Back Plane
14Gbps
Certifications
FCC, CE, UL 61010-1, 61010-2-201
Configuration
Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions
54 x 142 x 99 mm
EMI
FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
EMS
CE EN55035/EN61000-6-2 Class A,;IEC61000-4-2,3,4,5,6,8
Ethernet Port
5*10/100/1000Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control
IEEE 802.3x flow control, back pressure flow control
Free Fall
IEC60068-2-32
Green
RoHS Compliant
Housing
Metal, IP30 protection
IGMP
1024
Input Voltage
12~48VDC Redundant Input
Jumbo Frame
9.6Kbytes
L2 Switching
Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP v1/v2/v3 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching
DHCP option82, static routes
LED Indicators
System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active;SFP: Link/Active
MAC Table Size
8K
Memory Buffer
4Mbits
Mounting
DIN-Rail, Wall Mounting
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy
STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature
-40°C to 75°C
Overload Current Protection
Present
Power Connection
1 removable 6-contact terminal block
Power Saving
ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues
8
Processing Type
Store and Forward
QoS
802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact
24VDC, 1A resistive
Reverse Polarity Protection
Present
RS232 Serial Console
1*RS232 in RJ45
SFP Port
2*100/1000 SFP Slots
Shock
IEC60068-2-27
Storage Temperature
-40°C to 85°C
System Diagnostics
Dual Image Protection, PING, PING6
System Power Consumption
7.5W
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration
IEC60068-2-6
VLAN Groups
4095
Warranty
5 Years
Weight
Unit: 1.91 lbs;Shipping: 2.57 lbs
