LMX-0601G-SFP-T-V2 | 6-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | with 510/100/1000Tx and 1100/1000 SFP Slot | 12~48VDC Power Input; Version 2 Hardware; EOT: -40°C to 75°C | Antaira

6-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, with 5*10/100/1000Tx and 1*100/1000 SFP Slot, 12~48VDC Power Input; Version 2 Hardware; EOT: -40°C to 75°C

Brand: AntairaSKU: LMX-0601G-SFP-T-V2

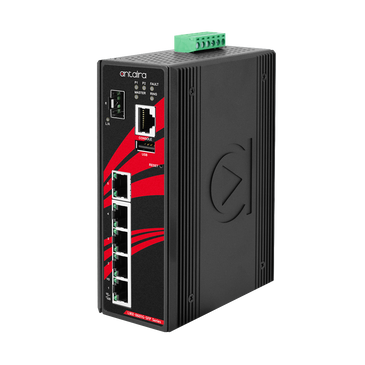

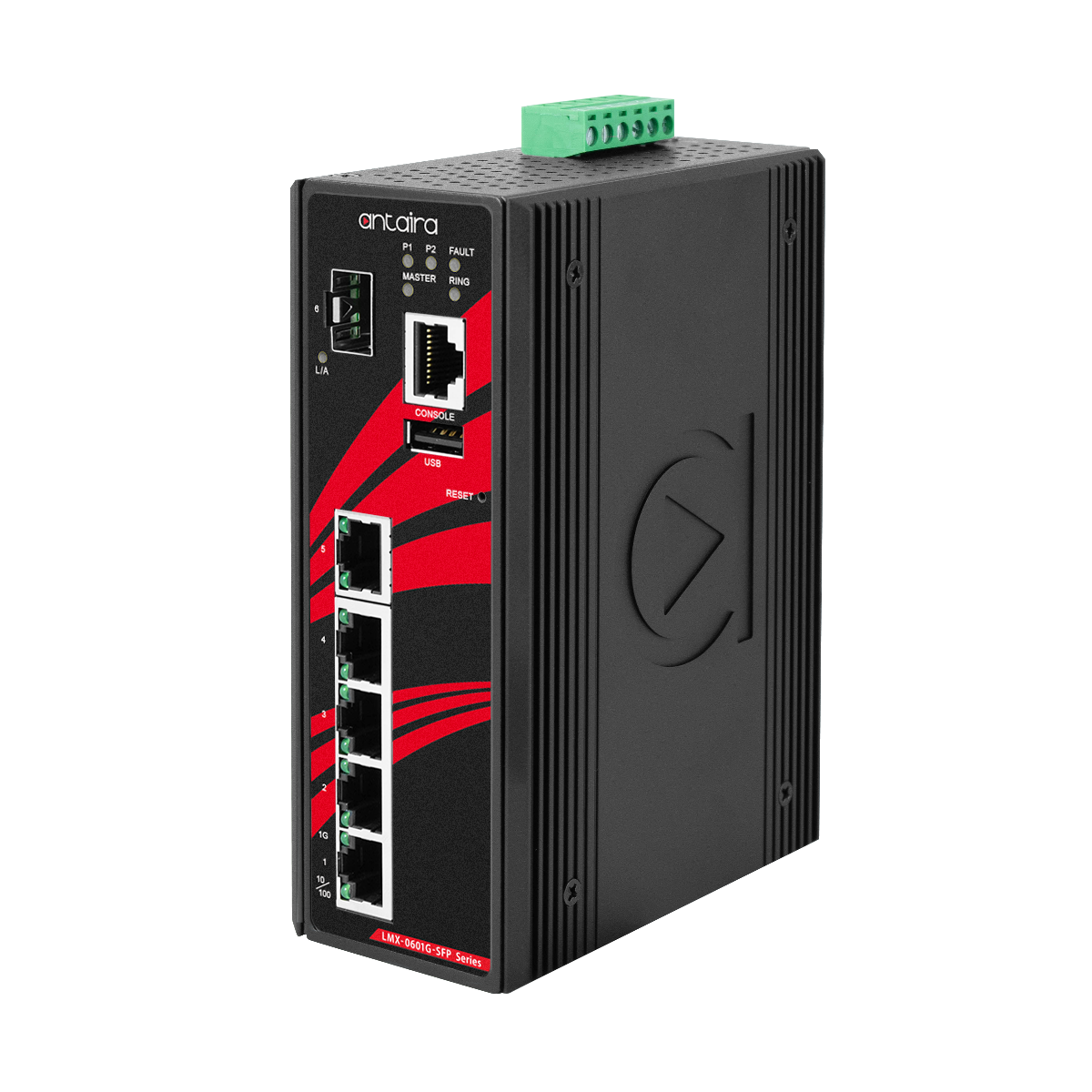

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMX-0601G-SFP-T-V2

Overview & Specifications Reviews Parts & Accessories

Overview Details for LMX-0601G-SFP-T-V2

6-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | with 5*10/100/1000Tx and 1*100/1000 SFP Slot | 12~48VDC Power Input; Version 2 Hardware; EOT: -40°C to 75°C

Antaira’s LMX-0601G-SFP-T-V2 is a 6-port industrial gigabit managed Ethernet switch that is embedded with five gigabit Ethernet ports and one dual rate (100/1000) SFP slots for fiber connection. This switch is a fully manageable industrial Ethernet switch pre-loaded with light layer 3 network management software, and supports a user friendly web console interface for easy configuration.The LMX-0601G-SFP-T-V2 is IP30 rated, DIN-rail mountable, and has an operating temperature model for either an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.Version 2 hardware is compatible with the latest Light Layer 3 firmware which permits static routes between VLANs

Features

Supports 5*10/100/1000Tx Fast Ethernet ports and 1*100/1000 SFP Slot
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
Configuration: Web Console, Telnet, CLI Command
Supports IGMP v1/v2/v3, up to 1024 Groups
Supports QoS (IEEE802.1p) and CoS/ToS
Supports IEEE802.1Q VLAN, SNMP v1/v2c
Redundant Power Input Design: 12~48VDC
Reverse Polarity Protection
IP30 Protection
DIN-Rail or Wall Mountable
Operating Temperature Range - EOT: -40° to 75°C
5-Year Warranty

Included

1 - DC cable - 18 AWG & DC jack 5.5 x 2.1mm
1 - LMX-0601G-SFP-T-V2
1 - Quick Installation Guide
1 - RJ45 dust cover set
1 - RJ45 to DB9 Serial Console cable
1 - Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Certifications: FCC, CE, UL 61010-1, 61010-2-201
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions: 54 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A;CE EN55022/EN61000-6-4 Class A
EMS: CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 5*10/100/1000Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Metal, IP30 protection
IGMP Group: 1024
Input Voltage: 12~48VDC Redundant Input
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
LED Indicators: System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active;Fixed Fiber: Link/Active
MAC Table Size: 8K
Memory Buffer: 4Mbits
Mounting: DIN-Rail mounting, Wall mounting
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat. 5e, 6 cable EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature: -40°C to 75°C
Overload Current Protection: Present
Power Connection: 1 removable 6-contact terminal block
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues: 8
Processing Type: Store and Forward
Protocols: IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24 VDC, 1A resistive
Reverse Polarity Protection: Present
RS232 Serial Console: 1*RS232 in RJ45
SFP Port: 1*100/1000 SFP Slot
Shock: IEC60068-2-27
Storage Temperature: -40°C ~ 85°C
Switching Architecture: Back-Plane (Switching Fabric): 12Gbps
System / Diagnostics: Dual Image Protection, PING, PING6
System Power Consumption: 7.5W
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gig Ethernet Port
Vibration: IEC60068-2-6
VLAN Groups: 4095
Warranty: 5 Years
Weight: Unit: 1.9 lbs;Shipping: 2.7 lbs
