LMX-0600-T-V2 | 6-Port Industrial Light Layer 3 Managed Ethernet Switch | with 6*10/100Tx | 12~48VDC Power Input; Version 2 Hardware; EOT: -40°C to 75°C | Antaira
6-Port Industrial Light Layer 3 Managed Ethernet Switch, with 6*10/100Tx, 12~48VDC Power Input; Version 2 Hardware; EOT: -40°C to 75°C

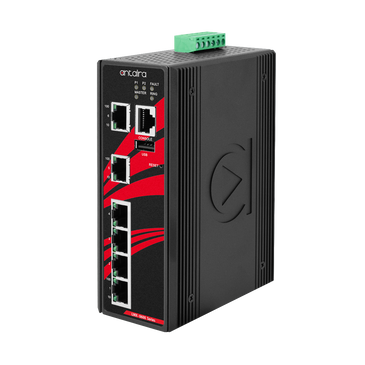

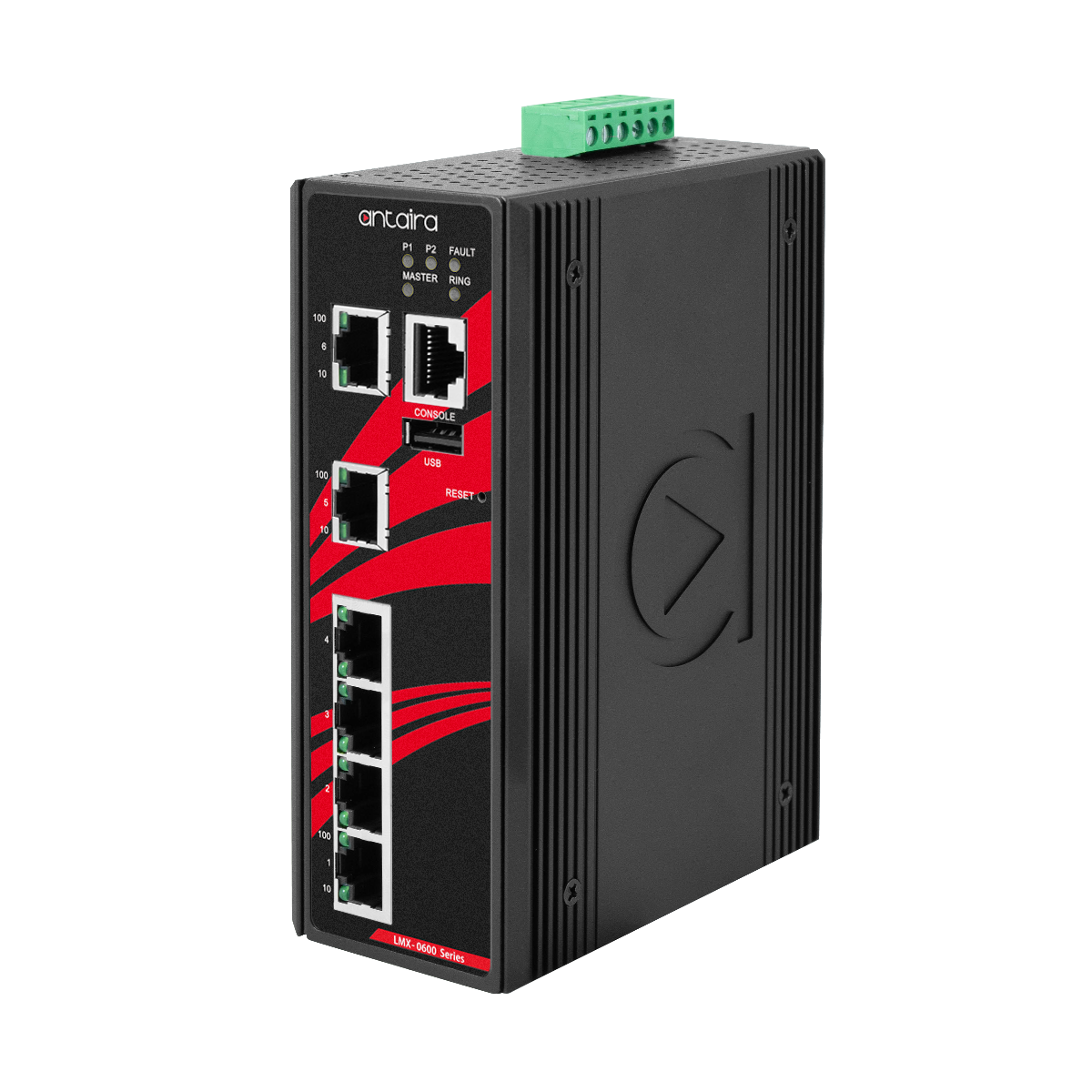

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX-0600-T-V2
Overview Details for LMX-0600-T-V2
6-Port Industrial Light Layer 3 Managed Ethernet Switch | with 6*10/100Tx | 12~48VDC Power Input; Version 2 Hardware; EOT: -40°C to 75°C
Antaira's LMX-0600-T-V2 is a 6-port industrial managed Ethernet switch that is embedded with 6*10/100Tx fast Ethernet ports. This switch is a fully manageable industrial Ethernet switch pre-loaded with light layer 3 network management software, and supports a user friendly web console interface for easy configuration.The LMX-0600-T-V2 is IP30 rated, DIN-rail mountable, and has an operating temperature model for an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.Version 2 hardware is compatible with the latest light layer 3 firmware which permits static routes between VLANs.Features
- Supports 6*10/100Tx Fast Ethernet Ports
- Network Redundancy support: RSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2/v3, up to 1024 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- Redundant Power Input Design – 12~48VDC
- IP30 Protection
- DIN-Rail or Wall Mountable
- Operating Temperature Range - EOT: -40°C to 75°C
- 5-Year Warranty
Included
- 1 - DC cable - 18 AWG & DC jack 5.5 x 2.1mm
- 1 - LMX-0600-T-V2
- 1 - Quick Installation Guide
- 1 - RJ45 dust cover set
- 1 - RJ45 to DB9 Serial Console cable
- 1 - Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201
- Configuration
- Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- Dimensions
- 54 x 142 x 99 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55024/EN61000-6-2 Class A,;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 6*10/100Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- IGMP Group
- 1024
- Input Voltage
- 12~48VDC Redundant Input
- Jumbo Frame
- 9.6Kbytes
- L2 Switching
- Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
- L3 Switching
- DHCP option82, static routes
- LED Indicators
- System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active
- MAC Table Size
- 8K
- Memory Buffer
- 4Mbits
- Mounting
- DIN-Rail mounting, Wall mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
- Network Redundancy
- STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Operating Temperature
- -40°C to 75°C
- Overload Current Protection
- Present
- Power Connection
- 1 removable 6-contact terminal block
- Power Saving
- ActiPHY, PerfectReach, IEEE 802.3az EEE power management
- Priority Queues
- 8
- Processing Type
- Store and Forward
- Protocols
- IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
- QoS
- 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Relay Contact
- 24 VDC, 1A resistive
- Reverse Polarity Protection
- Present
- RS232 Serial Console
- 1*RS232 in RJ45 connector with console cable, baud rate 115,200bps,8,N,1
- Shock
- IEC60068-2-27
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 1.2Gbps
- System / Diagnostics
- Dual Image Protection, PING, PING6
- System Power Consumption
- 7.5W
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
- Vibration
- IEC60068-2-6
- VLAN Groups
- 4095
- Warranty
- 5 Years
- Weight
- Unit: 1.9 lbs;Shipping: 2.7 lbs
