LMX-0501G-SFP-T-V2 | 5-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/4*10/100/1000Tx + 1*100/1000 SFP Slot; EOT -40~75C | Antaira

5-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx + 1*100/1000 SFP Slot; EOT -40~75C

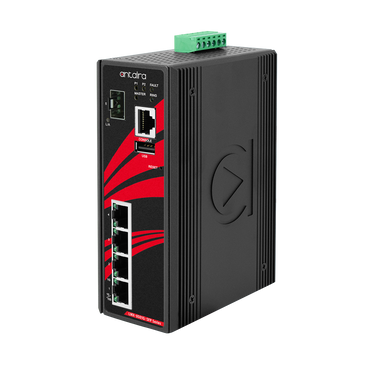

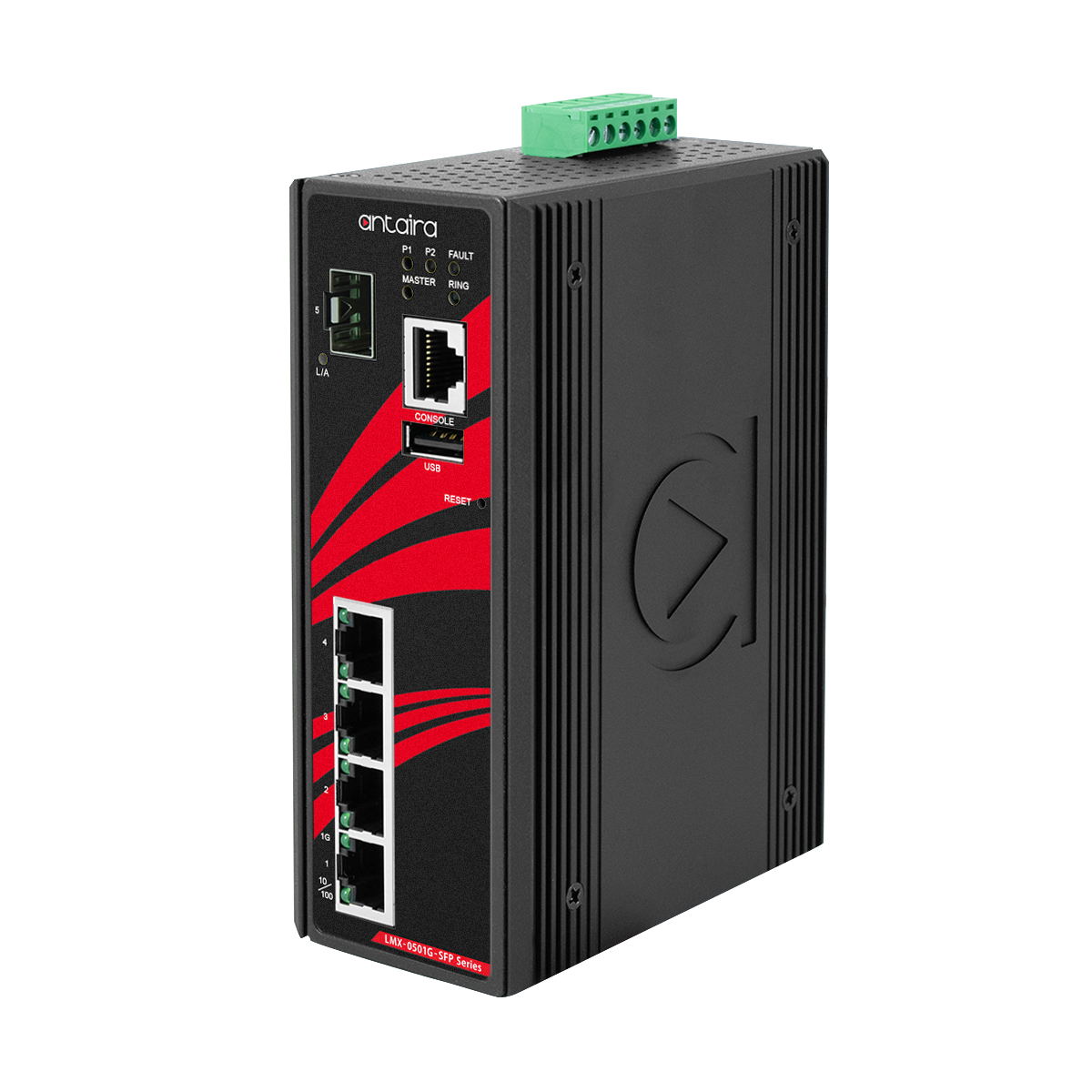

Antaira | LMX-0501G-SFP-T-V2
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX-0501G-SFP-T-V2

Documents and manuals

Antaira LMX-0501G-SFP-T-V2 Documents

Overview

Details for LMX-0501G-SFP-T-V2

5-Port Industrial Gigabit Light Layer 3 Managed Ethernet Switch | w/4*10/100/1000Tx + 1*100/1000 SFP Slot; EOT -40~75C

Antaira’s LMX-0501G-SFP series is a 5-port industrial gigabit Light Layer 3 managed Ethernet switch that is embedded with four gigabit Ethernet ports and one dual rate (100/1000) SFP slots for fiber connection. This series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software, and supports a user friendly web console interface for easy configuration. The LMX-0501G-SFP series is IP30 rated, DIN-rail mountable, and has two wide operating temperature models for either a standard temperature range ( STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.

Features

  • Supports 4*10/100/1000Tx Fast Ethernet Ports and 1*100/1000 SFP Slot
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2, up to 256 Groups
  • Supports QoS (IEEE802.1p) and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c
  • System Warning Setting for Automatic Warning through E-Mail
  • Redundant Power Input Design – 12~48VDC
  • Housing: Metal IP 30 Rated; DIN-Rail and Wall Mount Support
  • Operating Temperature - EOT: -40~75C
  • 5-Year Warranty

Included

  • 1 - DC cable - 18 AWG & DC jack 5.5 x 2.1mm
  • 1 - LMX-0501G-SFP-T-V2
  • 1 - Quick Installation Guide
  • 1 - RJ45 dust cover set
  • 1 - RJ45 to DB9 Serial Console cable
  • 1 - Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity
5 to 95%, (non-condensing)
Back Plane
Non-blocking
Certifications
FCC,CE
Configuration
Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions
54 x 142 x 99 mm (W x H x D)
EMI
FCC Part 15 Subpart B Class A,;CE EN55022/EN61000-6-4 Class A
EMS
CE EN55024/EN61000-6-2 Class A,;IEC61000-4-2,3,4,5,6,8
Ethernet Port
4*10/100/1000Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port
SFP dependent
Flow Control
IEEE 802.3x flow control, back pressure flow control
Free Fall / Shock / Vibration
IEC60068-2-32/IEC60068-2-27/IEC60068-2-6
Green
RoHS Compliant
Housing
Metal, IP30 protection
IGMP
1024
Input Voltage
12~48VDC Redundant Input
Jumbo Frame
9.6Kbytes
L2 Switching
Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching
DHCP option82, static routes
LED Indicators
System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active;Fixed Fiber: Link/Active
MAC Table Size
8K
Management
IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone /Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, USB configuration backup/restore, Power lost warning, relay trigger
Memory Buffer
4Mbits
Mounting
DIN-Rail; Wall-mount (optional)
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat. 5e, 6 cable EIA/TIA-568 100-ohm (100m)
Network Redundancy
STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2(<50ms)
Operating Temperature
EOT: -40° to 75°C
Optical Cable
SFP dependent
Overload Current Protection
Present
Power Connection
1 removable 6-contact terminal block
Power Consumption
7.5W
Power Saving
ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues
8
Processing Type
Store and Forward
QoS
802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact
24 VDC, 1A resistive
Reverse Polarity Protection
Present
Security
Port-based/Single/Multi 802.1X, ACL (Port/Rate Limiters/ACE), MAC-based Authentication, VLAN assignment, QoS Assignment, Private VLAN, Guest VLAN, RADIUS accounting, TACACS+, IP MAC binding, WEB/CLI authentication, Authorization (15 levels), Port Security Limit Control, ACLs for filtering/policing/port copy, IP source guard, ARP Inspection
Serial Console
1*RS232 in RJ45 connector with console cable, baud rate 115,200bps,8,N,1
SNMP MIBs & RFC Standards
RFC 2674 VLAN MIB;IEEE-802.1Q bridge MIB 2008;RFC 2819 RMON (group 1, 2, 3, and 9);RFC 1213 MIB II;RFC 1215 TRAPS;RFC 4188 bridge;RFC 4292 IP forwarding table;RFC 4293 management information base for the Internet Protocol (IP);RFC 5519 multicast group membership discovery;RFC 4668 RADIUS auth. client;RFC 4670 RADIUS accounting;RFC 3635 Ethernet-like;RFC 2863 interface group MIB using SMI v2;RFC 3636 802.3 MAU;RFC 4133 entity MIB v3;RFC 3411 SNMP management frameworks;RFC 3414 user-based security model for SNMPv3;RFC 3415 view-based access control model for SNMP;RFC 2613 SMON – PortCopy;IEEE 802.1 MSTP;IEEE 802.1AB LLDP-MIB (LLDP MIB included in a clause of the STD);IEEE 802.3ad (LACP MIB included in a clause of the STD);IEEE 802.1X (PAE MIB included in a clause of the STD);TIA 1057 LLDP-MED ( MIB is part of the STD)
Standards
IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3u 100Base-FX Fiber;IEEE 802.3x Flow Control;IEEE 802.1d STP (Spanning Tree Protocol);IEEE 802.1w RSTP (Rapid Spanning Tree Protocol);IEEE 802.1s MSTP (Multiple Spanning Tree Protocol);ITU-T G.8032 / Y.1344 ERPS v1/v2 (Ethernet Ring Protection Switch);IEEE 802.1Q Virtual Local Area Network (VLAN);IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization;IEEE 802.1X Network Authentication;IEEE 802.1AB Link Layer Discovery Protocol (LLDP);IEEE 802.3ad Link Aggregation (LACP);IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3u 100Base-FX Fiber;IEEE 802.3x Flow Control;IEEE 802.1d STP (Spanning Tree Protocol);IEEE 802.1w RSTP (Rapid Spanning Tree Protocol);IEEE 802.1s MSTP (Multiple Spanning Tree Protocol);ITU-T G.8032 / Y.1344 ERPS v1/v2 (Ethernet Ring Protection Switch);IEEE 802.1Q Virtual Local Area Network (VLAN);IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization;IEEE 802.1X Network Authentication;IEEE 802.1AB Link Layer Discovery Protocol (LLDP);IEEE 802.3ad Link Aggregation (LACP)
Storage Temperature
-40°~85°C
System Diagnostics
Dual Image Protection, PING, PING6
Transmission Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gig Ethernet Port
VLAN
4095
Warranty
5 Years
Wavelength
SFP dependent
Weight
Unit: 1.9lbs.; Shipping: 2.7 lbs.
