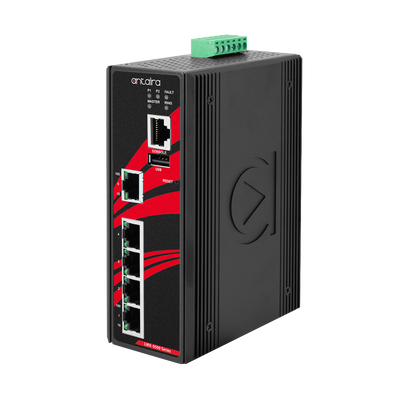

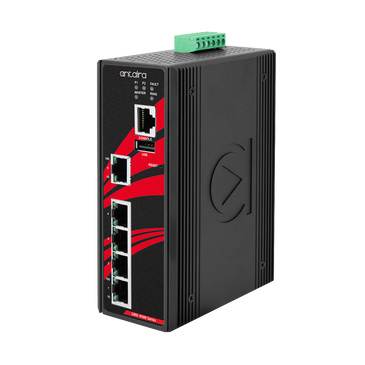

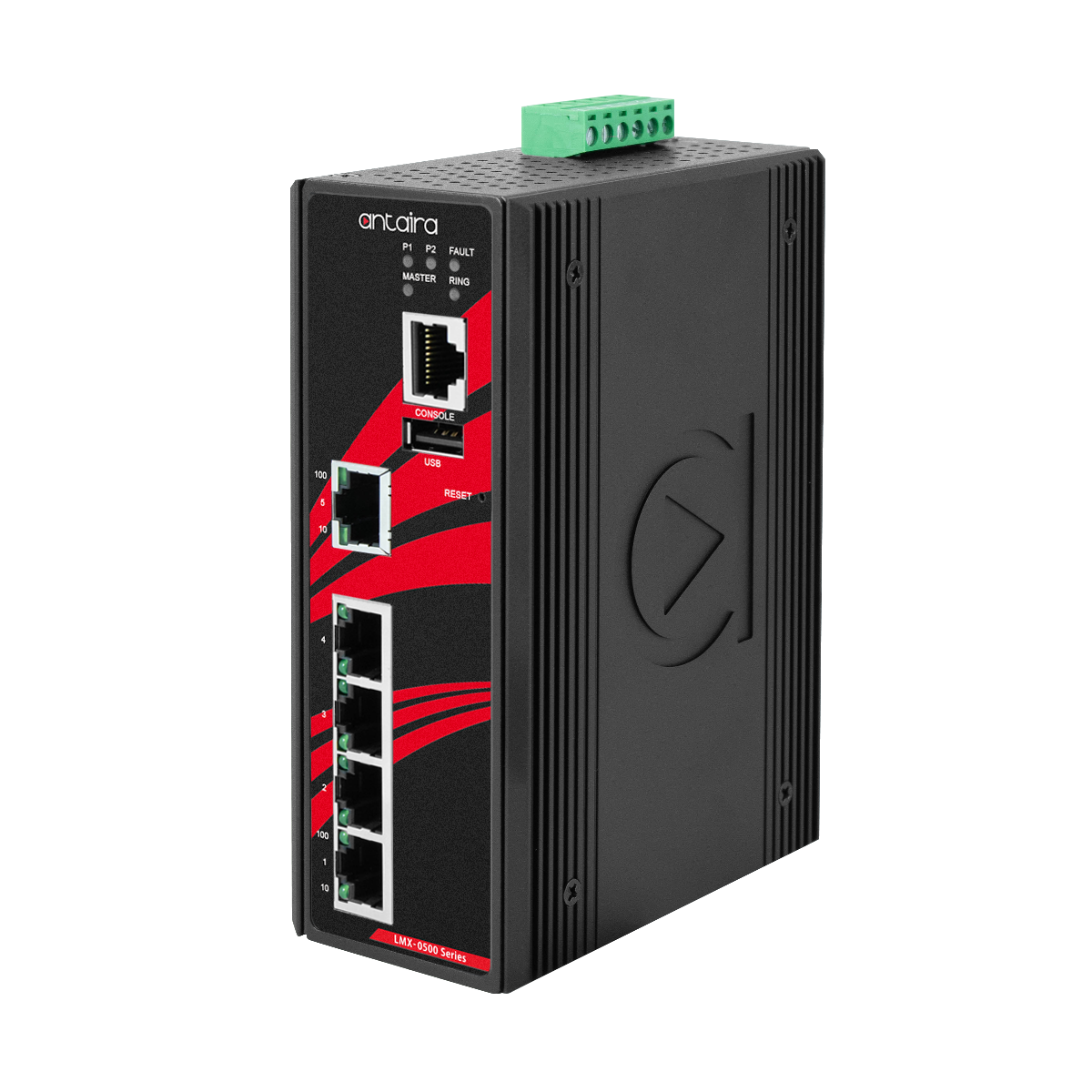

5-Port Industrial Light Layer 3 Managed Ethernet Switches w/5*10/100Tx - Version 2 hardware

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LMX-0500-V2

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Antaira LMX-0500-V2 Documents

Hardware Manual Product Datasheet Software Manual Firmware: Please register or login to download More Info

Overview

Details for LMX-0500-V2

5-Port Industrial Light Layer 3 Managed Ethernet Switches w/5*10/100Tx - Version 2 hardware

Antaira's LMX-0500-V2 series is a 5-port industrial managed Ethernet switch that is embedded with 5*10/100Tx fast Ethernet ports. This series is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software, and supports a user friendly web console interface for easy configuration.The LMX-0500-V2 series is IP30 rated, DIN-rail mountable, and has two wide operating temperature models for either a standard temperature range ( STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS, power/utility, water wastewater, and any other outdoor or harsh environment.Version 2 hardware is compatible with the latest Light Layer 3 firmware which permits static routes between VLANs.

Features

Supports 5*10/100Tx Fast Ethernet Ports
Network Redundancy Support: RSTP, and G.8032 ERPS (Recovery Time <50ms)
Configuration: Web Console, Telnet, CLI Command
Supports IGMP v1/v2, up to 256 groups
Supports QoS (IEEE802.1p) and CoS/ToS
Supports IEEE802.1Q VLAN, SNMP v1/v2c
System Warning Setting for Automatic Warning through E-Mail
Redundant Power Input Design – 12~48VDC
Housing: Metal IP 30 rated; DIN-Rail and Wall Mount Support
Operating Temperature - STD: -10 to 70C
5-Year Warranty

Included

1 - DC cable - 18 AWG & DC jack 5.5 x 2.1mm
1 - LMX-0500-V2
1 - Quick Installation Guide
1 - RJ45 dust cover set
1 - RJ45 to DB9 Serial Console cable
1 - Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5 to 95%, (non-condensing)
Back Plane: Non-blocking
Certifications: FCC, CE
Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions: 54 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A,;CE EN55022/EN61000-6-4 Class A
EMS: CE EN55024/EN61000-6-2 Class A,;IEC61000-4-2,3,4,5,6,8
Ethernet Port: 5*10/100Base-TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Fiber Port: NA
Flow Control: IEEE 802.3x flow control, back pressure flow control
Free Fall / Shock / Vibration: IEC60068-2-32/IEC60068-2-27/IEC60068-2-6
Green: RoHS Compliant
Housing: Metal, IP30 protection
IGMP: 1024
Input Voltage: 12~48VDC Redundant Input
Jumbo Frame: 9.6Kbytes
L2 Switching: Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching: DHCP option82, static routes
LED Indicators: System: Power 1, Power 2, Master, Ring, Fault;Ethernet Ports: Speed/Link/Active;Fixed Fiber: Link/Active
MAC Table Size: 8K
Management: IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone /Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console
Memory Buffer: 4Mbits
Mounting: DIN-Rail; Wall-mount (optional)
Network Cable: 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)
Network Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2(<50ms)
Operating Temperature: STD: -10° to 65°C
Optical Cable: NA
Overload Current Protection: Present
Power Connection: 1 removable 6-contact terminal block
Power Consumption: 7.5W
Power Saving: ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues: 8
Processing Type: Store and Forward
QoS: 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact: 24 VDC, 1A resistive
Reverse Polarity Protection: Present
Security: Port-based/Single/Multi 802.1X, ACL (Port/Rate Limiters/ACE), MAC-based Authentication, VLAN assignment, QoS Assignment, Private VLAN, Guest VLAN, RADIUS accounting, TACACS+, IP MAC binding, WEB/CLI authentication, Authorization (15 levels), Port Security Limit Control, ACLs for filtering/policing/port copy, IP source guard, ARP Inspection
Serial Console: 1*RS232 in RJ45 connector with console cable, baud rate 115,200bps,8,N,1
SNMP MIBs & RFC Standards: RFC 2674 VLAN MIB;IEEE-802.1Q bridge MIB 2008;RFC 2819 RMON (group 1, 2, 3, and 9);RFC 1213 MIB II;RFC 1215 TRAPS;RFC 4188 bridge;RFC 4292 IP forwarding table;RFC 4293 management information base for the Internet Protocol (IP);RFC 5519 multicast group membership discovery;RFC 4668 RADIUS auth. client;RFC 4670 RADIUS accounting;RFC 3635 Ethernet-like;RFC 2863 interface group MIB using SMI v2;RFC 3636 802.3 MAU;RFC 4133 entity MIB v3;RFC 3411 SNMP management frameworks;RFC 3414 user-based security model for SNMPv3;RFC 3415 view-based access control model for SNMP;RFC 2613 SMON – PortCopy;IEEE 802.1 MSTP;IEEE 802.1AB LLDP-MIB (LLDP MIB included in a clause of the STD);IEEE 802.3ad (LACP MIB included in a clause of the STD);IEEE 802.1X (PAE MIB included in a clause of the STD);TIA 1057 LLDP-MED ( MIB is part of the STD)
Standards: IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3u 100Base-FX Fiber;IEEE 802.3x Flow Control;IEEE 802.1d STP (Spanning Tree Protocol);IEEE 802.1w RSTP (Rapid Spanning Tree Protocol);IEEE 802.1s MSTP (Multiple Spanning Tree Protocol);ITU-T G.8032 / Y.1344 ERPS v1/v2 (Ethernet Ring Protection Switch);IEEE 802.1Q Virtual Local Area Network (VLAN);IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization;IEEE 802.1X Network Authentication;IEEE 802.1AB Link Layer Discovery Protocol (LLDP);IEEE 802.3ad Link Aggregation (LACP);IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3u 100Base-FX Fiber;IEEE 802.3x Flow Control;IEEE 802.1d STP (Spanning Tree Protocol);IEEE 802.1w RSTP (Rapid Spanning Tree Protocol);IEEE 802.1s MSTP (Multiple Spanning Tree Protocol);ITU-T G.8032 / Y.1344 ERPS v1/v2 (Ethernet Ring Protection Switch);IEEE 802.1Q Virtual Local Area Network (VLAN);IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization;IEEE 802.1X Network Authentication;IEEE 802.1AB Link Layer Discovery Protocol (LLDP);IEEE 802.3ad Link Aggregation (LACP)
Storage Temperature: -40°~85°C
System Diagnostics: Dual Image Protection, PING, PING6
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
VLAN: 4095
Warranty: 5 Years
Wavelength: NA
Weight: Unit: 1.9lbs.; Shipping: 2.7 lbs.
