LMP-C602G-SFP-bt-V2 | 6-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch | with 4*10/100/1000Tx (90W/Port) and 2*100/1000 SFP Slots; 48~55VDC Power Input | Antaira
6-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx (90W/Port) and 2*100/1000 SFP Slots; 48~55VDC Power Input

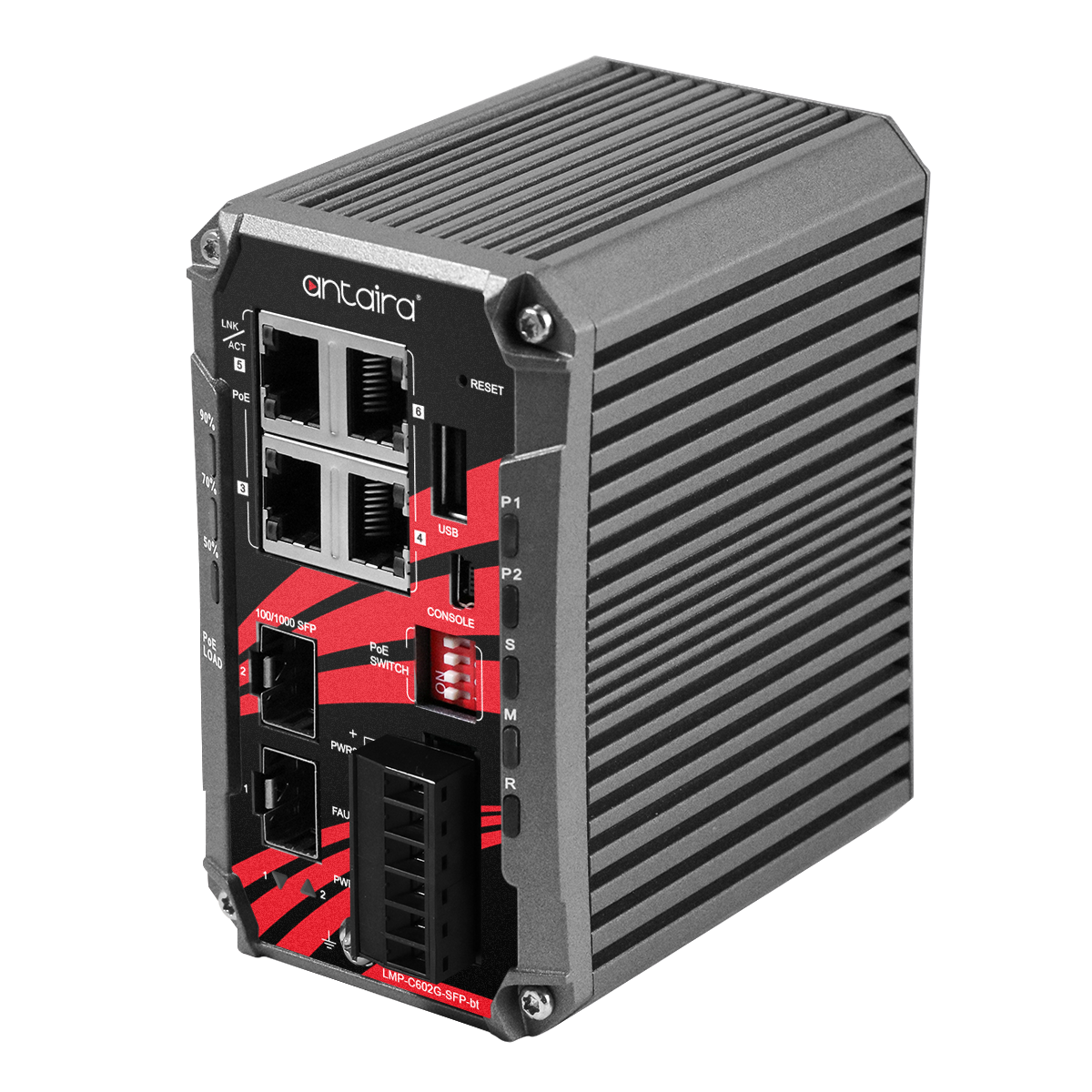

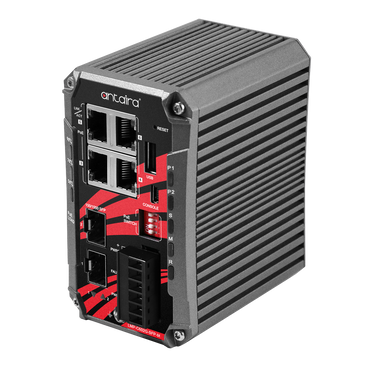

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMP-C602G-SFP-bt-V2
Overview Details for LMP-C602G-SFP-bt-V2
6-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch | with 4*10/100/1000Tx (90W/Port) and 2*100/1000 SFP Slots; 48~55VDC Power Input
Antaira Technologies’ LMP-C602G-SFP-bt-V2 is a 6-port industrial compact Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port and 2*100/1000Fx dual rate SFP slots for fiber connection. The LMP-C602G-SFP-bt-V2 is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-C602G-SFP-bt-V2 is IP40 rated and DIN-rail mountable. There are also a standard temperature range (STD: -10°C to 65°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. With a compact form and all connections facing the front of the Ethernet switch making it easy viewing of installations in a reserved space.Features
- Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 2*100/1000 SFP Slots
- Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
- Configuration: Web Console, Telnet, CLI Command
- Supports IGMP v1/v2/v3, up to 1024 Groups
- Supports QoS (IEEE802.1p) and CoS/ToS
- Supports IEEE802.1Q VLAN, SNMP v1/v2c
- Power Input: 48~55VDC in 6-Pin Terminal Block
- Reverse Polarity Protection
- IP40 Protection
- DIN-Rail or Wall Mountable
- Operating Temperature Range – STD: -10°C to 65°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- Dust cover set
- LMP-C602G-SFP-bt-V2
- Mini-USB B type male to DB9 RS232 female cable
- Quick Installation Guide
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Certifications
- FCC, CE
- Configuration
- Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
- Dimensions
- 64.9 x 110 x 89.8 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2 Class A,;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 4*10/100/1000Base-TX w/PoE++ (90W/Port);Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x flow control, back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP40 protection
- IGMP Group
- 1024
- Input Voltage
- 48~55VDC Redundant Input;*For IEEE 802.3bt application, power supply not less than 53V is recommended
- Jumbo Frame
- 9.6Kbytes
- L2 Switching
- Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMPv2 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
- L3 Switching
- DHCP option82, static routes
- LED Indicators
- System: Power 1, Power 2, Master, Ring, and Status;Ethernet Ports: Speed/Link/Active;PoE: On- connected to PD devices;SFP Port: Link/Active;PoE Load: 50%, 70%, 90%
- MAC Table Size
- 8K
- Memory Buffer
- 4Mbits
- Mounting
- DIN-Rail mounting, Wall mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Network Redundancy
- STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
- Operating Temperature
- STD: -10°C to 65°C
- Overload Current Protection
- Present
- Poe Pin Assignment
- V-, V-, V+, V+ for pin 1, 2, 3, 6;V+, V+, V-, V- for pin 4, 5, 7, 8;*Support Modes: Mode A, Mode B, 4-Pair Mode
- PoE Power Budget
- 240W
- Power Connection
- 1 removable 6-contact terminal block
- Power Saving
- ActiPHY, PerfectReach, IEEE 802.3az EEE power management
- Priority Queues
- 8
- Processing Type
- Store and Forward
- Protocols
- IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
- QoS
- 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- RS232 Serial Console
- 1*Mini USB type B connector
- SFP Port
- 2*100/1000 SFP Slots
- Shock
- IEC60068-2-27
- Storage Temperature
- -40°C to 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 12Gbps
- System / Diagnostics
- Dual Image Protection, PING, PING6
- System Power Consumption
- 10.8W
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- VLAN Groups
- 4095
- Warranty
- 5 Years
- Weight
- Unit: 2.08 lbs;Shipping: 2.69 lbs
