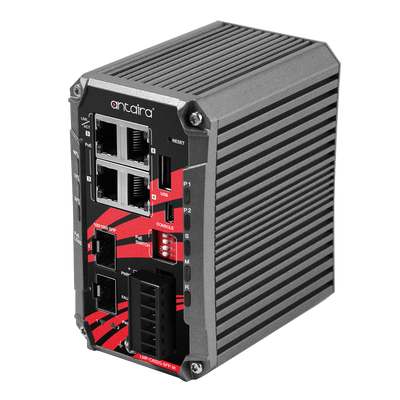

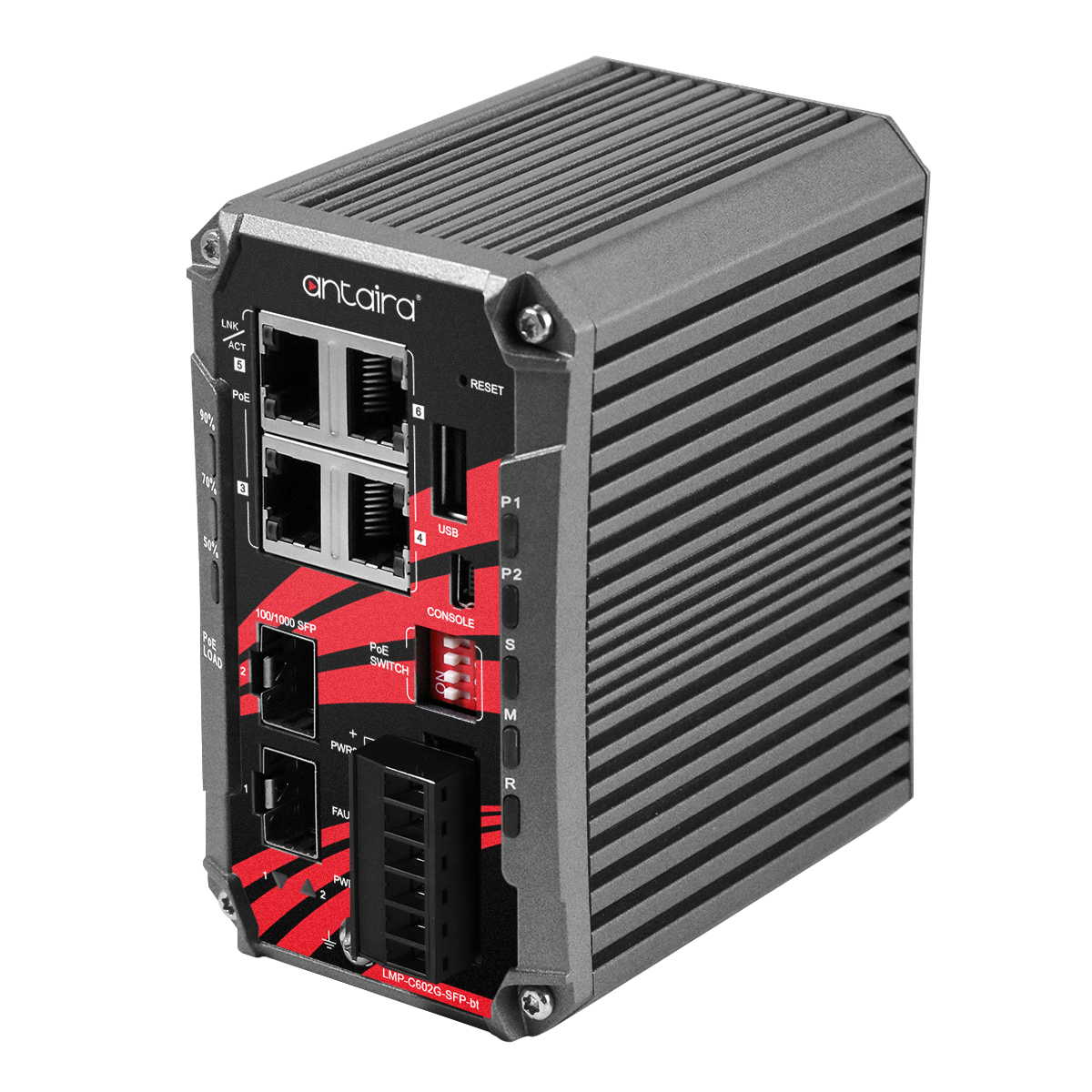

LMP-C602G-SFP-bt-T-V2 | 6-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch | with 4*10/100/1000Tx (90W/Port) and 2*100/1000 SFP Slots | EOT: -40°C to 75°C; 48~55VDC Power Input | Antaira

6-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch | with 4*10/100/1000Tx (90W/Port) and 2*100/1000 SFP Slots | EOT: -40°C to 75°C; 48~55VDC Power Input

Antaira Technologies’ LMP-C602G-SFP-bt-T-V2 is a 6-port industrial compact Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port and 2*100/1000Fx dual rate SFP slots for fiber connection. The LMP-C602G-SFP-bt-T-V2 is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-C602G-SFP-bt-T-V2 is IP40 rated and DIN-rail mountable. There are also an extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. With a compact form and all connections facing the front of the Ethernet switch making it easy viewing of installations in a reserved space.

Features

• Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 2*100/1000 SFP Slots
• Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI Command
• Supports IGMP v1/v2/v3, up to 1024 Groups
• Supports QoS (IEEE802.1p) and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c
• Power Input: 48~55VDC in 6-Pin Terminal Block
• Reverse Polarity Protection
• IP40 Protection
• DIN-Rail or Wall Mountable
• Operating Temperature Range – EOT: -40°C to 75°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• Dust cover set
• LMP-C602G-SFP-bt-T-V2
• Mini-USB B type male to DB9 RS232 female cable
• Quick Installation Guide
• Wall mounting bracket set with screws
